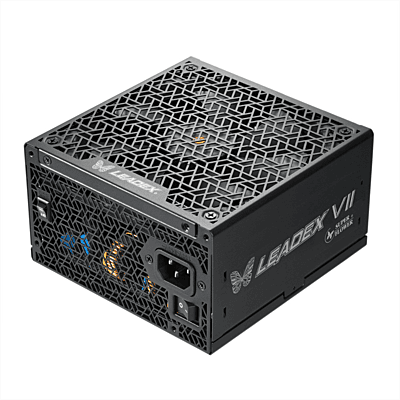

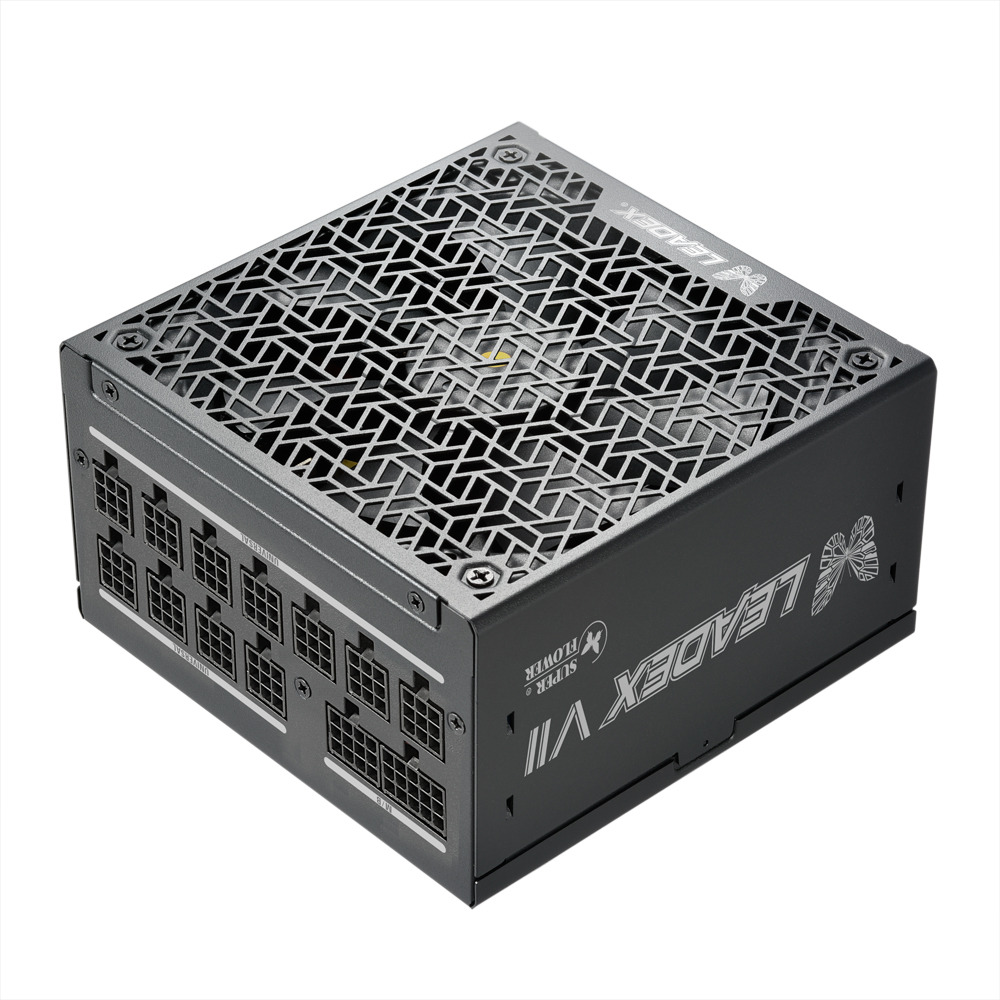

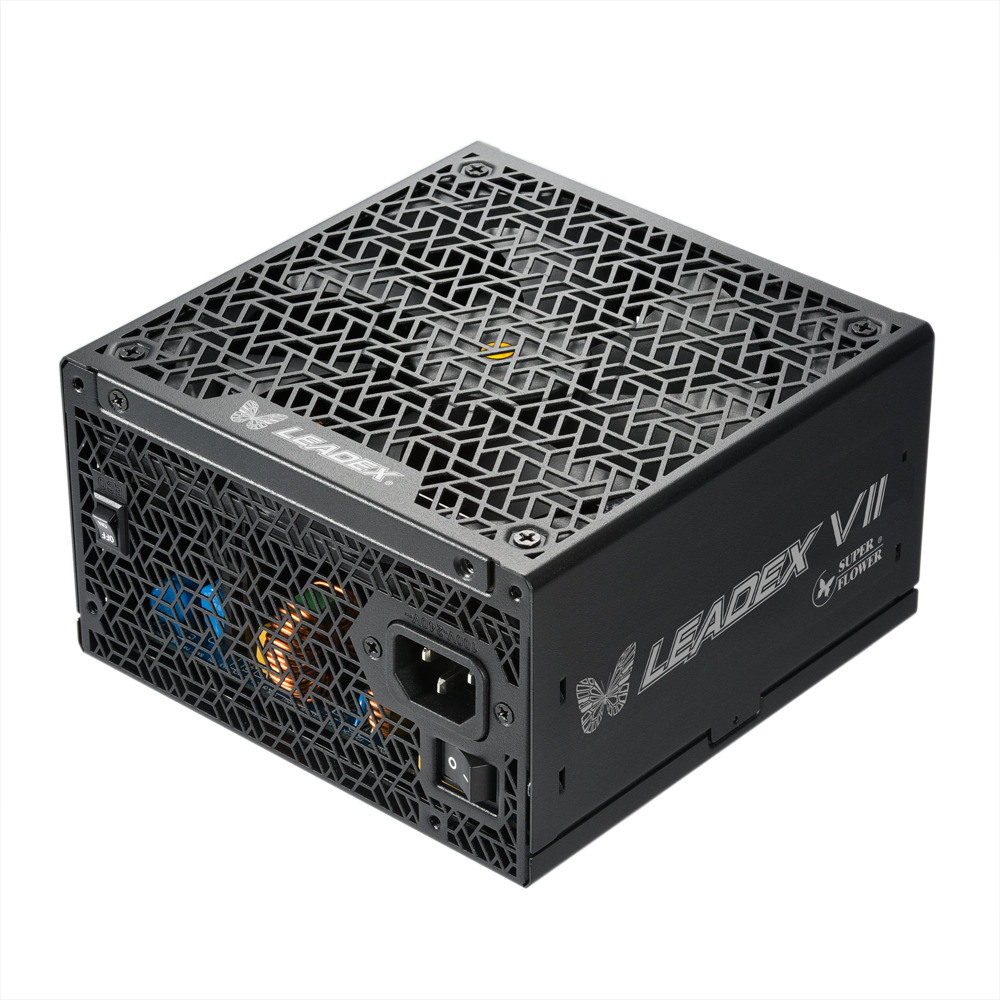

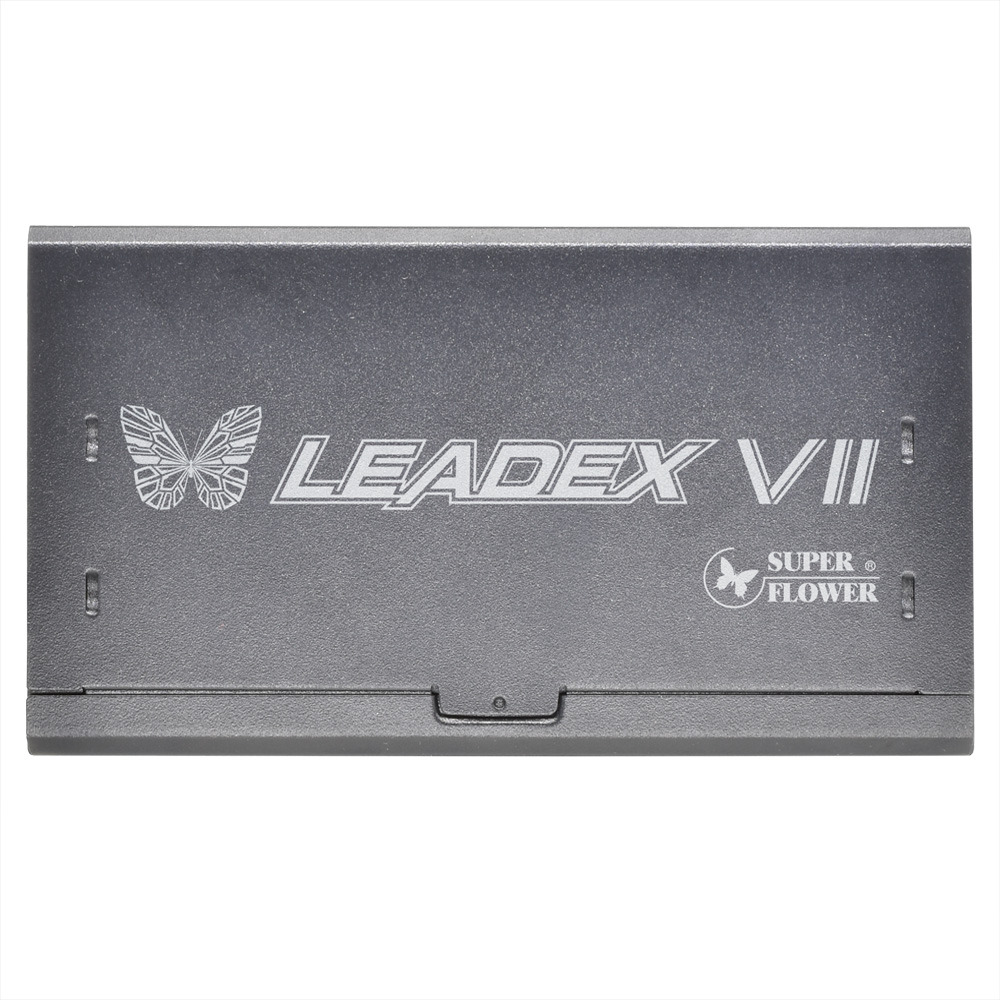

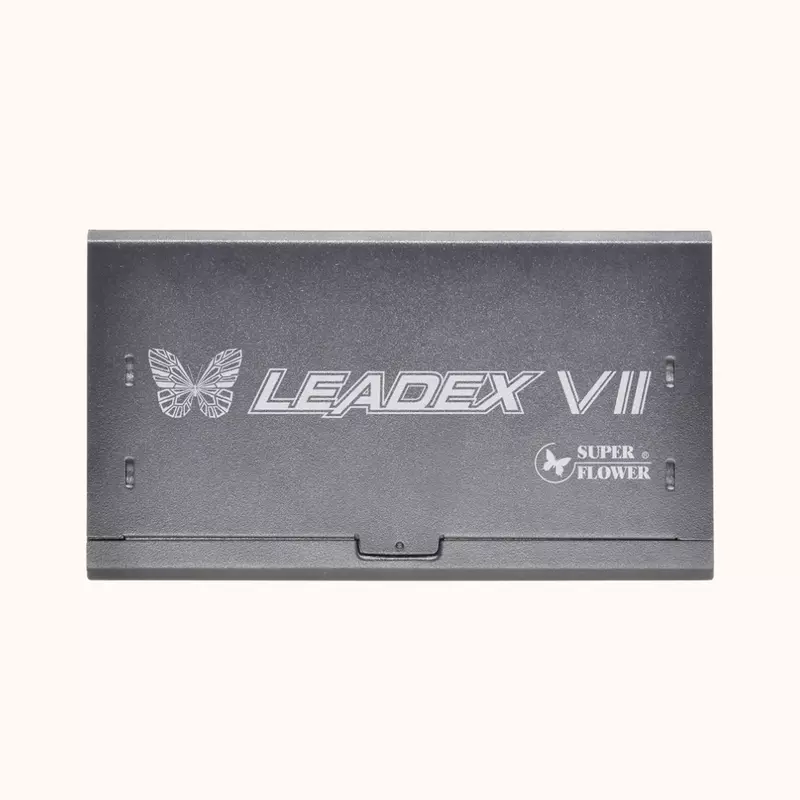

Super Flower LEADEX VII PLATINUM PRO 850W - SF-850F14XP
Specification | Details |
|---|---|
Type | Power Supply Unit (PSU) |
Wattage | 850 Watts |
Series | LEADEX VII PLATINUM PRO |
Certification | 80 PLUS® Platinum Certified |
Modularity | Fully Modular |
PCIe (6+2) Connectors | 3 Connectors |
SATA Connectors | 3 Cables |
Peripheral (4-Pin Molex) | 1 Cable |
Specification | Details |
|---|---|
Model Number | SF-850F14XP |
Rated Efficiency | 90% @ 20% load, 92% @ 50% load, 89% @ 100% load (115V Internal Platinum) |
Cybernetics Certification | Platinum Efficiency (115V & 230V) |
Intel Design Compliance | EPS 2.92 & ATX 3.1 Compliant |
AC Input / Frequency | 100V–240V |
Cooling Fan | 140mm Fluid Dynamic Bearing (FDB) Fan |
Dimensions (L × W × H) | 150mm × 150mm × 86mm |
Thermal Tolerance | Passed 50°C Hot Testing |
Protection Features | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
Safety Certifications | cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC |
General
- Wattage850 Watt
- ModularFully Modular
- Connector TypeATX
- PCIe Connector (6+2)3
- SATA Connector3
- Peripheral (4-Pin)1
