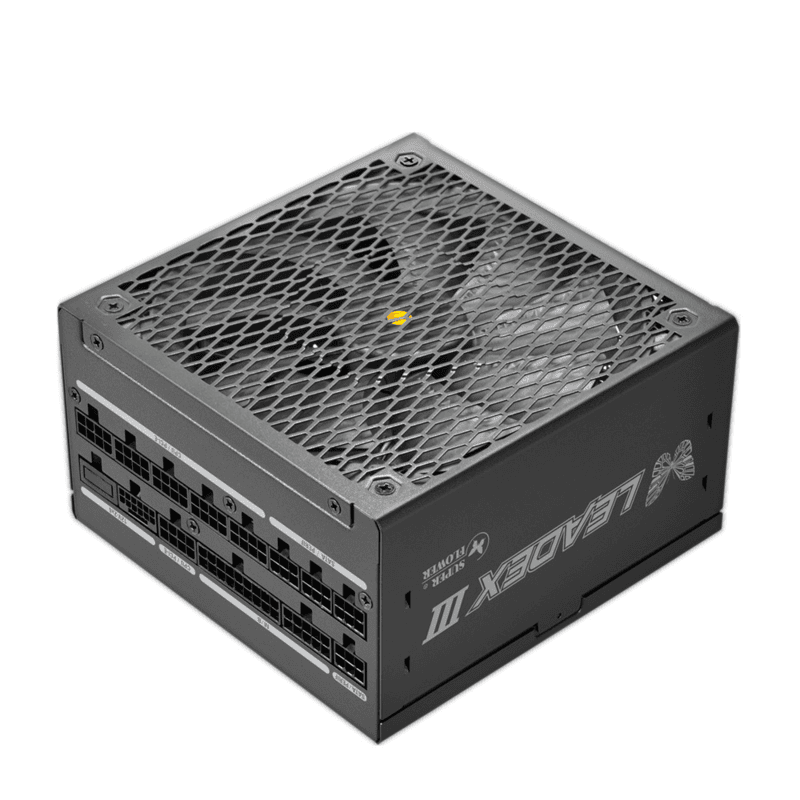

Super Flower Leadex III GOLD-1000W - SF-1000F14GL(GE)
Specification | Details |
|---|---|
Model Number | SF-1000F14GE |
Rated Efficiency | 87% @ 20% load, 90% @ 50% load, 87% @ 100% load (115V Internal Gold) |
Efficiency Certifications | 80 PLUS® Gold Certified, Cybernetics Gold (115V & 230V) |
Intel Design Compliance | EPS 2.92 & ATX 3.1 compliant |
Input Voltage / Frequency | 100V–240V AC |
Cooling Fan | 140mm Fluid Dynamic Bearing (FDB) Fan |
Physical Dimensions | 150mm (L) × 150mm (W) × 86mm (H) |
Protection Features | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
Operating Temperature | Passed Hot Test at 50°C |
Safety Certifications | cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC |
Feature | Details |
|---|---|
Cooling Fan | 140mm F.D.B Fan with 9-blade design for high airflow, stable cooling, and low noise (dBA). |
Copper Shaft Bearing | Ensures greater stability, longer lifespan, and enhanced heat dissipation. |
Buckle Connector | Patented Buckle (20+4) Pin Connector (Patent No.: Taiwan M563575; China 7566010). |
Gaming-Ready Design | Stable DC output and improved transient response for +12V/+5V/+3.3V rails. |
Low Ripple Output | Delivers low voltage ripple on all outputs, ensuring hardware protection. |
ECO Mode | Auto & ECO fan control with high efficiency across all rails, including 5VSB. |
Fully Modular Cables | 100% modular design with ultra-flexible ribbon cables for clean cable management. |
80 PLUS® Gold Certified | Energy efficiency: 87% @ 20%, 90% @ 50%, 87% @ 100% load. |
Japanese Main Capacitor | High-quality components for better reliability and durability. |
Full Range Voltage | Supports 100V–240V input with Active PFC. |
ATX 12V v3.1 / EPS 12V v2.92 | Compliant with latest power supply specifications. |
General
- Wattage1000 Watt
- ModularFully Modular
- Connector TypeATX
