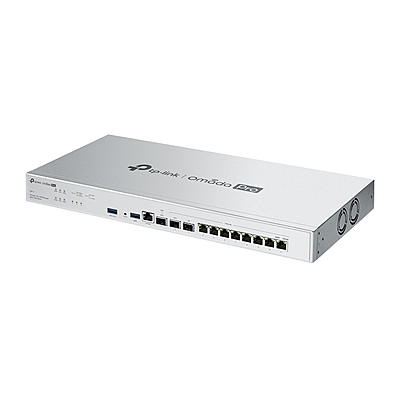

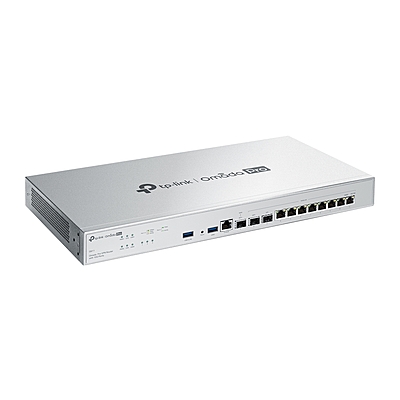

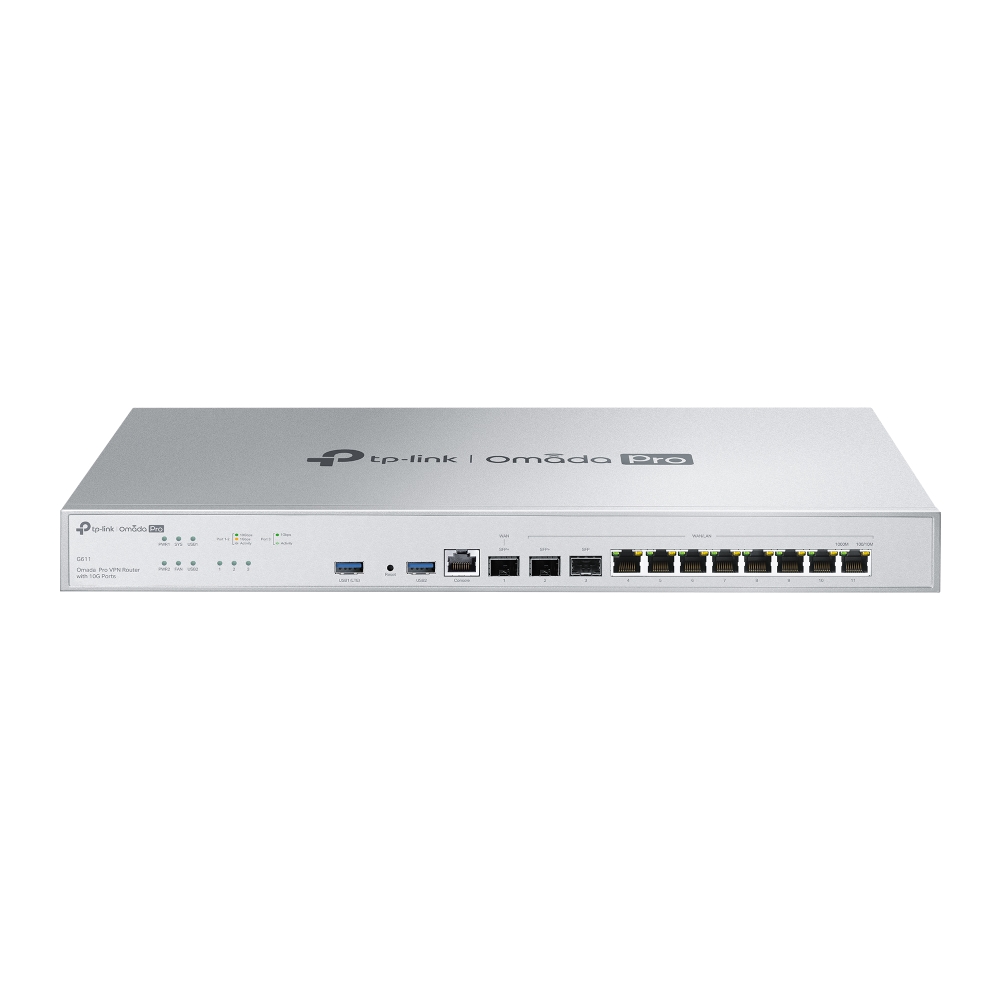

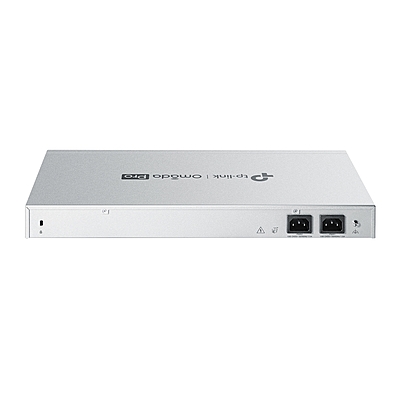

TP-Link Omada Pro VPN Router with 10G Ports-G611
Feature | Details |
|---|---|
Omada SDN Integration | Zero-Touch Provisioning, Centralized Cloud Management, Intelligent Monitoring |
Management | Cloud access and Omada app for easy centralized control |
10GE SFP+ Ports | 2× 10G SFP+ ports (1× WAN, 1× WAN/LAN) for high-speed uplink |
WAN Flexibility | Up to 10 WAN ports with load balancing for multi-line broadband |
Advanced VPN & Security | Supports SSL, IPSec, PPTP, WireGuard, L2TP, OpenVPN, and robust firewall |
Category | Main Key Points |
|---|---|
Security | IDS/IPS, Access Control, Web/URL Filtering, ARP Inspection, Flood & Ping Defense |
Interfaces | 2× 10G SFP+, 1× Gigabit SFP, 8× Gigabit RJ45, USB3.0 |
Power Supply | Dual Redundant (100–240V AC), Max Power: 26.36W |
Hardware | Flash: 260MB, RAM: 4GB DDR4, Rack Mountable, Steel Enclosure, 4kV Surge Protection |
Performance | 2.3M Sessions, 20K New Sessions/sec, NAT: ~9440 Mbps, SSL VPN: 4486 Mbps |
VPN Capacity | SSL VPN: 500 Tunnels, IPsec: 300, PPTP/L2TP: 300 (shared), OpenVPN: 110 |
VPN Speeds | IPsec: ~3100 Mbps, OpenVPN: 4424 Mbps, SSL: 4486 Mbps, L2TP/PPTP: ~10 Gbps (Unenc) |
Advanced Routing | Static, Policy Routing, Load Balance, Link Backup, Intelligent Routing |
NAT Features | One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, ALG, DMZ |
IPv6 Support | IPv6 WAN, 6to4 Tunnel, Pass-Through |
DHCP Features | DHCP Server/Client, Address Reservation, Multi-IP, Multi-Net |
Bandwidth Control | IP/Port-Based, Guaranteed & Limited Bandwidth |
Authentication | Web Portal, Voucher, SMS, Radius, LDAP |
Management | Omada App, Cloud & Software Controller, SNMP, CLI, Syslog, ZTP |
General
- Uses For ProductBusiness
- Connectivity TypeWired
