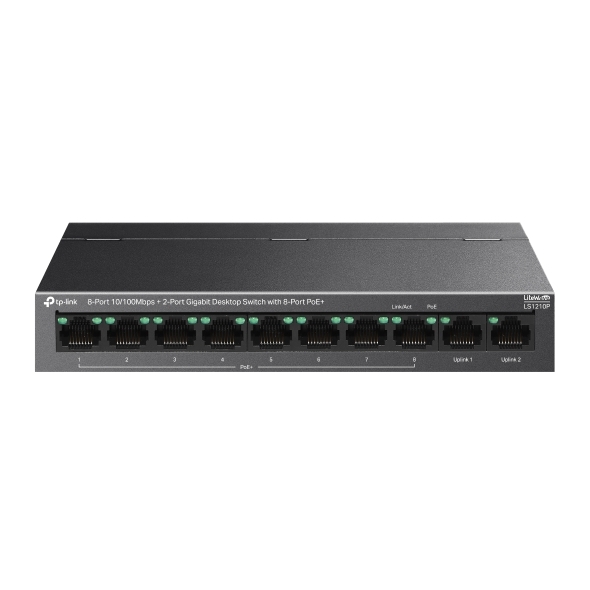

TP-Link 8-Port 10/100Mbps+2-Port Gigabit Desktop Switch with 8-Port PoE+(LS1210P)
Key Point | Description |
|---|---|
PoE+ Ports | 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port. |
Gigabit Ports | 2× Gigabit non-PoE ports for high-speed connections. |
PoE Budget | 96 W total PoE budget for powering devices. |
Extend Mode | Up to 250 m (820 ft) data and power transmission range in Extend Mode. |
Silent Operation | Fanless design for silent operation, reducing power consumption. |
Category | Main Key Points |
|---|---|
Hardware Features | Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab |
Interface | 8× 10/100 Mbps PoE+ RJ45 Ports + 2× 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/MDI/MDIX |
Network Media | 10BASE-T (Max 100m), 100BASE-TX (Max 100m), 1000BASE-T (Max 100m), UTP Category 3, 4, 5, 5e or above cables |
Power Supply | External Power Adapter (Input: 220~240V, 50/60Hz, Output: 53.5 VDC / 1.92 A) |
LED | Power, Link/Act, PoE Status |
Packet Forwarding Rate | 4.1664 Mpps |
PoE Ports (RJ45) | Ports 1-8: Standard 802.3 af/at compliant, PoE Supply: 96 W |
Dimensions | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
Max. Power Consumption | 99.52 W |
Max Heat Dissipation | 338.368 BTU/h |
Switching Capacity | 5.6 Gbps |
Packet Buffer Memory | 2 Mbit |
Advanced Features | Extend Mode (Ports 1-8), Isolation Mode (Ports 1-8), PoE Auto Recovery (Ports 1-8) |
Jumbo Frame | 2 KB |
Software Features | MAC Address Table: 2K, Transmission Method: Store-And-Forward |
General
- TypesUnManaged
- Switching Capacity5.6 Gbit/s
- Port TypeRJ45
- No. Of Ethernet Ports2
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingNo
