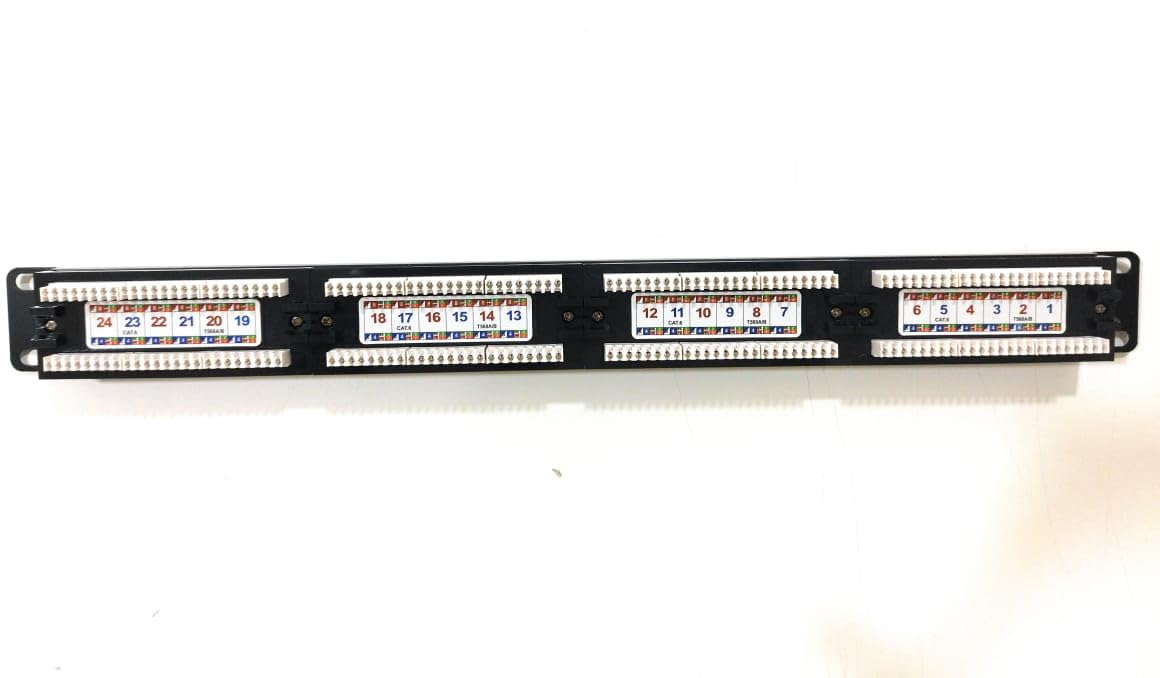

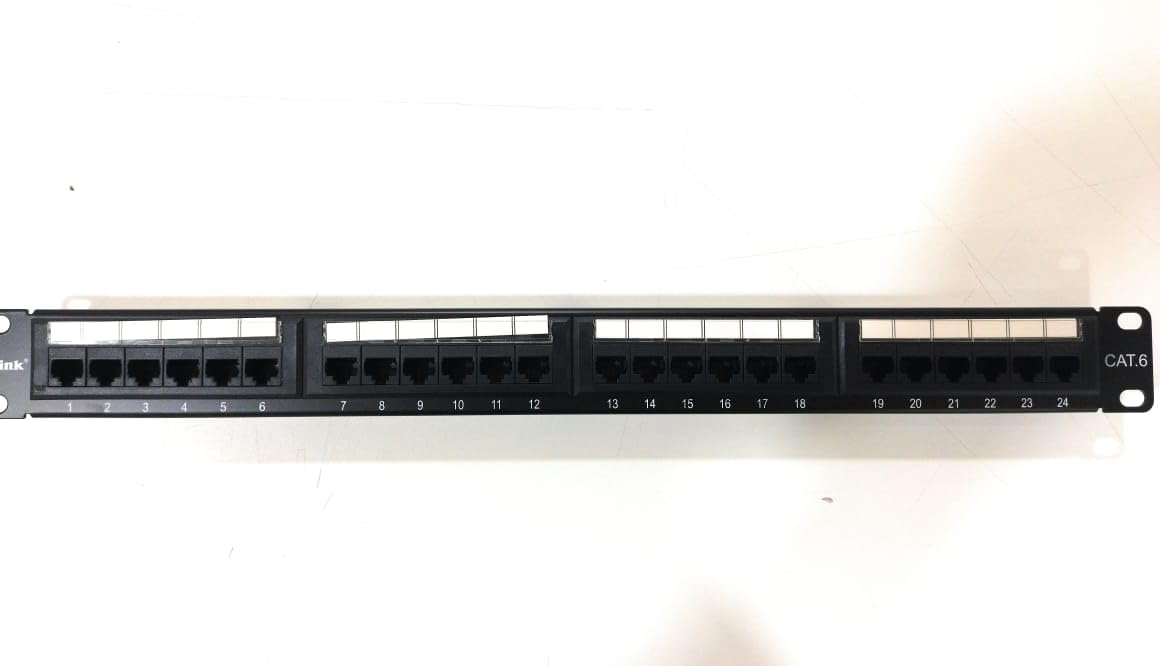

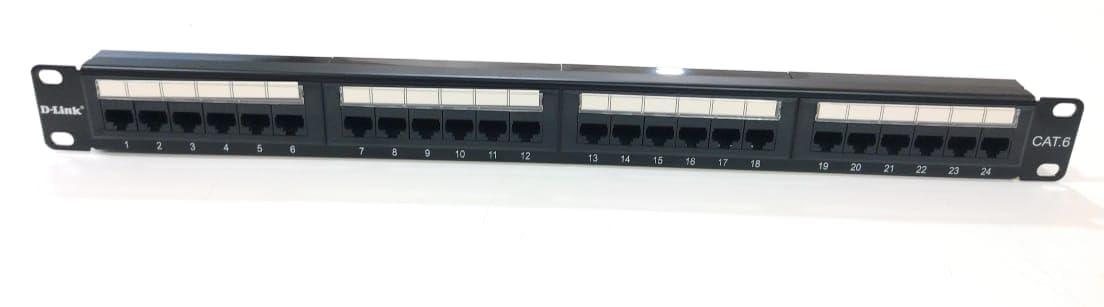

DLINK CAT 6 24 PORT LOADED JACK PANEL - โ€ŽNKJ-C6WHI1B21

Rs. 2,630.00 Rs. 4,840.00
Out of stock

The DLINK NKJ-C6WHI1B21 is a Cat6 UTP keystone jack, white-colored, designed for use in high-density patch panels. It supports 8P8C RJ45 connections and is compatible with 22-26 AWG stranded and solid cables, suitable for terminating 4 twisted pairs with universal wiring labels for T568A and T568B standards.

Product Details
Specifications

This DLINK Cat6 jack panel module (NKJ-C6WHI1B21) provides a professional-grade solution for terminating and connecting Cat6 Ethernet cables in network patch panels and faceplates. The keystone jack supports punch-down termination using typical 110 and Krone tools, making installation easy and efficient. It features a durable, high-quality RJ45 connector with phosphor bronze contacts plated with 50 micro-inches of gold to ensure low contact resistance and long-lasting durability.

The housing is made from robust ABS+PC material with UL 94V-0 flammability rating, and the contact bracket is transparent PC with UL 94V-2 rating, ensuring good insulation and fire safety. The jack supports 180-degree contact rotation and maintains proper retention against plug insertion. It complies fully with the ANSI/TIA/EIA 568 C.2 Cat6 performance standards, allowing reliable high-speed transmission up to 1 Gbps or more.

The inbuilt color-coded wiring labels support both T568A and T568B wiring schemes for flexible network configurations. The jack is designed to fit high-density keystone panels and network racks, optimizing space usage in data centers or network closets. It operates efficiently within a temperature range of -10ยฐC to 60ยฐC and delivers consistent performance for long-term network reliability.

General
  • Ports Quantity
    24
