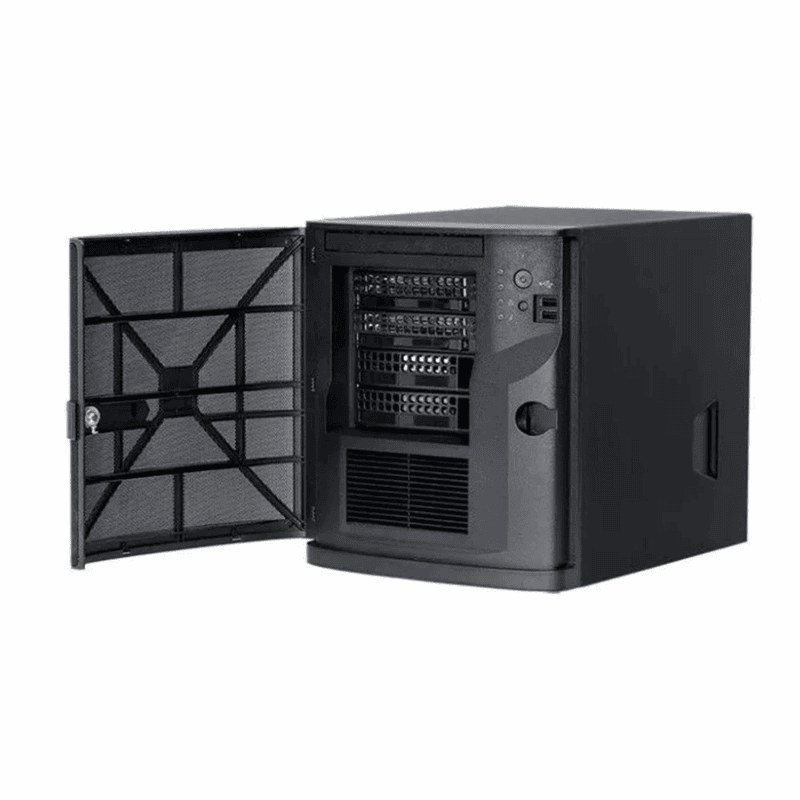

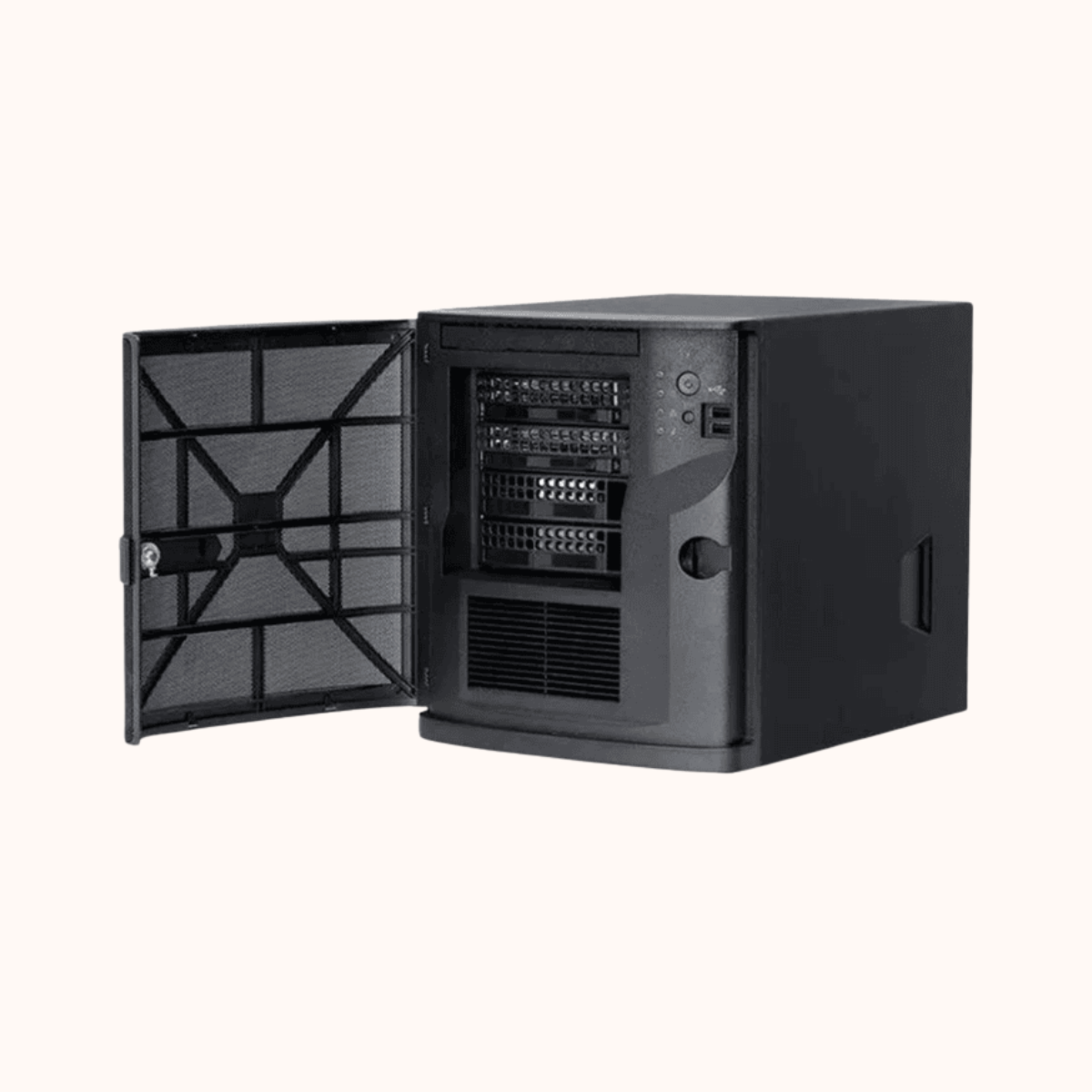

Bosch NVR 32 channels IP all in one 4000 BVMS
Feature | Details |
|---|---|
Model / Series | Bosch DIVAR IP All‑in‑One 4000 (e.g., DIP‑4420IG, DIP‑4428IG, DIP‑442IIG) |
Channels Supported | Up to 32 IP camera channels (includes 8 pre‑licensed, expandable to 32) |
Storage Capacity | Supports up to 36 TB (2 × 18 TB 3.5″ HDD bays) |
Recording Bandwidth | Up to 250 Mbps total throughput |
Video Resolution | Supports HD/UHD up to 4K; real-time transcoding of up to four 4K @ 30 fps streams |
Dimensions | 240 × 210 × 281 mm (9.5″ × 8.3″ × 11″) |
Form Factor | 2‑bay mini‑tower, front‑swappable SATA 3 drives |
Interfaces | – Networking: 2 × Gigabit Ethernet (teamed) |
Audio I/O | 1 × mic‑in (3.5 mm), 1 × line‑out (3.5 mm) |
Operating System | Windows Server IoT 2022 Storage Workgroup |
Software Included | Bosch Video Management System (BVMS) and Video Recording Manager (VRM); DIVAR IP System Manager for setup & upgrades |
Operation Modes | BVMS (full VMS), VRM-only (recording), or iSCSI storage expansion |
Remote Access | BVMS Operator Client, Video Security App, SNMP monitoring, Bosch Remote Portal support |
Certifications & Compliance | CB, UL, CE, UKCA, FCC, VCCI, RCM, KC, BSMI, RoHS, WEEE, China RoHS, NDAA, TAA, IEC 62443 |
Temperature Range | Operating: 0 °C to 40 °C |
Power Requirements | 100–240 VAC; power consumption approx. 350 W |
Memory | 8 GB DDR4‑2666 (1 × SODIMM) |
General
- Product TypeNVR
- Channels Quantity32 Channels
