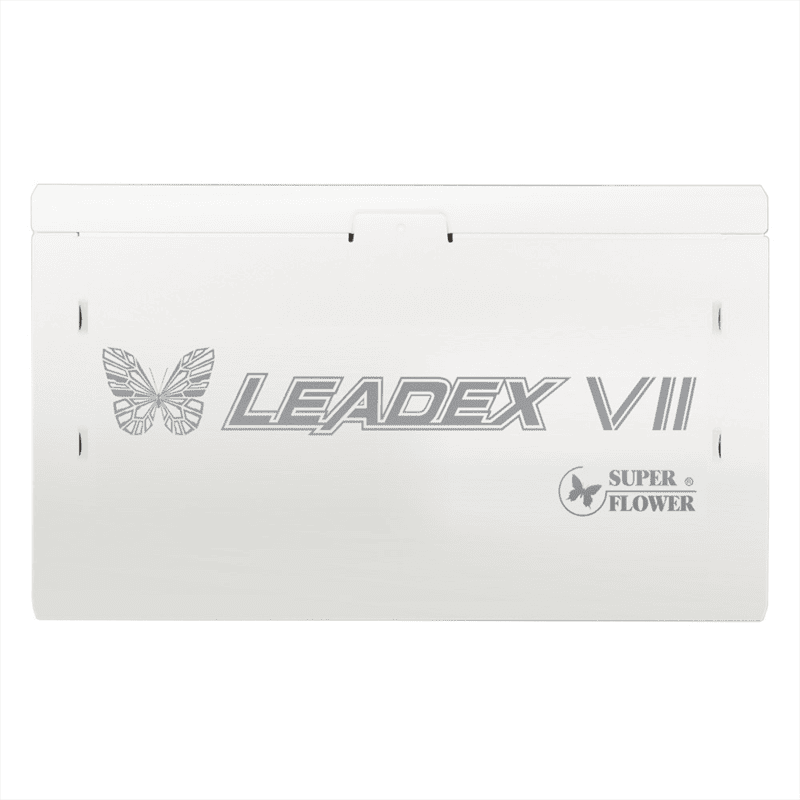

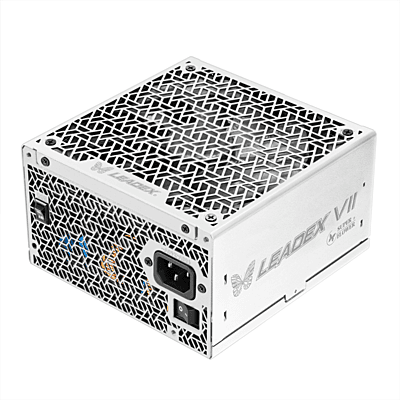

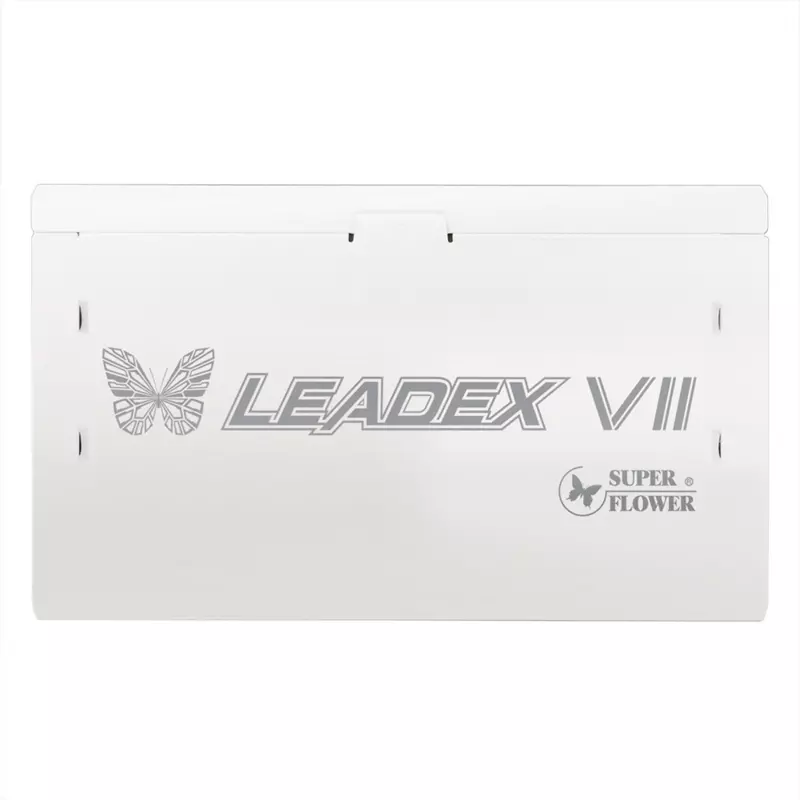

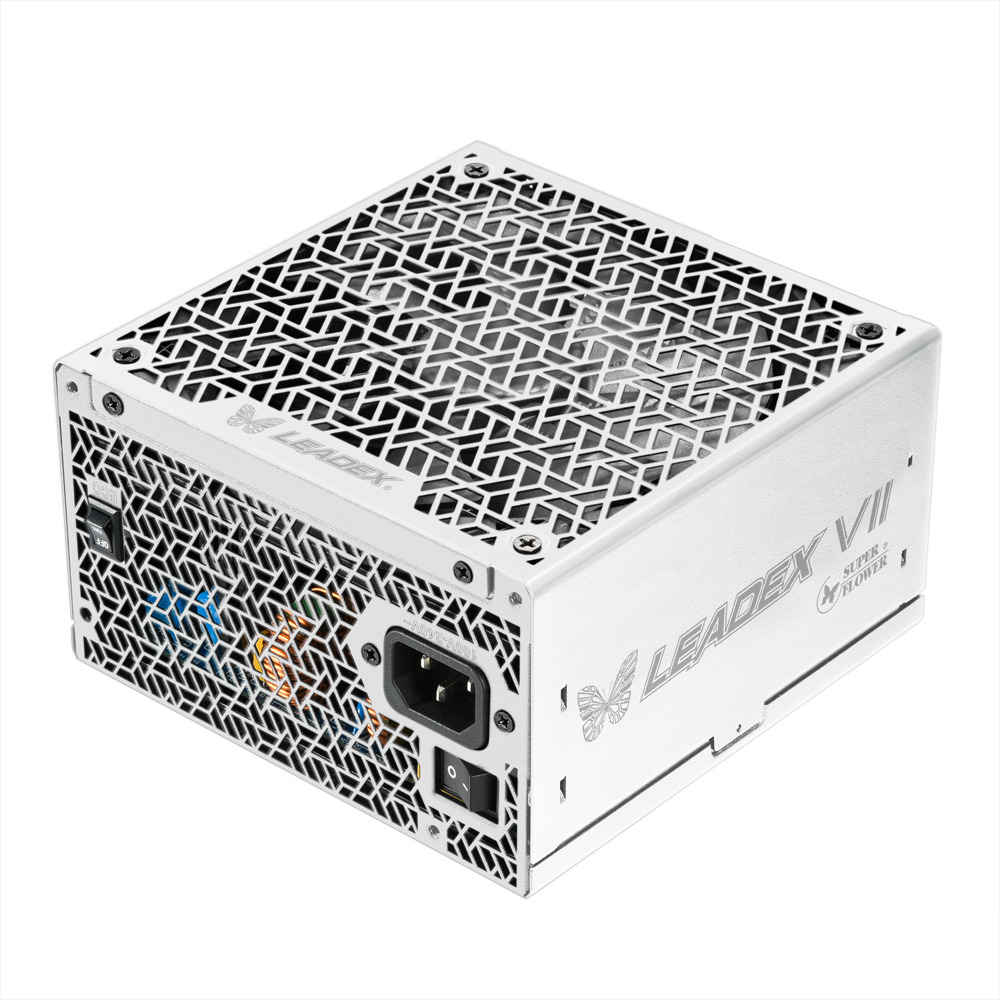

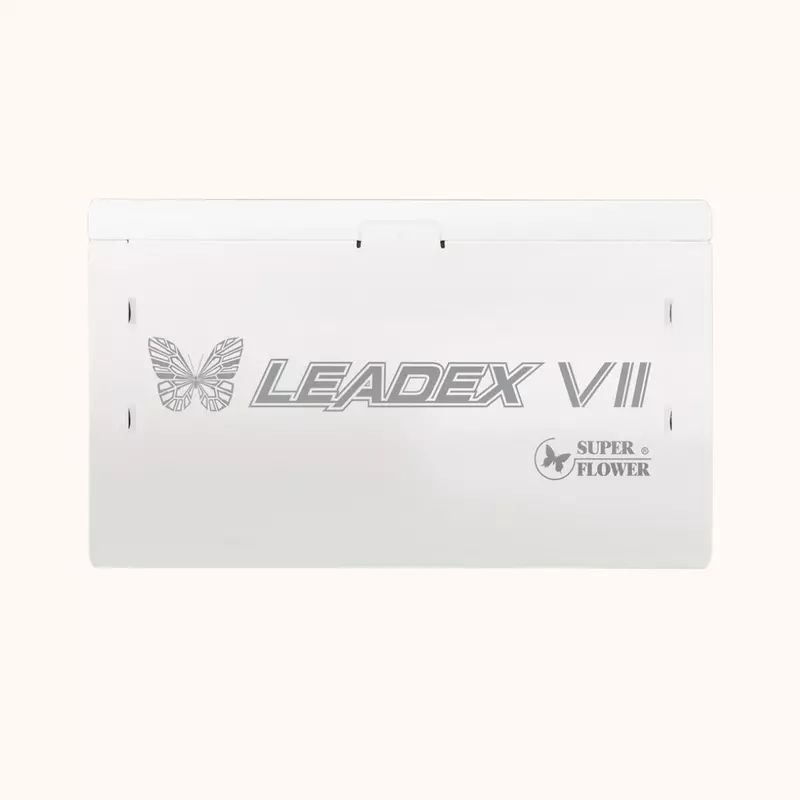

Super Flower Leadex VII GOLD-1000W (white) - SF-1000F14XG(WH)
Specification | Details |
|---|
Model Number | SF-1000F14XG-WH |
Rated Efficiency | 87% @ 20% load, 90% @ 50% load, 87% @ 100% load (115V Internal Gold) |
Cybernetics Certification | Platinum Efficiency (115V & 230V) |
Intel Design Compliance | Complies with EPS 2.92 & ATX 3.1 Power Design Guide |
AC Input / Frequency | 100V–240V |

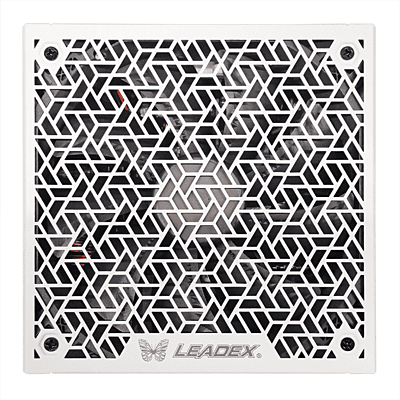

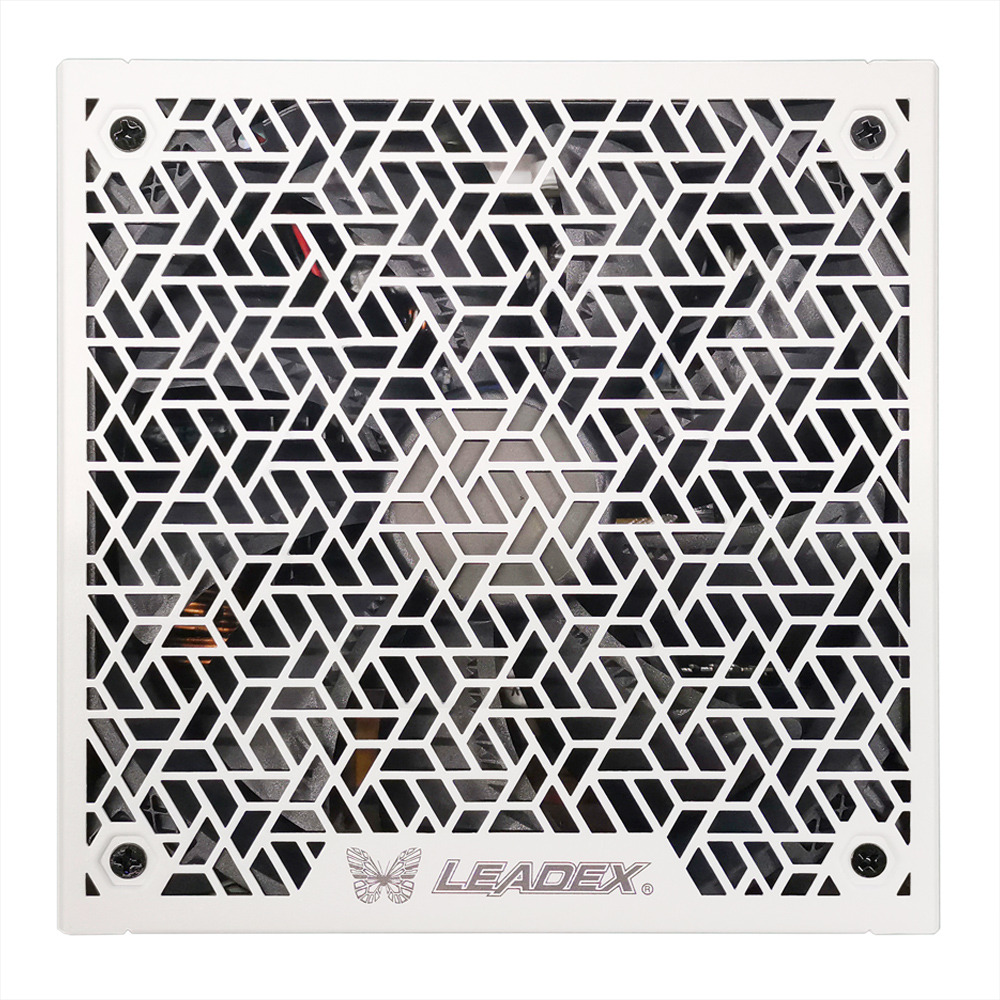

Cooling Fan | 140mm Fluid Dynamic Bearing (FDB) Fan |
Dimensions (L × W × H) | 150mm × 150mm × 86mm |
Thermal Endurance | Passed high-temp stress test at 50°C |
Protection Features | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP |
Safety Certifications | cTÜVus, TÜV, CB, CE, FCC, UKCA, RCM, BSMI, RoHS, KCC, EAC, CCC |
Main Cable (20+4 Pin) | 1 × 600mm |
CPU Cable (8 (4+4) Pin) | 2 × 700mm |
PCIe 6+2 Pin Cable | 3 × 700mm |
SATA Cable (4 SATA Connectors) | 3 × (550 + 130 + 130 + 130mm) |
Molex Cable (4 Connectors) | 1 × (550 + 150 + 150 + 150mm) |
PCIe 16 Pin Cable | 1 × 700mm |
Feature | Details |
|---|
Connector Innovation | Patented Buckle (20+4) Pin Connector (Patent No.: Taiwan M563575; China 7566010). |
Power Stability for Gaming | Stable DC output on +12V / +5V / +3.3V with improved transient response and low ripple. |
ECO Smart Fan System | Auto & ECO fan control with high rail efficiency including 5VSB standby rail. |

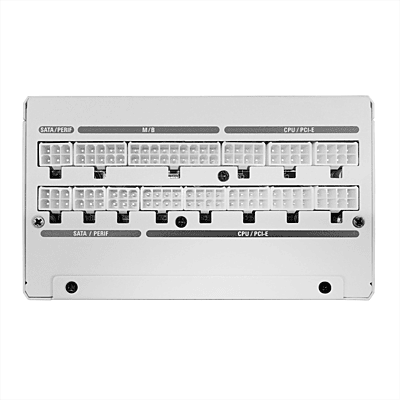

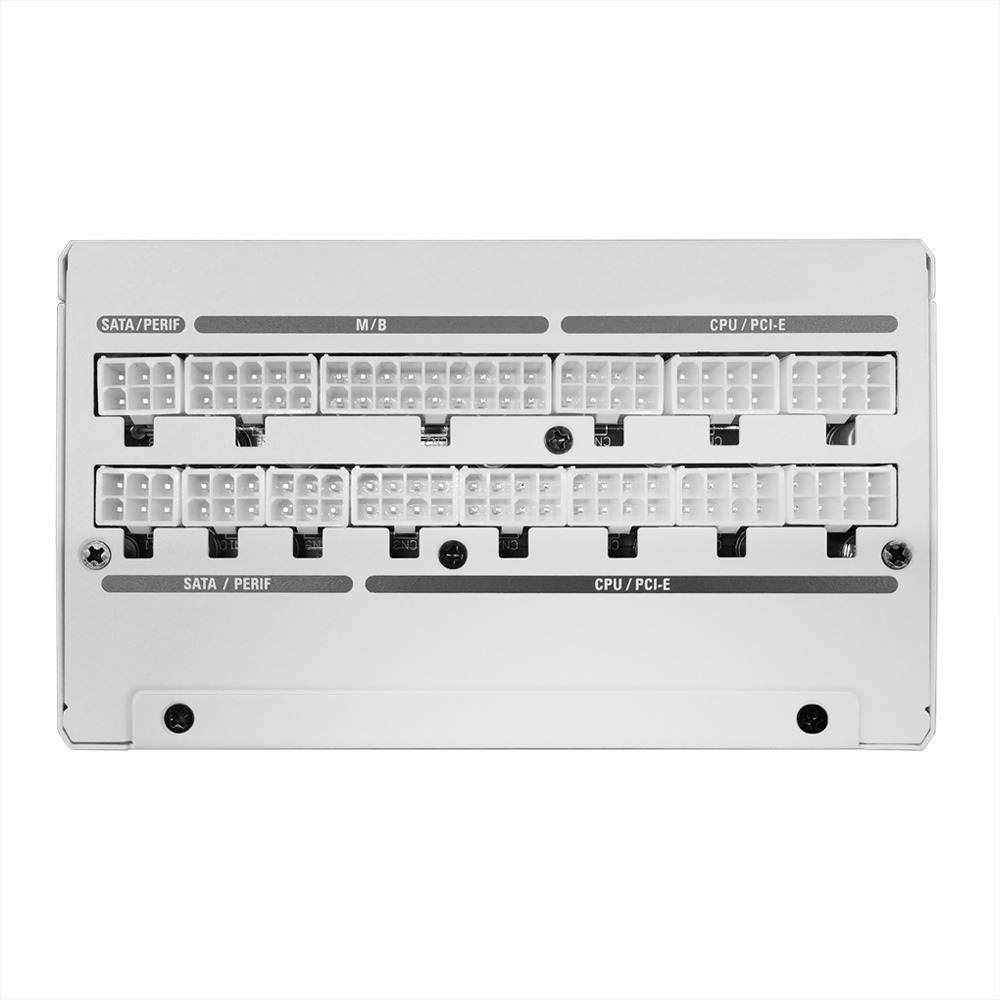

Modular Cable Management | 100% Fully Modular Design with ultra-flexible ribbon cables for neat and easy setup. |
Efficiency Rating | 80 PLUS® Gold Certified – 87% @ 20%, 90% @ 50%, 87% @ 100% load. |
High-End Capacitors | 100% Japanese 105°C Capacitors (Main board & modular back panel). |
Voltage Compatibility | Full range input (100V–240V) with Active PFC and auto voltage detection. |
Power Design Standards | Complies with ATX 12V v3.0 and EPS 12V v2.92 specifications. |
Energy Compliance | Meets Energy Star and EuP (Energy Using Products) regulatory standards. |
Comprehensive Safety Protections | OVP, OCP, OPP, SCP, UVP, OTP, NLO, SIP protections for complete system security. |
Platform Compatibility | Supports all Intel / AMD multi-core CPUs; ATX / BTX motherboard ready (Haswell compatible). |
General
- Wattage1000 Watt
- ModularFully Modular
- Connector TypeATX
