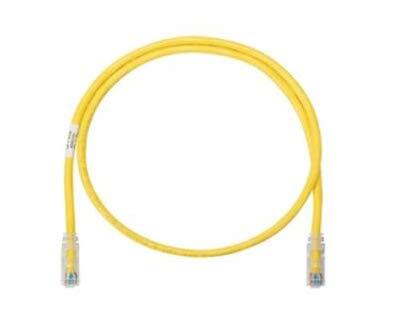

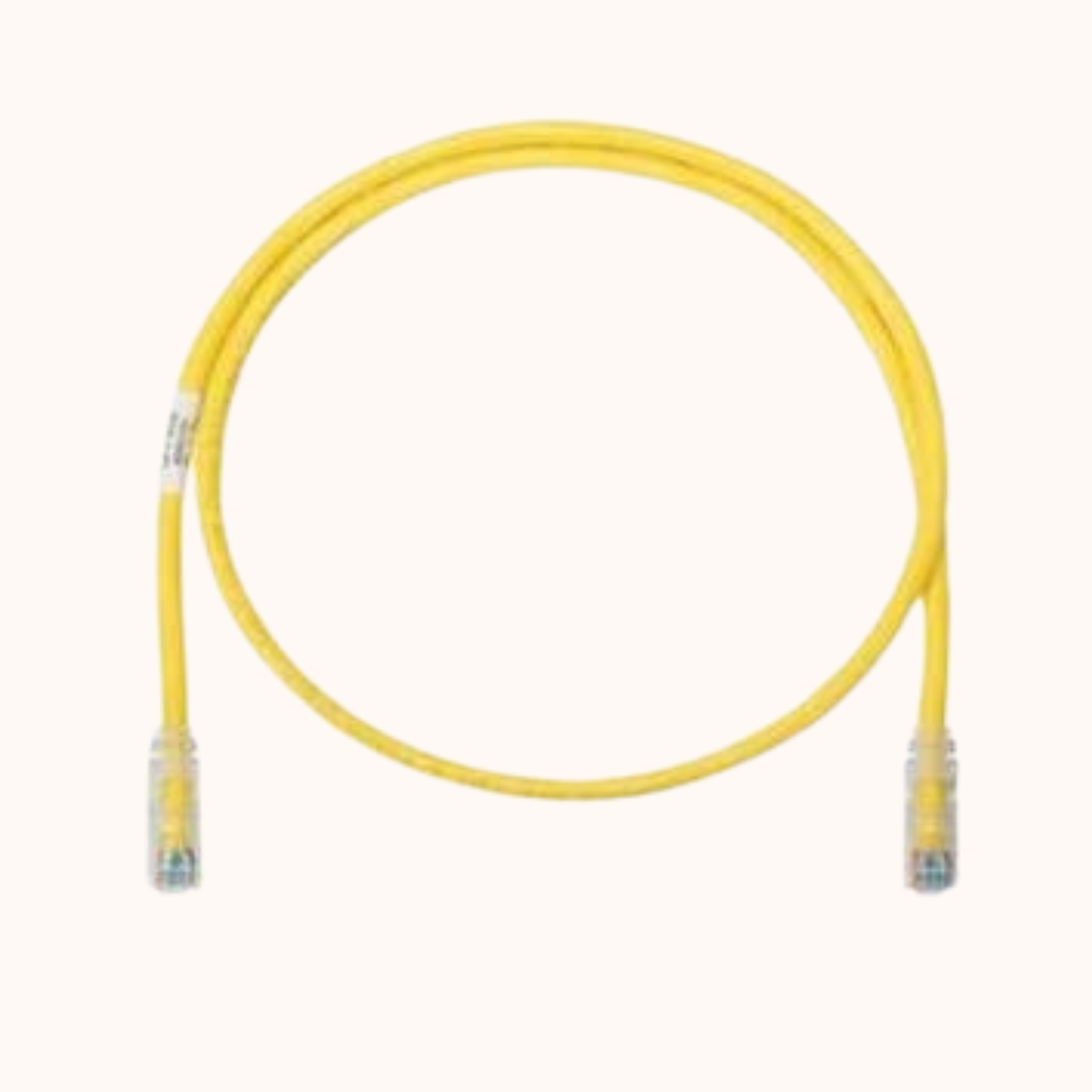

CommScope 1M Cat6 Yellow Patch Cable - (NPC06UZDB-YL001M)
Rs. 150.00
Rs. 399.00
Brand: CommScope
Model: NPC06UZDB-YL001M
Type: Cat6 Ethernet Patch Cable
Length: 1 Meter
Color: Yellow
Model: NPC06UZDB-YL001M
Type: Cat6 Ethernet Patch Cable
Length: 1 Meter
Color: Yellow
Product Details
Specifications
Product Details
Product Details
| Specification | Details |
|---|---|
| Brand | CommScope |
| Model | NPC06UZDB-YL001M |
| Product Type | Cat6 Ethernet Patch Cable |
| Cable Category | Category 6 (Cat6) |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Connector Type | RJ45 to RJ45 |
| Cable Length | 1 Meter |
| Cable Color | Yellow |
| Conductor Type | Stranded Copper |
| Wire Gauge | 24 AWG |
| Number of Pairs | 4 Pairs |
| Wiring Standard | T568B |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Diameter Over Jacket | Approx. 5.97 mm |
| Maximum Current Rating | 1.5 A @ 20°C |
| Operating Temperature | -20°C to +60°C |
| Transmission Standard | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| PoE Support | Supports IEEE 802.3bt (up to 90W) |
Specifications
Specifications
General
- Cable Connector GenderMale-to-Male
- Connector 1 GenderMale
- Connector 2 GenderMale
Size
- Item Length1 m
