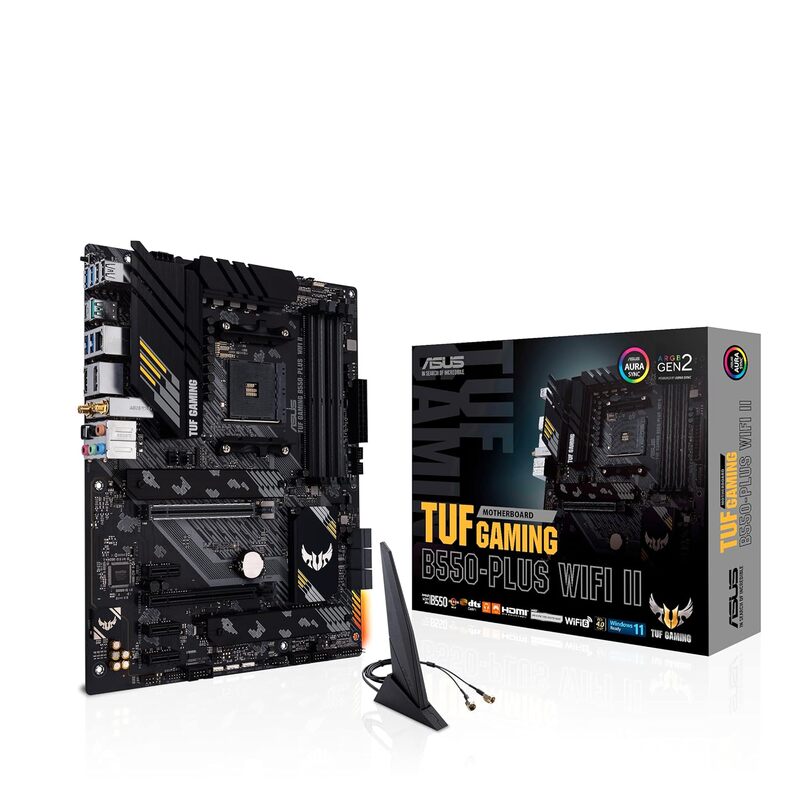

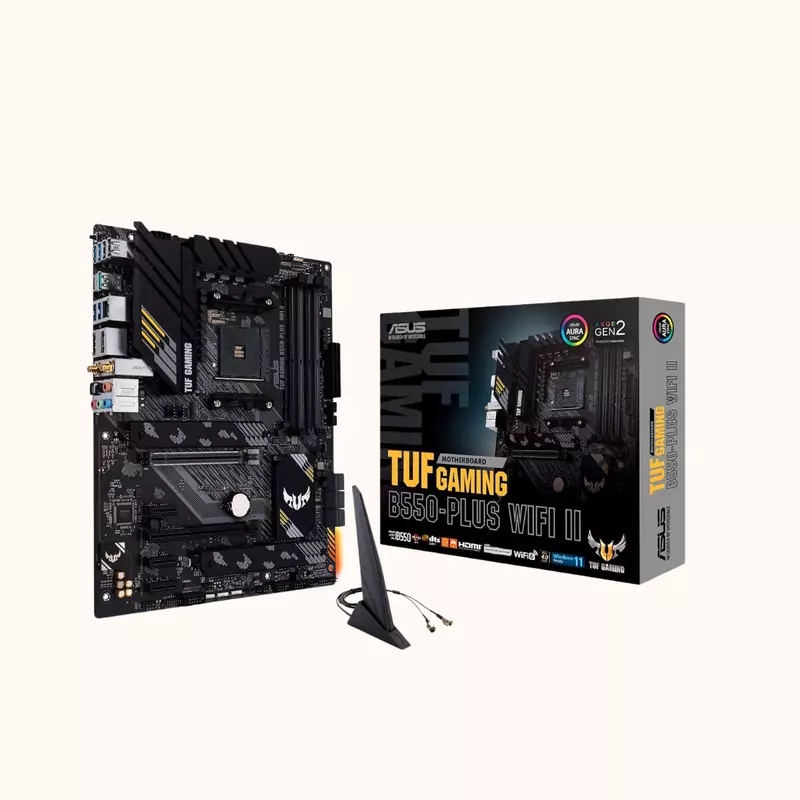

ASUS TUF Gaming Plus WiFi Motherboard -B550
Category | Specification |
---|---|
CPU Support | AMD Ryzen 5000 / 4000 G-Series / 3000 Series (AM4 socket) |
Chipset | AMD B550 |
Memory Support | Up to 128GB DDR4, up to 4866 MHz (OC), 4 DIMM slots |
Form Factor | ATX (305mm x 244mm) |
Expansion Slots | 1 x PCIe 4.0 x16 |
Graphics Outputs | 1 x HDMI 2.1 |
Storage Options | 2 x M.2 (1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4) |
Networking | 2.5Gb Ethernet (Realtek RTL8125B) |
Audio | Realtek ALC S1200A 7.1-Channel HD Audio |
USB Ports | 2 x USB 3.2 Gen 2 (1 x Type-A, 1 x Type-C) |
Cooling Features | VRM Heatsinks, M.2 Heatsink, Stack Cool 3+, Fan Xpert 2+ |
Durability | Military-grade TUF components, Digi+ VRM, ProCool sockets |
BIOS | UEFI AMI BIOS with EZ and Advanced Mode |
Price (India) | โน19,499 โ โน19,500 (varies by seller) |
Common Issues | Reports of flat sound profile from onboard audio, limited EQ options |
Processor
- RAM Memory TechnologyDDR4
- Processor SocketSocket AM2
- Memory Slots4
- Speed4.0 GHz & Above
- ChipsetB550
