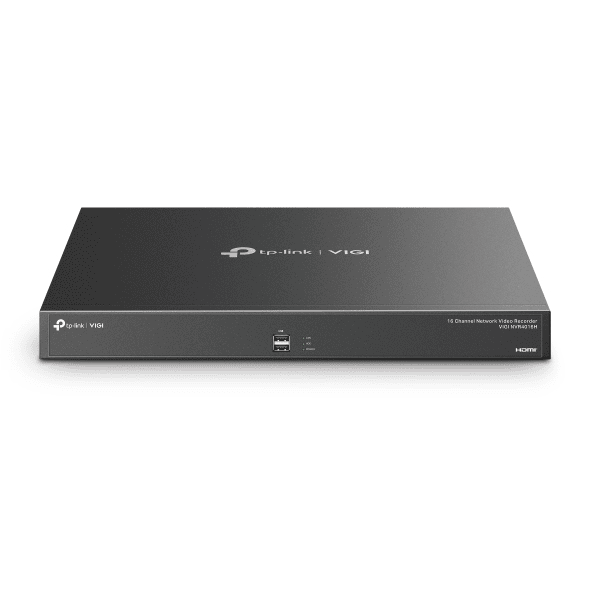

TP-Link VIGI 16 Channel Network Video Recorder-NVR4016H

Video Input

16 Channels (IP)

Bandwidth

320 Mbps Incoming & Outgoing

Video Output

2× HDMI (4K & Full HD), 1× VGA (up to 1080p)

Multi-View

1, 4, 6, 8, 9, 16 Channels

Audio Compression

G.711A / G.711U / G.726

Video Compression

H.265+/H.265/H.264+/H.264

Record Resolutions

8MP, 5MP, 4MP, 3MP, 1080p, etc.

Playback

16-channel synchronous playback, with various playback and backup modes

Storage

4× SATA (up to 16TB per HDD, total up to 64TB)

USB Ports

2× USB 2.0 (Front), 1× USB 3.0 (Rear)

Network Ports

2× RJ-45 10/100/1000 Mbps

Audio In/Out

1× RCA Input, 1× RCA Output

Alarm I/O

16 Inputs / 4 Outputs

Interoperability

ONVIF Profile S, CGI

Mobile Access

Android, iOS

Web Browsers

Chrome (57+), Firefox (52+), Edge (91+)

Protocols

UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Power Supply

100–240 VAC, 50–60Hz, 1.5A

Power Consumption

5.5W (No Disk), 45W (With Disk)

Mounting Type

Rack Mount & Desktop

Dimensions

440 × 330 × 44 mm (17.32 × 12.99 × 1.73 in)

Weight

Net: 4.0 kg / Gross: 5.0 kg

Temperature Range

Operating: -10–55 °C / Storage: -40–70 °C

Alarm Support

Motion, Tampering, Line-Cross, Intrusion, Vehicle/Human Detection, Audio Detection, etc. (camera-dependent)

Certifications

CE, FCC, IC, ONVIF, HDMI, KC, VCCI, BSMI, NTRA
