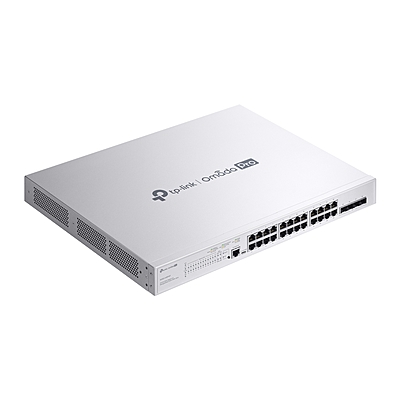

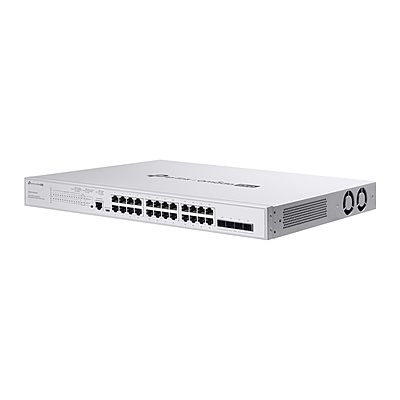

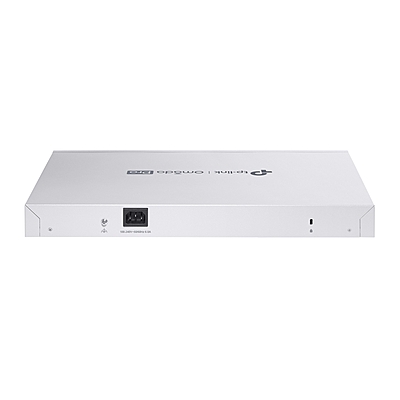

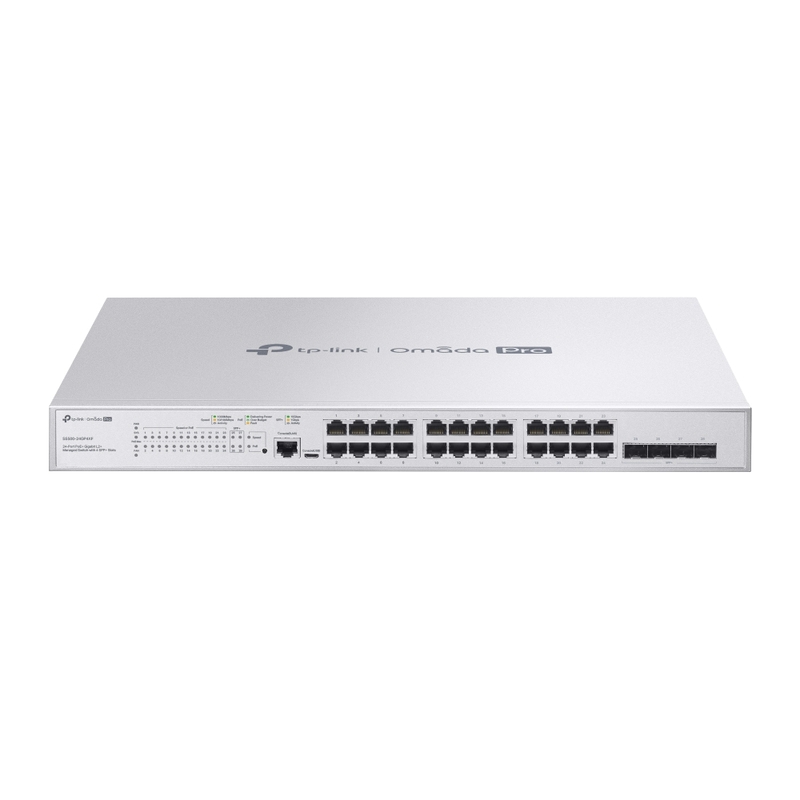

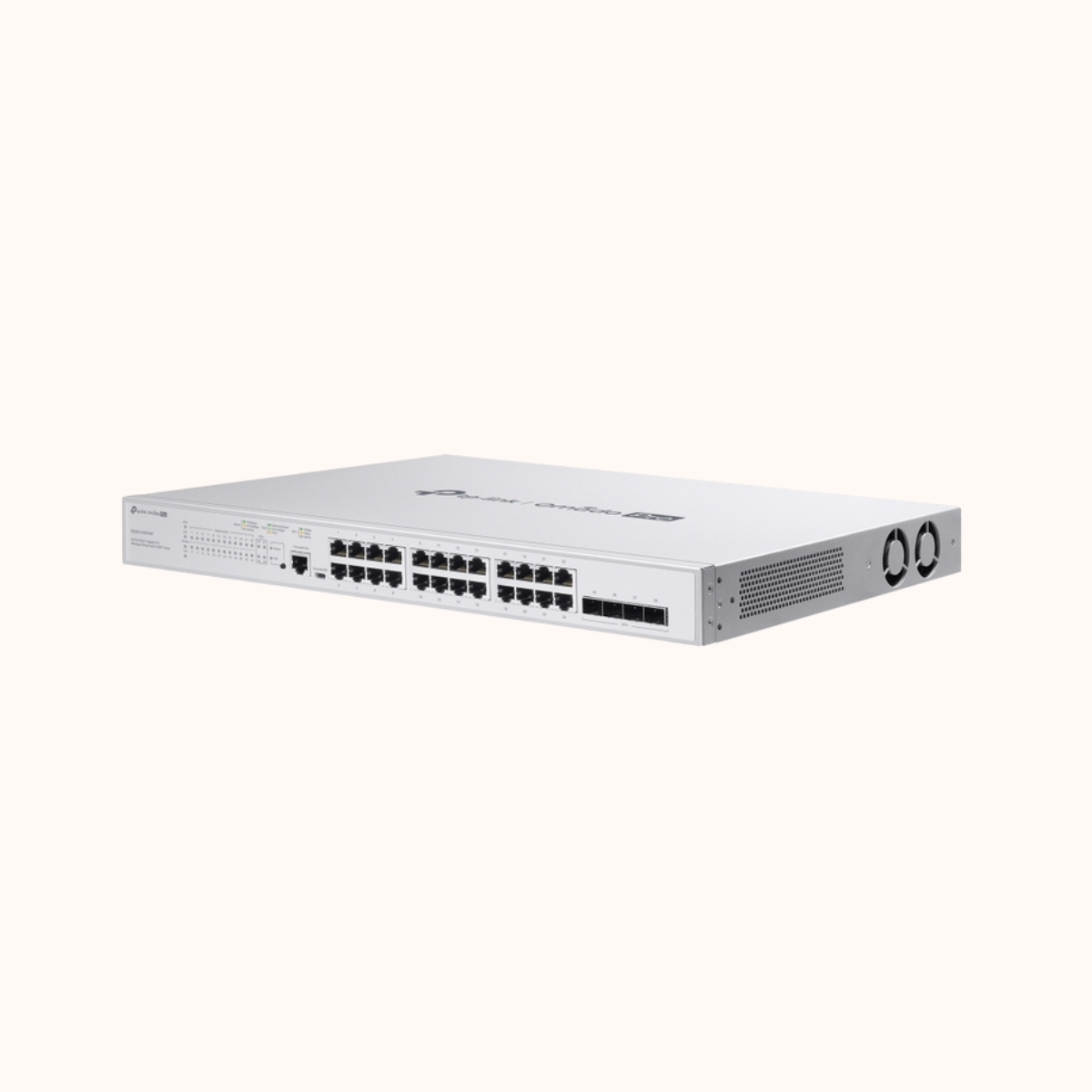

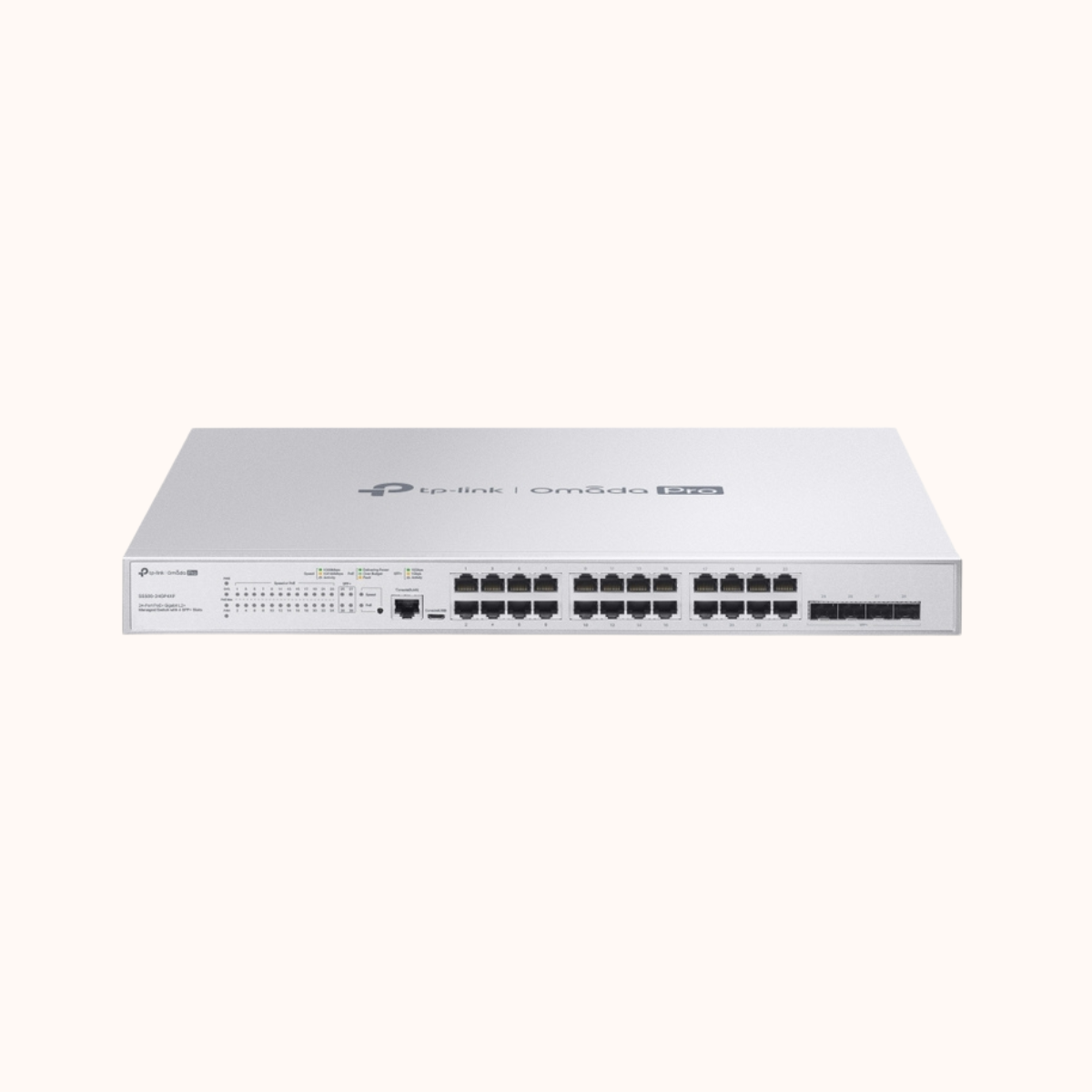

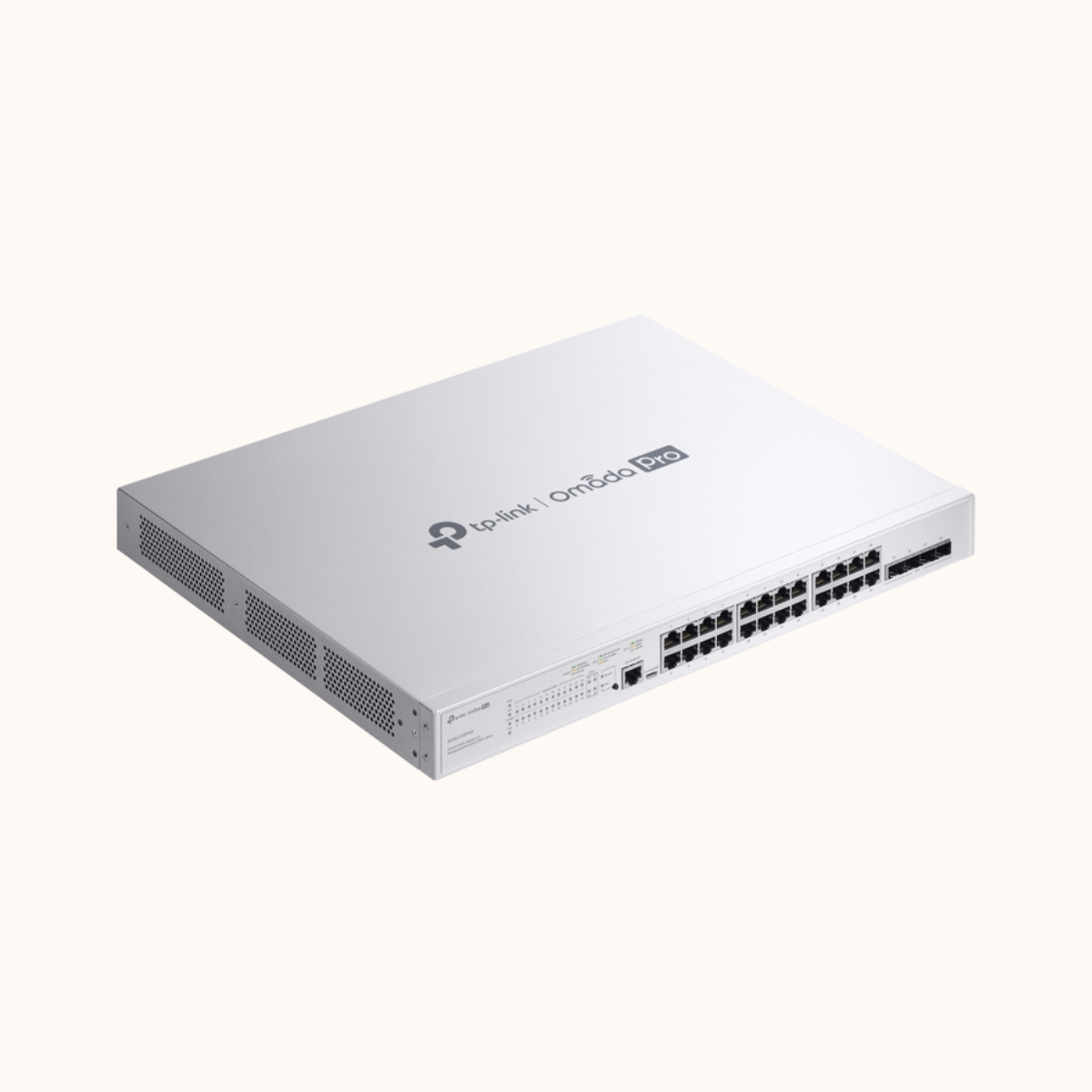

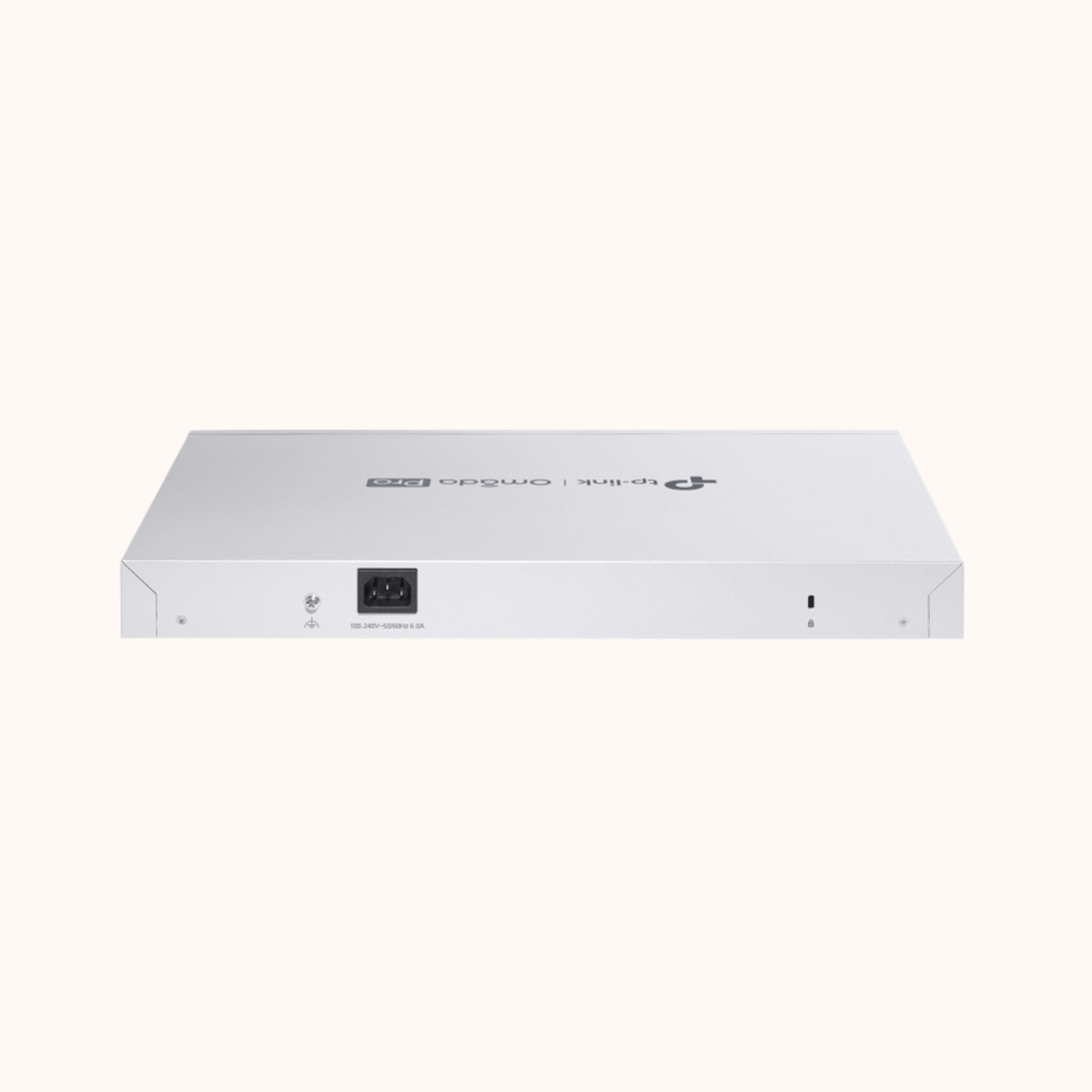

TP-Link Omada Pro 24-Port PoE+ Gigabit L2+ Managed Switch 4 SFP+ Slots-S5500-24GP4XF

Hardware Features

24× Gigabit RJ45 Ports (PoE+), 4× 10G SFP+ Slots, PoE+ (802.3at/af), 384W PoE Budget

Mounting & Size

Rackmountable, 440×330×44 mm

Power Supply

Internal AC (100~240V, 50/60Hz), Max Power: 486.2W (with PoE devices connected)

Cooling

2 Fans

Performance

128 Gbps Switching Capacity, 95.23 Mpps Forwarding Rate, 16K MAC Table, 9KB Jumbo Frames

Protocols Supported

IEEE 802.3/802.1 series (VLAN, STP, LACP, 802.1X, etc.)

QoS Features

8 Queues, CoS/DSCP Priority, SP/WRR/SP+WRR Scheduling, Bandwidth Control

L3 Features

16 IPv4/IPv6 Interfaces, 48 Static Routes, DHCP Server/Relay, Proxy ARP

L2 & L2+ Features

LACP (8 groups), STP/RSTP/MSTP, Loop Protection, Port Mirroring, Flow Control

Multicast Features

IGMP v1–v3 Snooping, MLD v1/v2 Snooping, MVR, Static Multicast Group Config

Advanced Features

OAM, L2PT, DLDP, QinQ, PPPoE ID, DDM, ERPS, sFlow, Anomaly Detection

VLAN Support

4K VLANs, 802.1Q, MAC VLAN, Voice VLAN, Protocol VLAN, QinQ, GVRP

ACL Support

MAC/IP/IPv6 ACLs, Time-Based ACLs, Actions: Mirror, Redirect, QoS, Rate Limit

Security

IP-MAC-Port Binding, DHCP Snooping, ARP/ND Inspection, DoS Defense, Port Security

IPv6 Support

Dual Stack, IPv6 ACLs & Routing, DHCPv6, ND, MLD, Ping6, Traceroute6, SSL, SSH

MIB Support

MIB II, Bridge MIB, RMON 1/2, Radius MIBs, TP-Link Private MIBs

Management

Web GUI, CLI (console/telnet), SNMP v1/v2c/v3, Omada App/Controller, ZTP, LLDP
