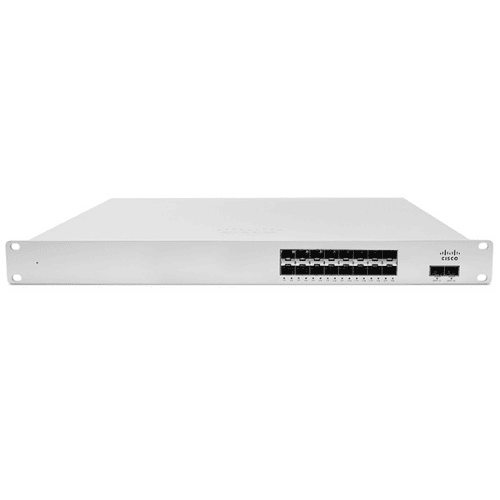

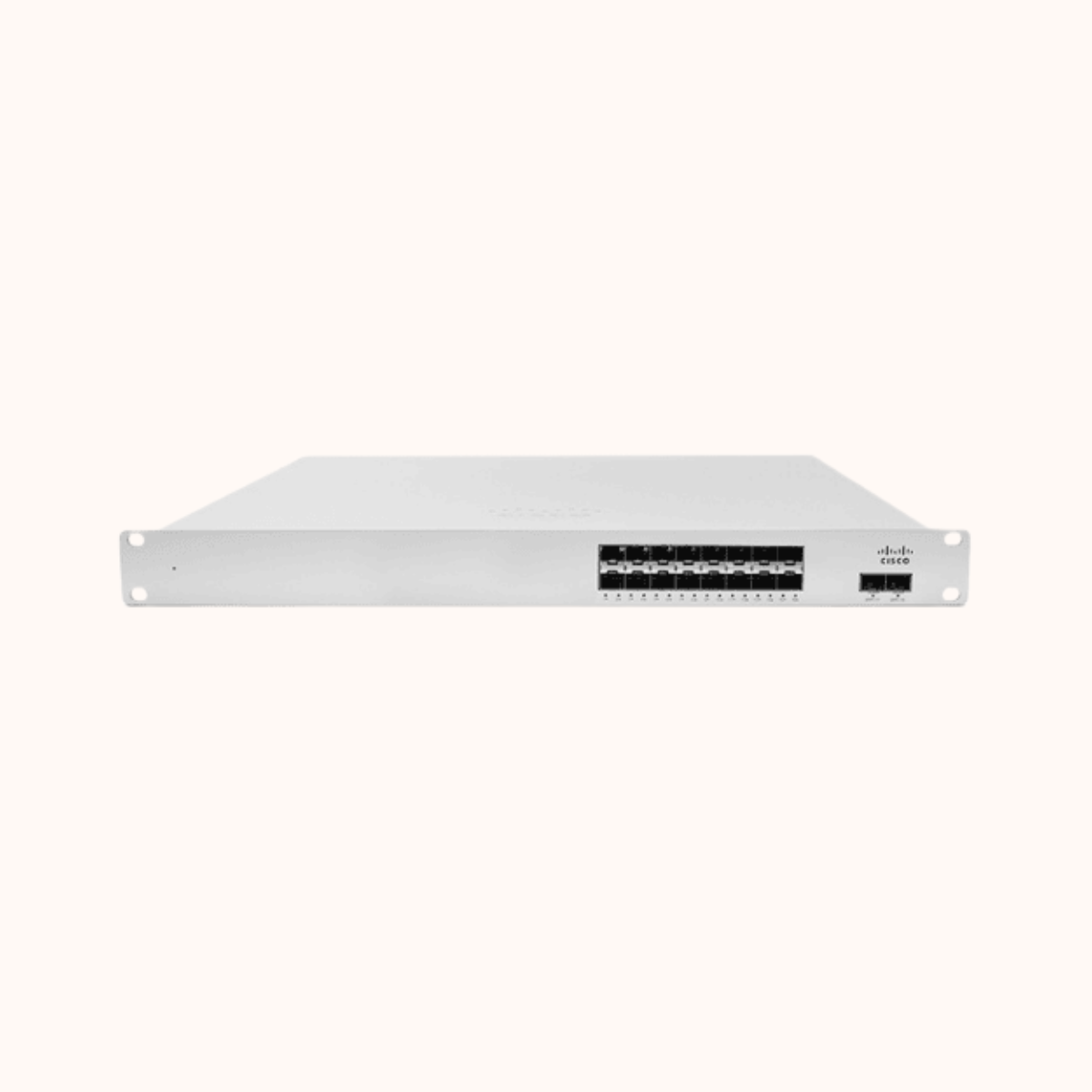

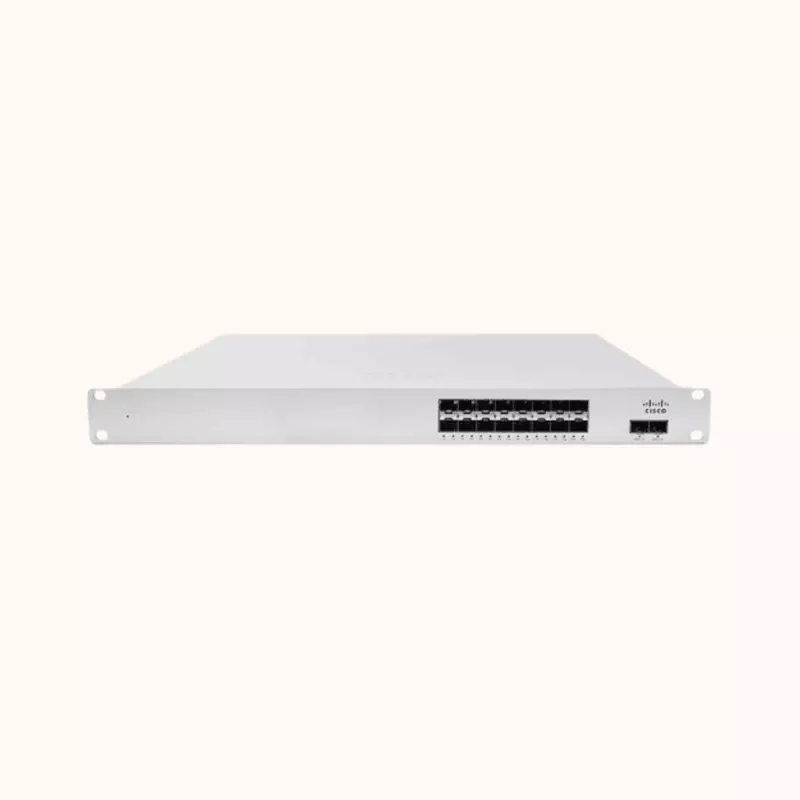

Cisco Meraki 16 Port Cloud Managed Aggregation Switch - MS410-16
Feature Area | Key Point |
|---|---|
High-Speed Uplinks | 2 × 10G SFP+ ports provide high-throughput uplinks for aggregation/core layers |
Advanced Layer 3 | Built-in DHCP Server, OSPFv2, DHCP Failover, and Warm Spare Gateway Redundancy |
Centralized Visibility | Real-time per-port/client statistics, virtual stack control, and event logging |
Hardware Efficiency | Low 50W power consumption (idle), front-to-back airflow, enterprise-ready design |
Category | Key Feature |
|---|---|
Interfaces | 16 × 1G SFP ports, 2 × 10G SFP+ uplinks |
1 × 10/100/1000 RJ45 dedicated management port | |
Management | Managed via Meraki Dashboard with zero-touch cloud provisioning |
SNMP, firmware upgrades, usage analytics, and hostname fingerprinting | |
Stacking | Physical stacking (up to 8 switches, 160 Gbps), Virtual stacking supported |
Ethernet Switching | 802.1Q VLAN (up to 4095), QoS, Link Aggregation, IGMP, Storm Control |
MAC forwarding entries: 96K | |
Layer 3 Capabilities | OSPFv2 dynamic routing, static routing, DHCP relay & server, warm spare failover |
Remote Diagnostics | Remote packet capture, SMS/email alerts, event logs |
Performance | Switching capacity: 72 Gbps (MS410-16), Latency: 1.2 µs |
Power & Mounting | Power: 50W idle / 85W max, 100–240V AC input, 1U rack-mountable |
Environment | Operating temperature range: 0°C to 40°C |
General
- TypesManaged
- Switching Capacity72 Gbit/s
- No. Of SFP Ports16
- Rack MountingYes
