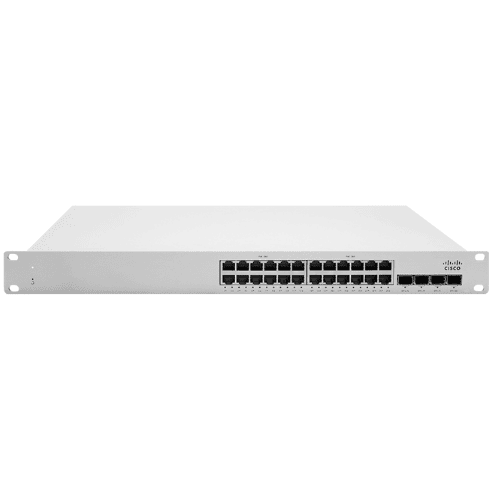

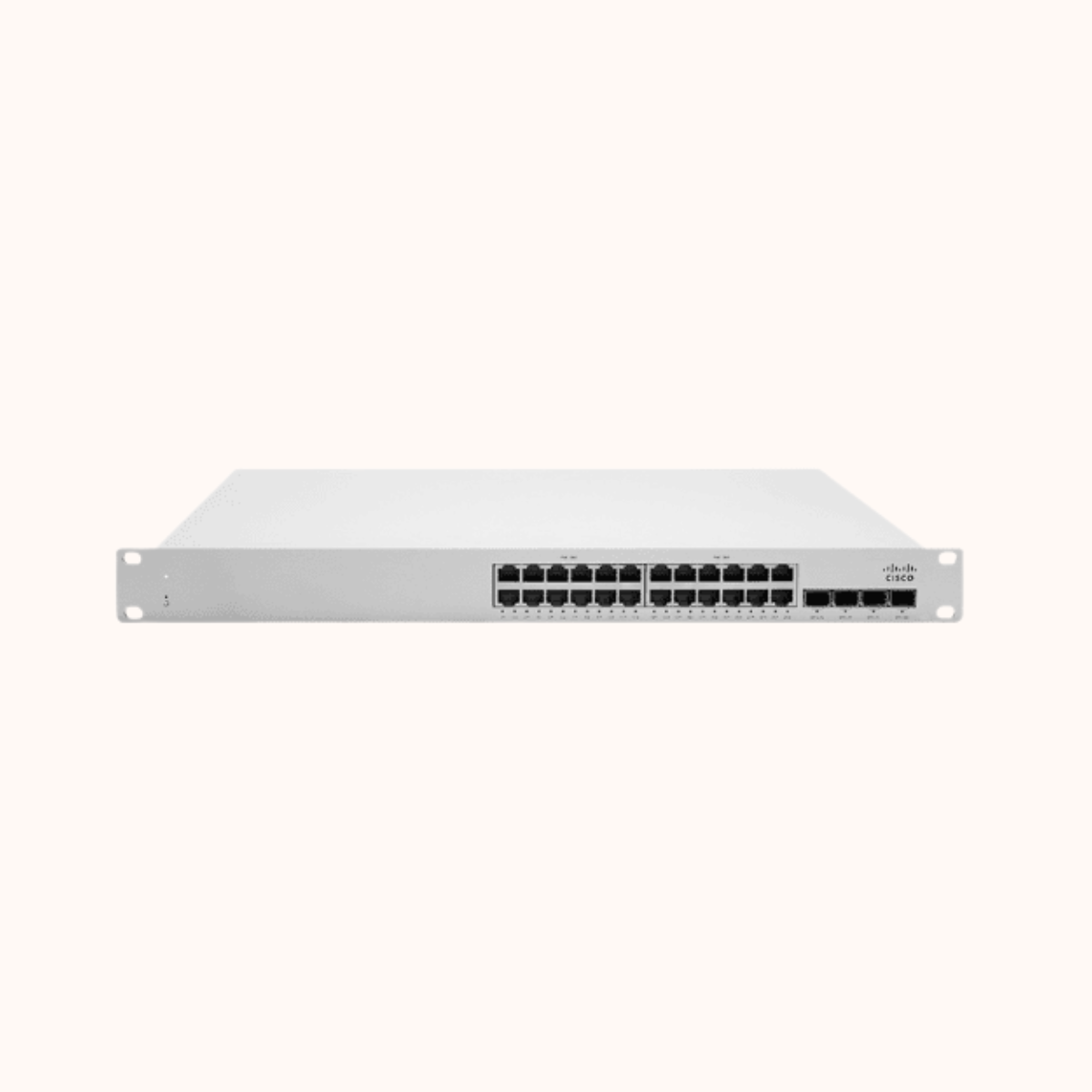

Cisco Meraki 24 Port Cloud Managed Stackable Switch - MS250-24
Feature Area | Key Point |
|---|---|
High-Speed Uplinks | Equipped with 4 × 10G SFP+ ports for high-bandwidth uplink redundancy |
Advanced Diagnostics | Supports remote cable testing, live packet capture, and real-time alerting |
Event Intelligence | Aggregated logs and real-time topology discovery for deep network insights |
Firmware & Updates | Cloud-managed seamless firmware upgrades with full scheduling control |
Category | Key Feature |
|---|---|
Interfaces | 24 × Gigabit RJ45 ports with PoE/PoE+ support (up to 30W per port) |
4 × 10G SFP+ uplink ports, 2 × stacking interfaces | |
Management | Meraki cloud-based dashboard with zero-touch deployment |
Full integration with Meraki’s wireless and security portfolio | |
Stacking | Physical stacking (8 switches, 80 Gbps), Virtual stacking for thousands of ports |
Ethernet Switching | VLAN support, Link Aggregation, IGMP Snooping, Storm Control |
MAC entries: 16K (24-port), 32K (48-port) | |
Security | 2FA, RBAC, 802.1X, MAC Auth, Sticky MAC, ACLs, DHCP snooping |
PoE Power | Max PoE output: 370W (24P), PoE available on all ports simultaneously |
Performance | Switching capacity: 128 Gbps (24-port), Forwarding rate: 95.24 mpps |
Layer 3 Capabilities | Static Routing and DHCP Relay |
Power & Mounting | Input: 100–240V AC, Power: 14–434W, RPS-2300 compatible, 1U rack-mountable |
General
- TypesManaged
- Switching Capacity120 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
