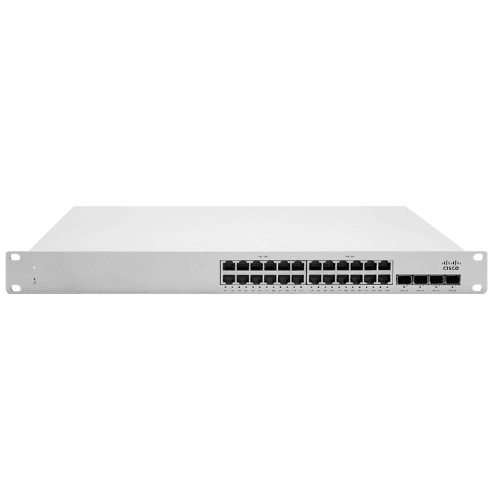

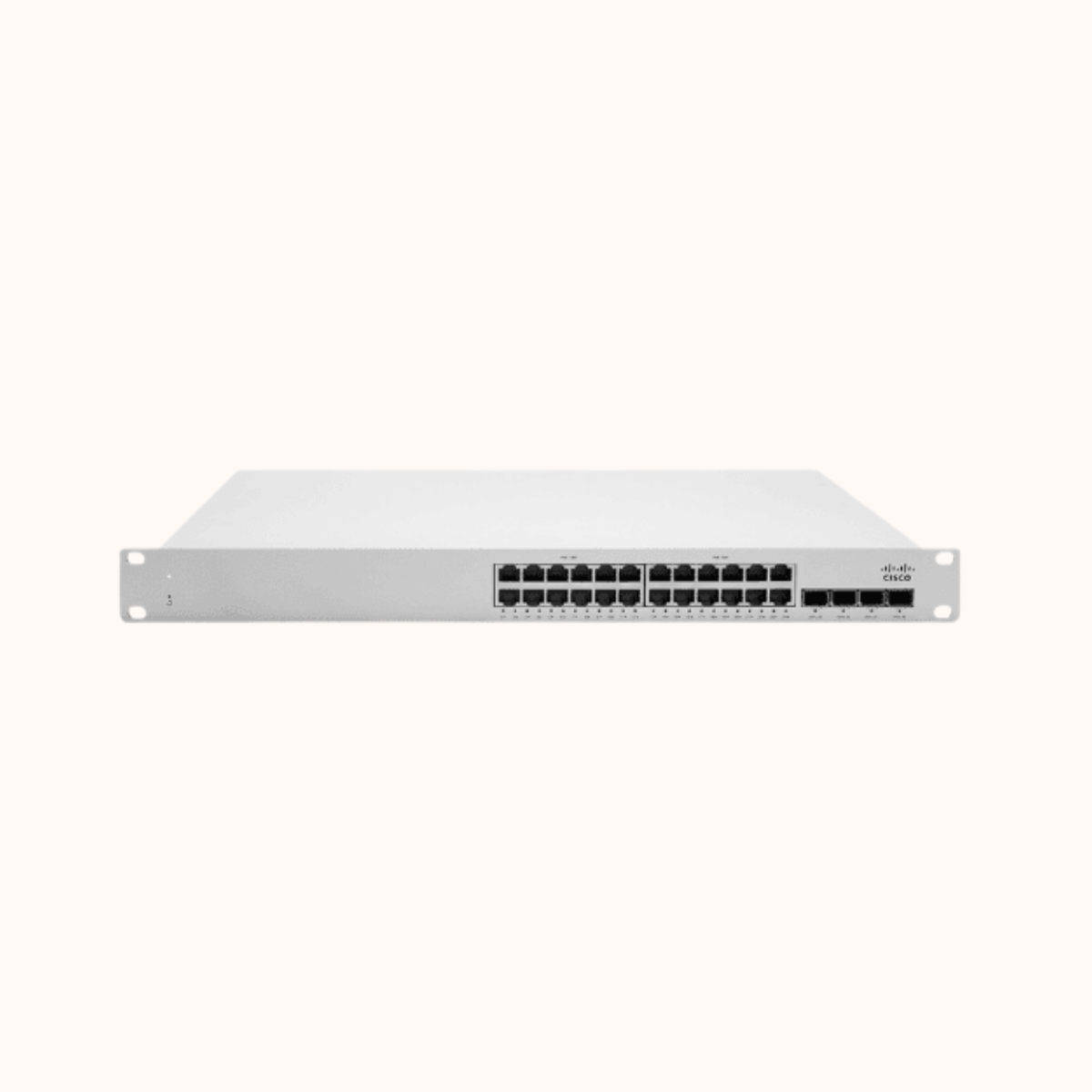

Cisco Meraki 24 Port Cloud Managed Stackable Switch - MS250-24P
Feature Area | Key Point |
|---|---|
High-Speed Uplinks | Equipped with 4 × 10G SFP+ ports for ultra-fast backbone connectivity |
Advanced Troubleshooting | Remote cable testing, link failure detection, and live packet capture |
Firmware & Logging | Automated cloud firmware upgrades with scheduling and event change logs |
Topology Intelligence | Dynamic real-time network discovery and interactive topology visualization |
Category | Key Feature |
|---|---|
Interfaces | 24 × Gigabit RJ45 ports with PoE/PoE+ support (up to 30W per port) |
4 × 10G SFP+ uplink ports, 2 × stacking interfaces | |
Management | Cloud-managed via Meraki Dashboard with zero-touch remote deployment |
Integrated with Meraki wireless and device ecosystem | |
Stacking | Physical stacking (up to 8 switches, 80 Gbps), Virtual stacking supported |
Ethernet Switching | VLANs (up to 4,095), QoS, Link Aggregation, IGMP, Storm Control |
MAC forwarding entries: 16K (24-port) | |
Security | 2FA, RBAC, 802.1X, MAC auth, Sticky MAC, DHCP snooping, IPv4 ACLs |
PoE Power | Total PoE budget: 370W, PoE+ on all ports |
Performance | Switching capacity: 128 Gbps, Forwarding rate: 95.24 mpps |
Layer 3 Capabilities | Supports Static Routing and DHCP Relay |
Power & Mounting | Power input: 100–240V AC, Consumption: 14–434W, RPS-2300 supported, 1U rack-mount |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports24
- Rack MountingYes
