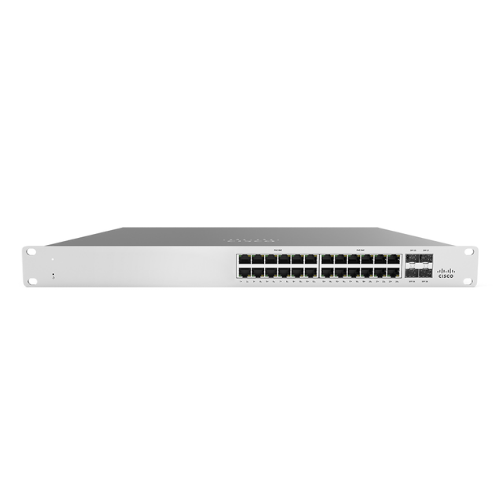

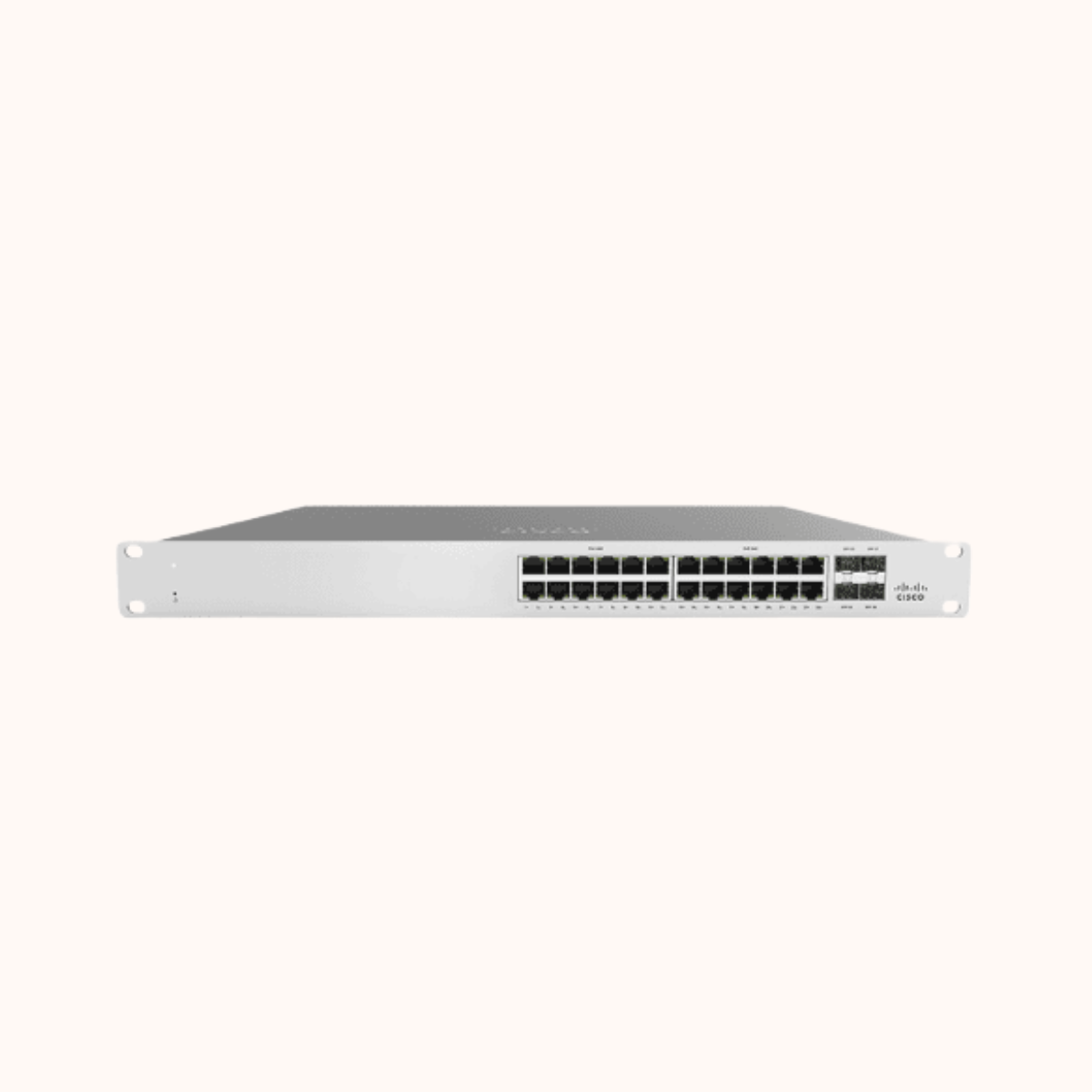

Cisco Meraki 24 Port Cloud Managed Switch - MS125-24P
Feature | Description |
|---|---|
Switch Ports | 24 × 1G RJ45, 4 × 10G SFP+ uplinks |
PoE Power (MS125-24P) | 370W total, up to 30W per port |
Hardware | 1RU rack-mountable, low-noise fanless model available |
Cloud Management | Meraki Dashboard, email alerts, remote tools, zero-touch provisioning |
Switching Features | Layer 2, DHCP Relay, 802.1X, DHCP Snooping, ACLs, STP enhancements |
Feature | MS125-24 Description |
|---|---|
Port Configuration | 24 × 1GbE RJ45, 4 × 10G SFP+ uplink ports |
PoE Support | Not supported |
Management | Cloud-managed via Meraki Dashboard with zero-touch provisioning |
Monitoring & Logging | Per-port/client usage, SNMP, SYSLOG, device fingerprinting |
Remote Diagnostics | Email/SMS alerts, cable testing, traceroute, packet capture, topology view |
Stacking | Virtual Stacking for unified management of thousands of ports |
Ethernet Capabilities | QoS (802.1p), VLAN (802.1Q), RSTP/STP, BPDU guard, LACP, IGMP, Port mirroring |
MAC Table Size | 16K entries |
Layer 3 Features | DHCP Relay |
Security | 2FA, RBAC, 802.1X, MAB, sticky MAC, ACLs, DHCP snooping |
Switching Capacity | 128 Gbps |
Forwarding Rate | 95.23 mpps |
Jumbo Frame Support | Up to 9578 bytes |
Power Input | 100–240V~, 50–60Hz, 10.3–25.6W max (fanless design) |
Mounting Options | 1U rack-mountable, 2-post and desktop-mountable |
Operating Environment | 0°C to 45°C, up to 95% humidity |
Regulatory Compliance | CSA-US, FCC, IC, CE, RCM, RoHS |
Warranty | Lifetime hardware warranty with next-day advanced replacement |
MTBF @ 25°C | 1,957,381 hours |
Dimensions (H × W × D) | 1.73” × 17.32” × 9.84” (4.40 × 44 × 25 cm) |
Weight | 8.15 lb (3.70 kg) |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports24
- Rack MountingYes
