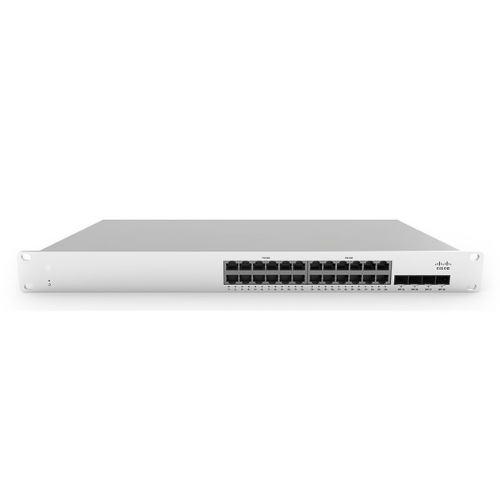

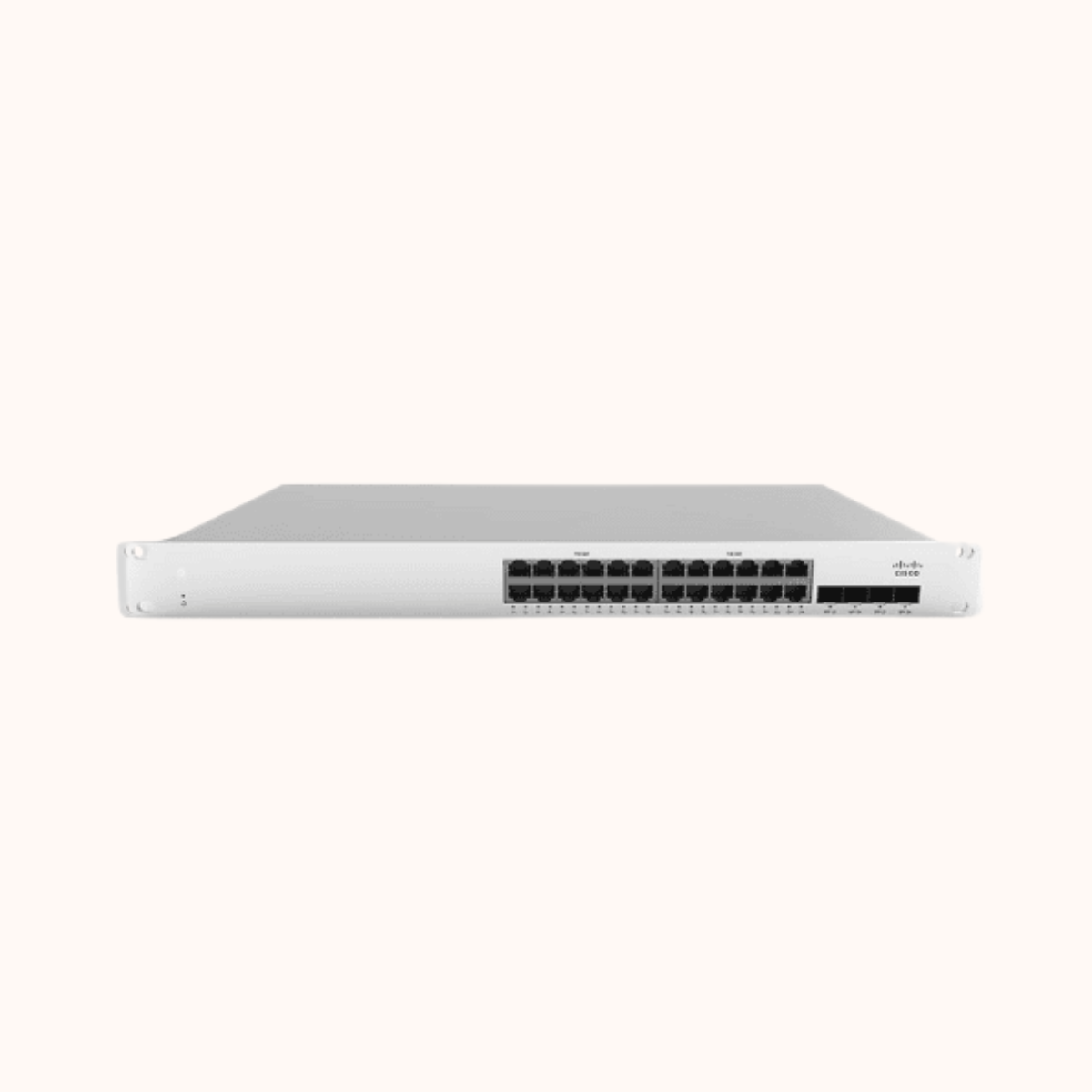

Cisco Meraki 24 Port Cloud Managed Switch - MS210-24P
Feature | Description |
|---|---|
10G Uplink via Stacking | Supports 10G uplink by stacking with MS225, up to 80G bandwidth |
PoE+ & Power Budget | Up to 740W PoE+ with dynamic allocation for APs, phones, and cameras |
Flexible Deployment | Low power use and shallow depth for wiring closets, offices, and classrooms |
Integrated Mounting | Comes with built-in brackets for rack and desk mounting |
Feature | Description |
|---|---|
Interfaces | 24 × 1GbE RJ45, 4 × 1GbE SFP uplinks, 2 × stacking interfaces |
PoE Support | 802.3af/802.3at PoE+ on all ports, up to 30W per port, 370W total budget |
Management | Meraki Dashboard, zero-touch provisioning, SNMP, SYSLOG |
Monitoring & Logs | Per-port/client usage stats, DHCP fingerprinting, event logs, firmware updates |
Remote Diagnostics | Alerts (Email/SMS), cable testing, packet capture, topology discovery |
Stacking | Physical stacking (up to 8 switches, 80 Gbps), Virtual Stacking supported |
Switching Capabilities | 802.1p QoS, 802.1Q VLAN (4095), STP/RSTP, LLDP, CDP, IGMP snooping |
Link Aggregation | 802.3ad (LACP) with up to 8 ports, Multichassis supported |
MAC Table | 16K entries (24-port model) |
Security | 2FA, RBAC, password policy, 802.1X, MAB, ACLs, DHCP snooping, port security |
Layer 3 Features | Static routing (up to 16 routes), DHCP Relay |
Performance | 128 Gbps switching capacity, 41.67 mpps forwarding, jumbo frame, flow control |
Power Input | 100–240V AC, 47–63 Hz, 15–448W consumption |
RPS Support | Compatible with Cisco RPS-2300 chassis |
Mounting Options | 1U rack-mountable, 2-post front, or desktop mounting |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports1
- No. Of RJ45 Ports24
- Rack MountingYes
