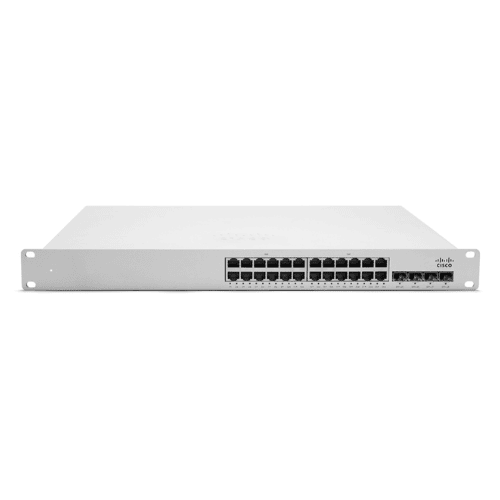

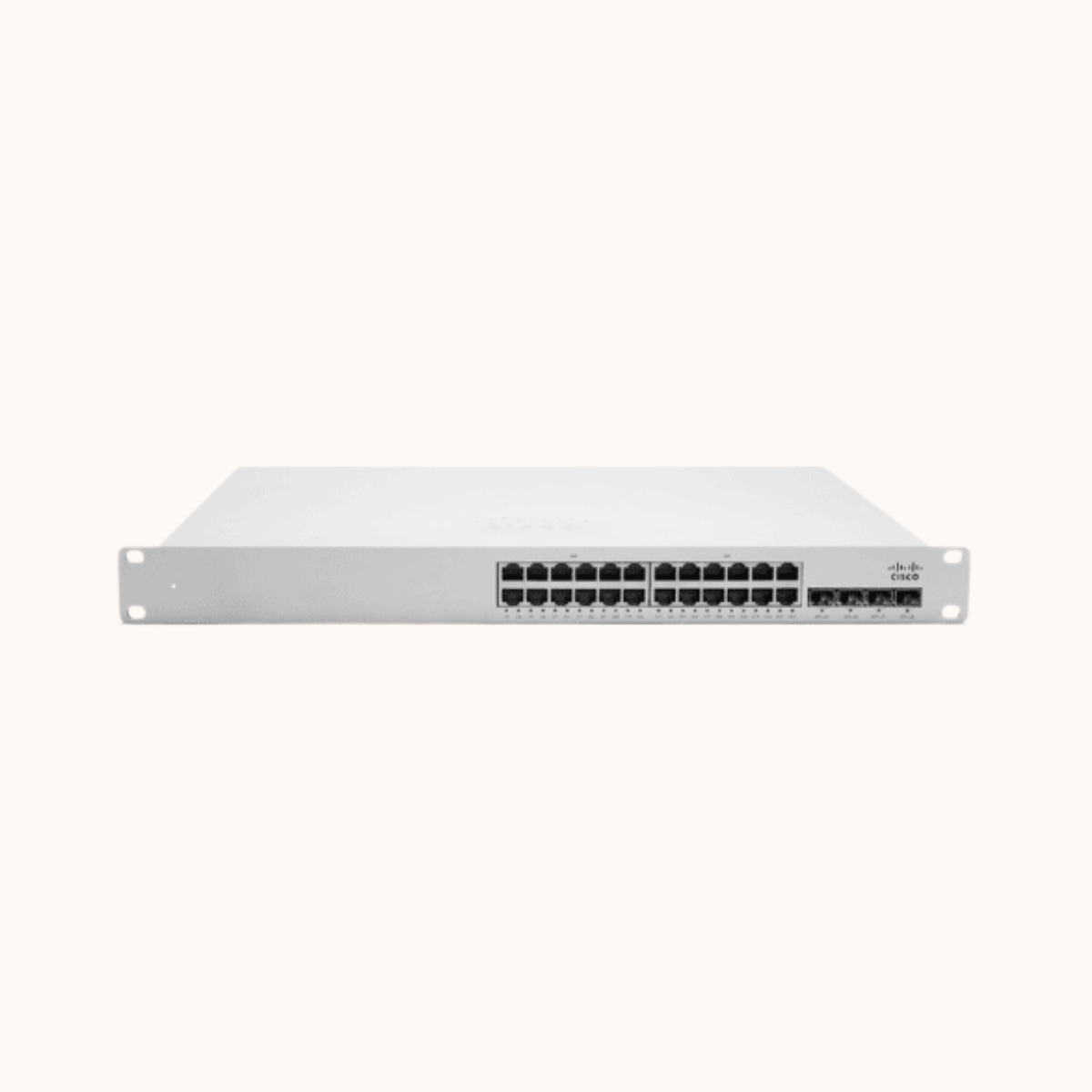

Cisco Meraki 24 Port Cloud Managed Switch - MS350-24
Feature Area | Key Point |
|---|---|
Remote Diagnostics | Supports cable testing, live remote packet capture, and SMS/email alerting |
Firmware Management | Seamless automatic firmware upgrades with scheduling and version control |
Event Logging | Aggregated event and configuration logs with instant search capability |
Advanced Redundancy | Warm Spare (VRRP) for Layer 3 gateway failover and automatic DHCP failover |
Category | Key Feature |
|---|---|
Management | Cloud-based dashboard with zero-touch remote provisioning |
Full integration with Meraki wireless, security, and device management | |
Stacking | Supports physical stacking (up to 8 switches, 160 Gbps bandwidth) |
Virtual stacking for unified management of thousands of ports | |
Ethernet Switching | Advanced VLAN support (up to 4,095), QoS, IGMP snooping, Link Aggregation |
MAC forwarding entries: Up to 96,000 (MS350 models) | |
Security | 2FA, 802.1X, MAC auth, Sticky MAC, ACLs, BPDU Guard, Role-based Access |
Performance | Non-blocking architecture with 2.5μs latency and jumbo frame support |
Layer 3 Capabilities | Static Routing, OSPFv2, DHCP Server & Relay with warm spare redundancy |
Power & Mounting | Input: 100–240V AC, Power: 5–888W, Rack/desktop/wall mount options available |
General
- TypesManaged
- Switching Capacity160 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- Rack MountingYes
