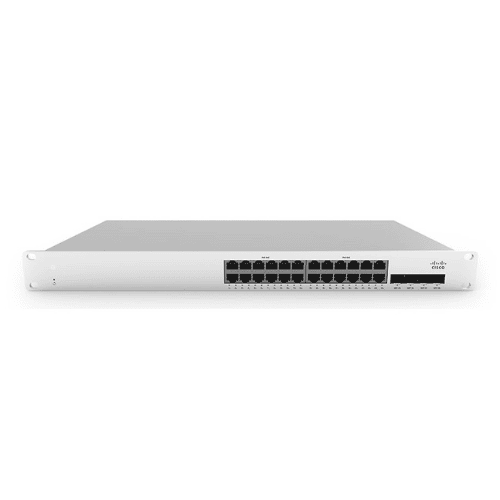

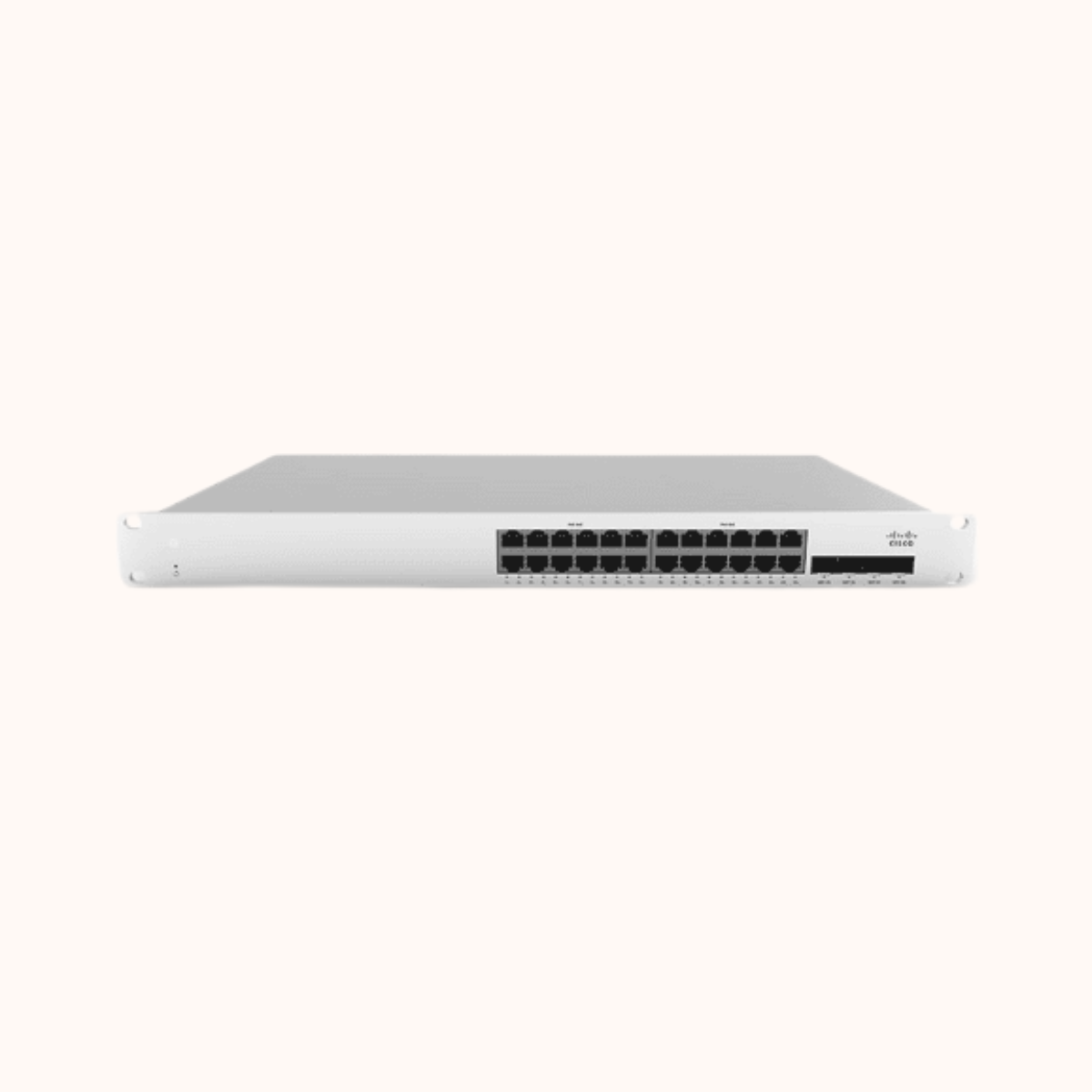

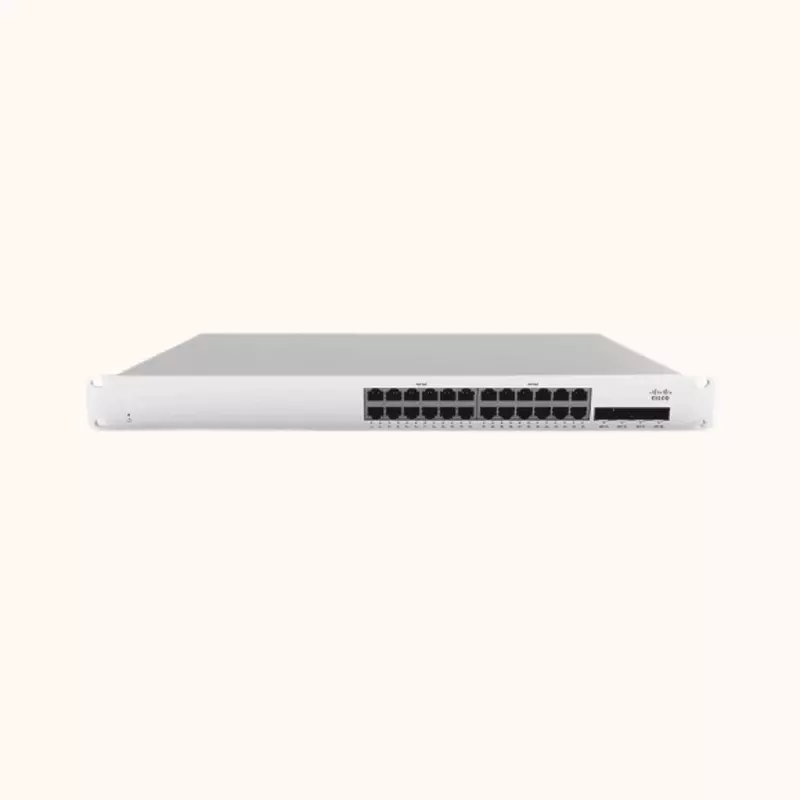

Cisco Meraki 24 Port Cloud Managed Switch-MS210-24

Security

2FA for Dashboard, RBAC, password policies, 802.1X, MAB, sticky MAC, ACLs

DHCP snooping, BPDU guard, Root guard

PoE/PoE+ Support

802.3af (15.4W), 802.3at (30W), max PoE output 370W on 24P model

Performance

Non-blocking fabric, 128Gbps (24-port), 176Gbps (48-port) switching capacity

41.67 mpps (24-port), 77.38 mpps (48-port), jumbo frame, flow control

Layer 3 Features

Static routing (up to 16 routes), DHCP Relay

Power

100–240V AC, 47–63 Hz, 15–448W consumption, RPS support via Cisco RPS-2300

Mounting Options

1U rack-mountable, 2-post front mount, desktop mount with included feet

Environmental

Operating temp: 0°C to 40°C (32°F to 104°F), Humidity: 5–95% non-condensing

Fan Operation

MS210 models include fan (MS225 models fanless)

Regulatory

CSA-US, FCC, IC, CE, RCM, RoHS compliant

Warranty

Lifetime hardware warranty with next-day advanced replacement

MTBF at 25°C

MS210-24: 590,165 hrs, MS210-24P: 391,648 hrs

Dimensions (H×W×D)

1.72 x 19.08 x 9.84 in (4.38 x 48.46 x 25 cm) for both MS210-24 & MS210-24P

Weight

MS210-24: 6.03 lb (2.73 kg), MS210-24P: 8.18 lb (3.71 kg)
