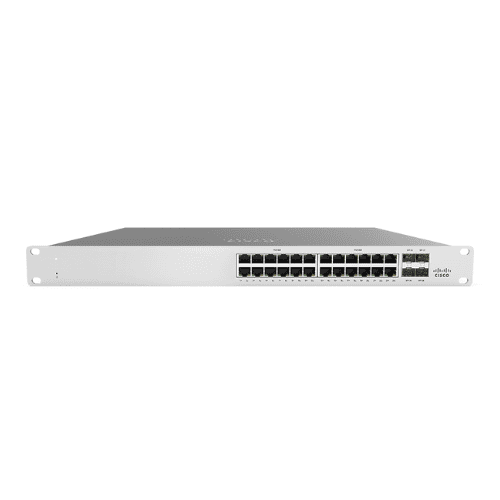

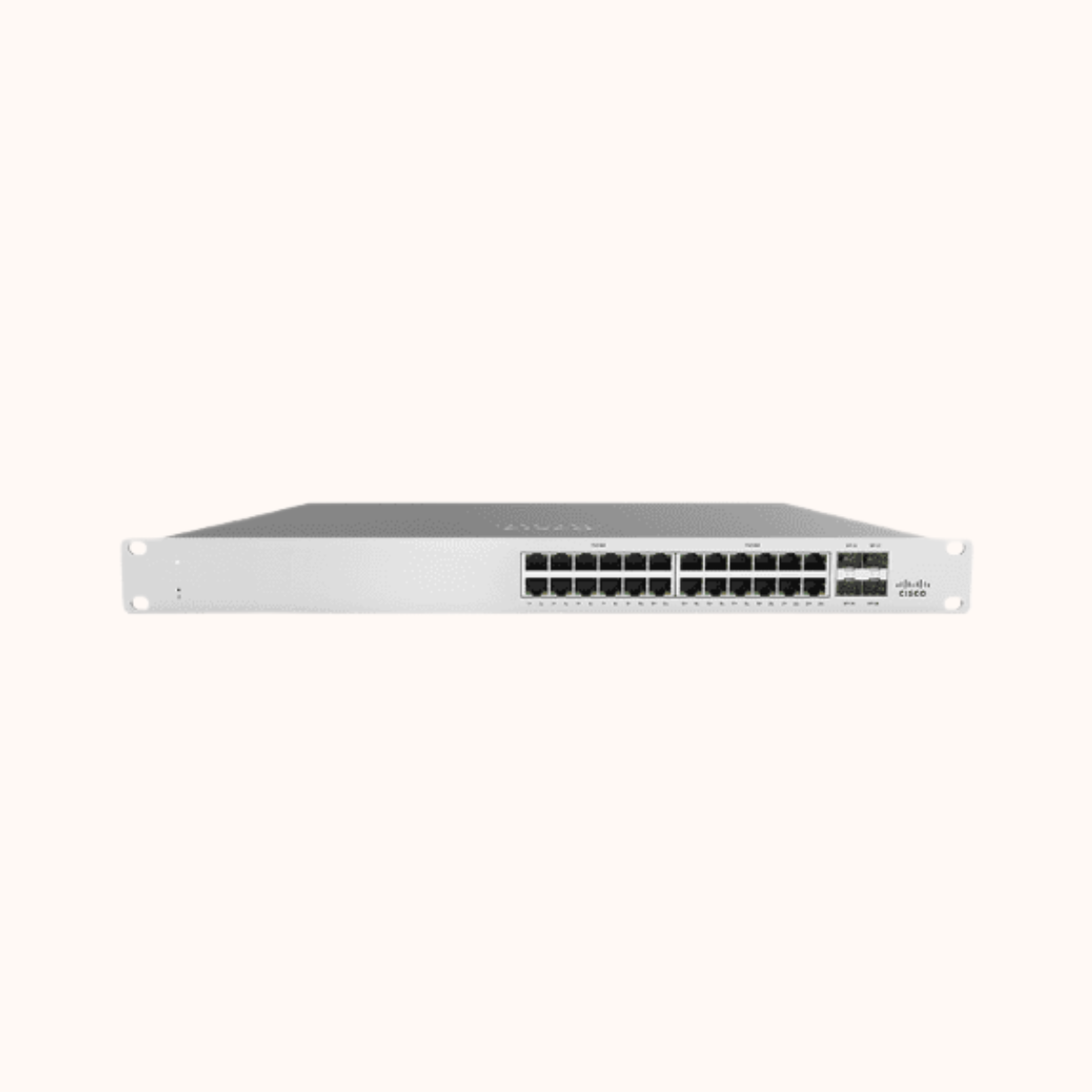

Cisco Meraki 24 Port Cloud Managed Switching MS120-24
Feature | Description |
|---|---|
Port Configuration | 24 × 1G RJ45 ports with PoE/PoE+ and 4 × 1G SFP uplinks |
Cloud Management | Centralized management via Meraki Dashboard with zero-touch setup |
High Performance | 56 Gbps switching capacity and 41.67 mpps forwarding rate |
Flexible Mounting | 1U rack-mountable and desktop mounting options included |
Category | Key Features |
|---|---|
Interfaces | 24 × 1G RJ45 ports with PoE/PoE+ (30W max per port), 4 × 1G SFP uplinks |
PoE Power Budget | Supports up to 370W, PoE available on all ports simultaneously |
Management | Cloud-managed via Meraki Dashboard, virtual stacking, remote diagnostics |
Switching Capacity | 56 Gbps switching, 41.67 mpps forwarding rate, jumbo frame support |
Security | 802.1X, RADIUS, MAC whitelisting, DHCP snooping, ACLs, STP enhancements |
Advanced Features | VLANs (4094), QoS, link aggregation, port mirroring, IGMP snooping |
Power Input | 100–240 VAC, 47–63 Hz, power consumption: 15–882W |
Mounting Options | 1U rack-mountable, 2-post or desktop mounting with included hardware |
General
- TypesManaged
- Switching Capacity56 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- Rack MountingYes
