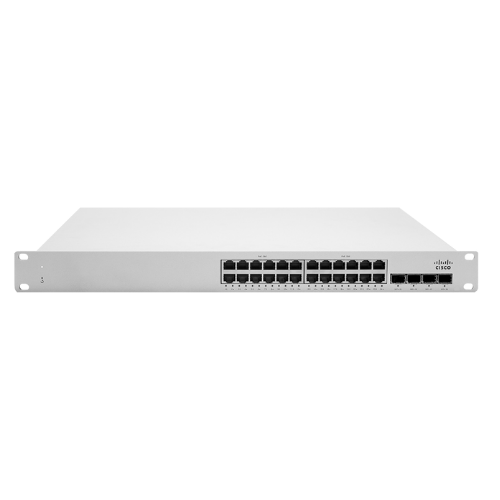

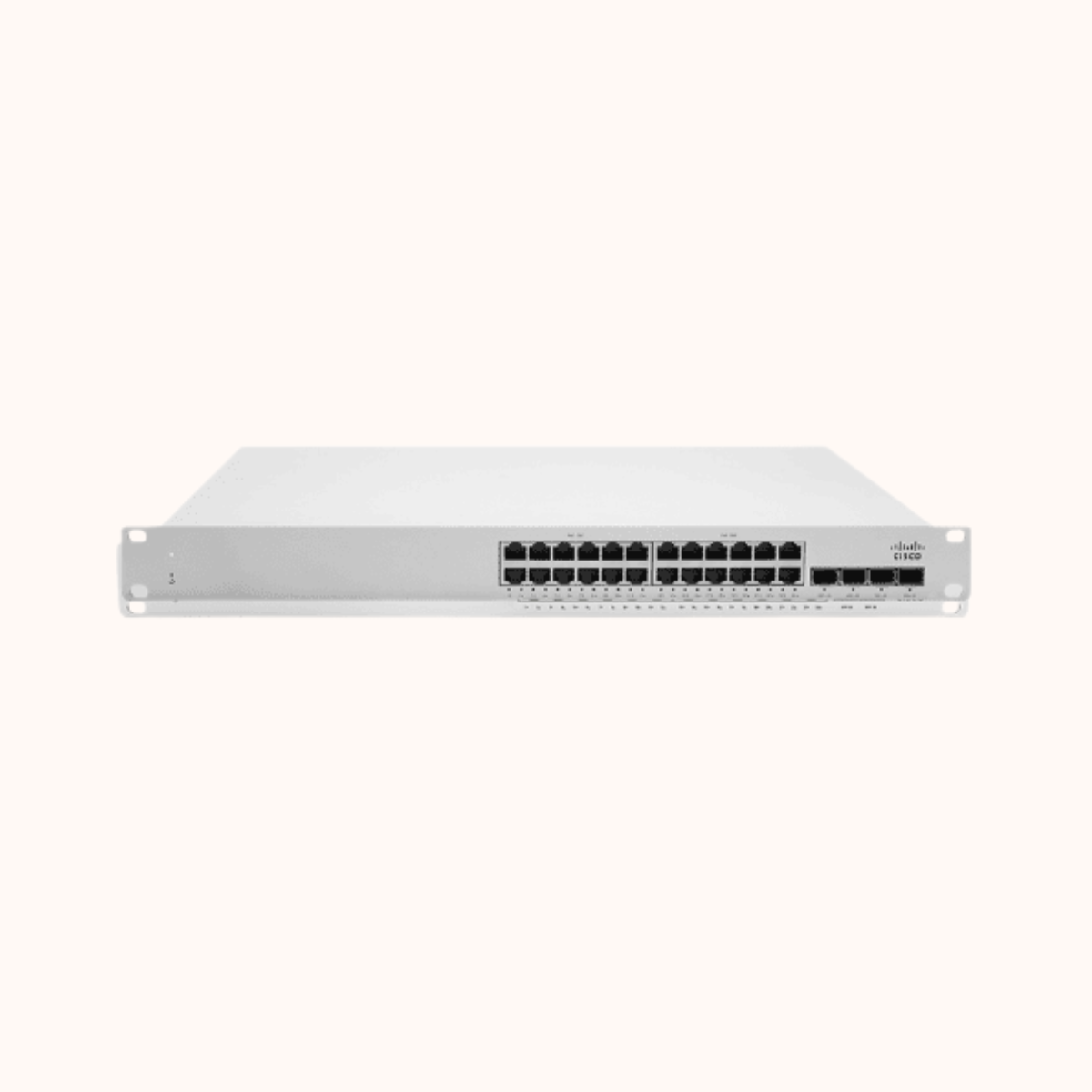

Cisco Meraki 24 Port Managed Stackable Switch - MS225-24
Feature | Description |
|---|---|
PoE+ Support (24P Model) | Delivers up to 370W total PoE/PoE+ budget, with 30W max per port |
Advanced Security | Includes 802.1X, MAC whitelisting, DHCP snooping, sticky MAC, ACLs |
Intelligent PoE Allocation | Uses LLDP for dynamic power allocation based on connected device requirements |
Redundant Power Support | Supports Cisco RPS2300 for backup power in critical network environments |
Feature | Description |
|---|---|
Interfaces | 24 × 1GbE RJ45 (PoE+), 4 × 10G SFP+ uplinks, 2 × stacking interfaces |
PoE Support | 802.3af/802.3at PoE+ (up to 30W per port), 370W max PoE budget (24P model) |
Management | Cloud-managed via Meraki Dashboard, zero-touch provisioning |
Monitoring & Logging | Usage stats per port/client, SNMP, SYSLOG, DHCP & hostname fingerprinting |
Remote Diagnostics | Email/SMS alerts, cable testing, live packet capture, topology mapping |
Stacking | Physical: Up to 8 switches (80 Gbps), Virtual stacking supported |
Switching Capabilities | QoS (802.1p), VLAN (802.1Q - 4095), RSTP/STP, LACP, CDP/LLDP, IGMP snooping |
MAC Table Size | 16K entries (24-port model) |
Security | 2FA, RBAC, 802.1X, MAB, Sticky MAC, ACLs, DHCP snooping, BPDU & Root Guard |
Layer 3 Features | Static Routing (up to 16 routes), DHCP Relay |
Performance | 128 Gbps switching, 95.24 mpps forwarding, 9600-byte jumbo frames, flow control |
Power Input | 100–240V AC, 47–63 Hz, 15–448W power consumption |
RPS Support | Cisco RPS-2300 support via dedicated interface |
Mounting Options | 1U rack-mountable, 2-post front mount, desktop feet included |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- Rack MountingYes
