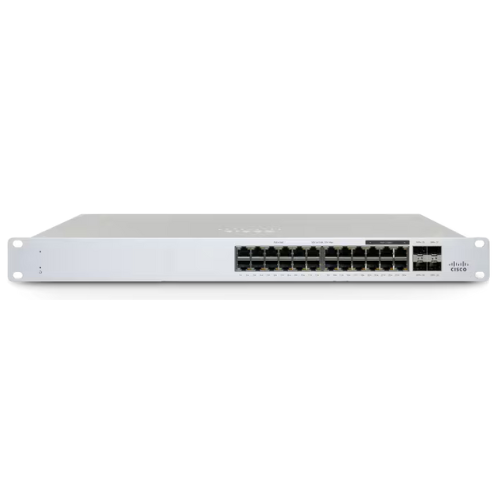

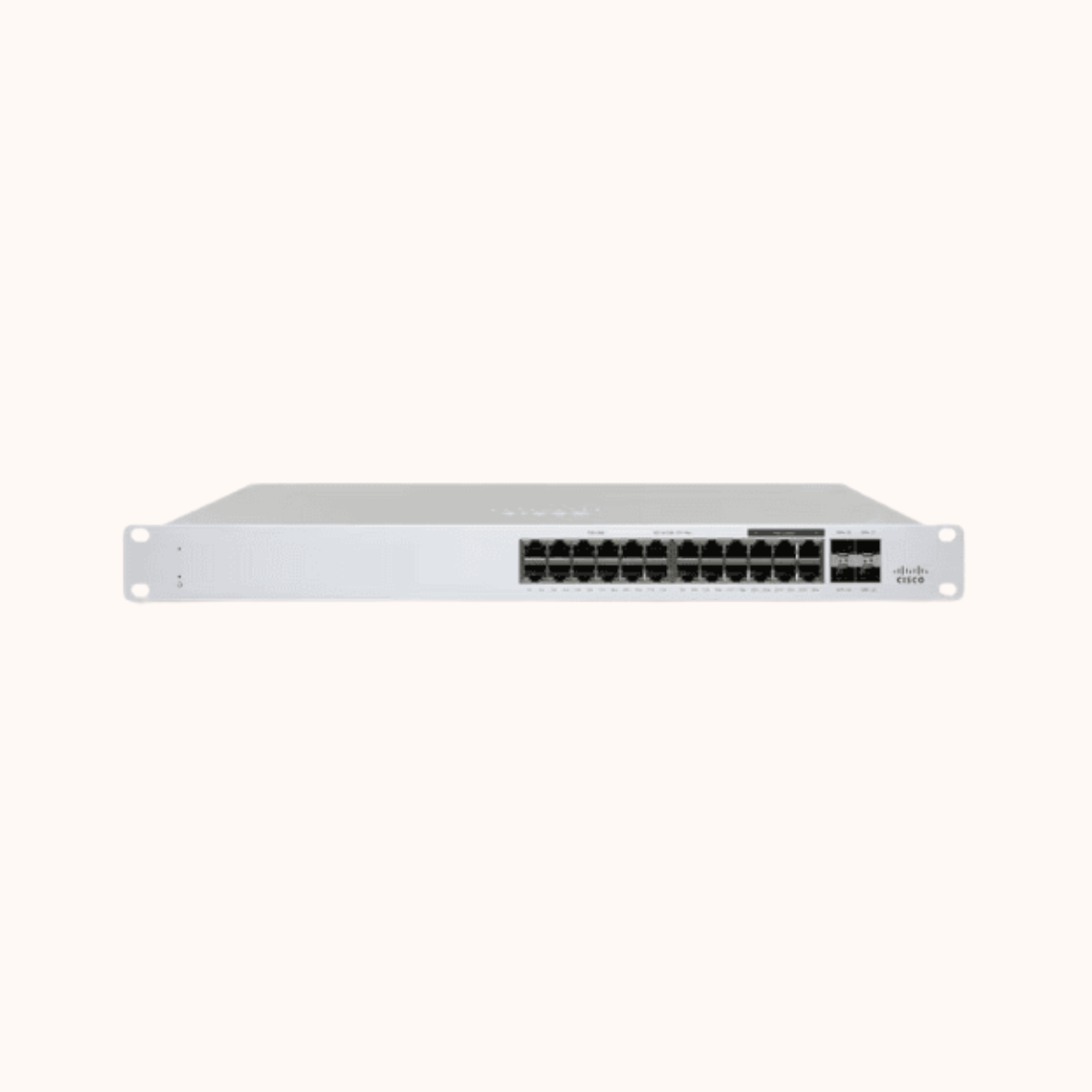

Cisco Meraki 24 Port Switch - MS130-24P
Feature | Description |
|---|---|
PoE/PoE+ Support | Provides up to 370W PoE power |
High-Speed Uplink Options | Optional 6 × 2.5 GbE mGig ports and 4 × 10G SFP+ uplinks |
Centralized Management | Configure thousands of ports via the Meraki Dashboard |
Security & Access Control | Supports Layer 2 features and 802.1X authentication |
Future-Ready Hardware | MS130 mGig (-X) models support Adaptive Policy with future firmware and license |
Feature | Description |
|---|---|
Port Configuration | 24 × 1GbE RJ45, 4 × 1GbE SFP |
Management Interface | 1 × Dedicated Mgmt Port |
PoE/PoE+ Support | Up to 370W PoE budget |
Switching Capacity | 128 Gbps |
Power Input | 100–240V~, 8A–4A, 50–60Hz |
Power Load (Idle/Max) | 32W / 406W |
Power Consumption Range | 8W – 808W |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 5% to 95% |
Mounting | Integrated 1U Rack Mount |
Power Supply | Fixed Internal |
Fan Operation | Fixed Internal |
Dimensions (H × W × D) | 1.73 × 17.32 × 10 in (4.4 × 44 × 25 cm) |
Weight | 8.91 lb (4.04 kg) |
General
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
