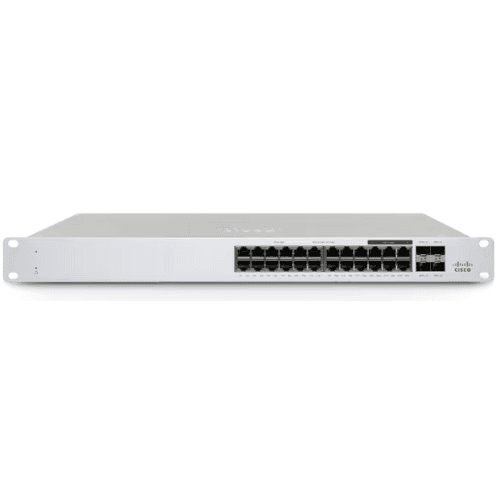

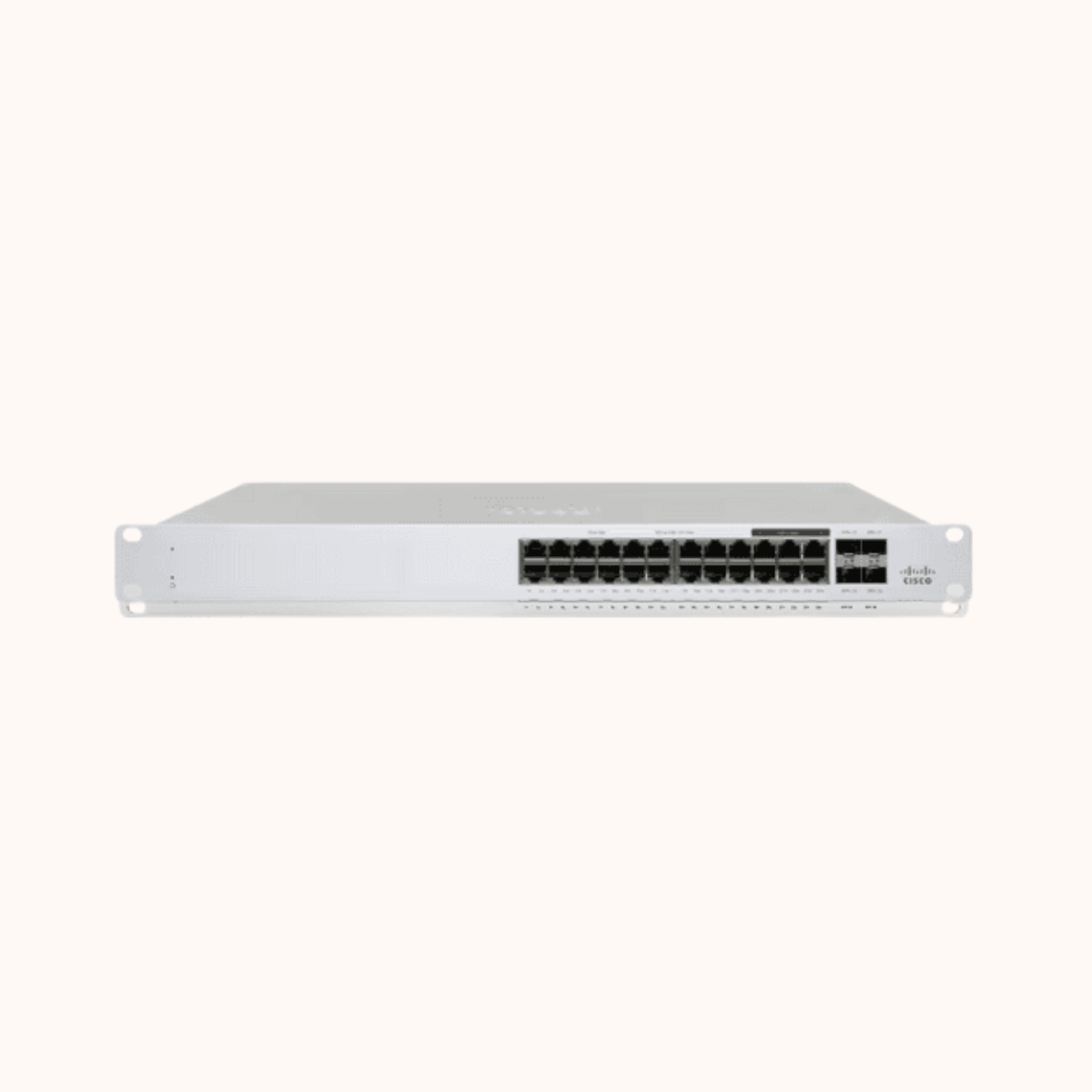

Cisco Meraki 24 Port Switch - MS130-24X
Feature | Description |
|---|---|
High PoE Power Budget | Supports up to 370W PoE/PoE+ for powering access points and IoT devices |
mGig & 10G Uplink Options | Includes 6× 2.5GbE mGig ports and 4× 10G SFP+ uplinks for high-speed connectivity |
Centralized Cloud Management | Configure and manage thousands of ports via the Meraki Dashboard |
Adaptive Policy Ready | mGig (-X) models support Adaptive Policy with firmware upgrade & advanced license |
Feature | Description |
|---|---|
1GbE RJ45 Ports | 18 |
2.5GbE mGig Ports | 6 |
1GbE SFP Ports | — |
10GbE SFP+ Ports | 4 |
Dedicated Mgmt Interface | 1 |
PoE/PoE+ Power Budget | 370W |
Power Input | 100–240V~, 8A–4A, 50–60Hz |
Power Load (Idle/Max) | 50W / 421W |
Power Consumption | 8W – 808W |
Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
Humidity | 5% to 95% |
Mounting | Integrated 1U Rack mount |
Switching Capacity | 146 Gbps |
Power Supply | Fixed Internal |
Fan Operation | Fixed Internal |
Dimensions (H × W × D) | 1.73 × 17.32 × 10 in (4.4 × 44 × 25 cm) |
Weight | 9.37 lb (4.25 kg) |
What’s in the Box | MS130 Switch |
General
- TypesManaged
- Switching Capacity140 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports18
- No. Of Power Supplies Supported1
- Rack MountingYes
