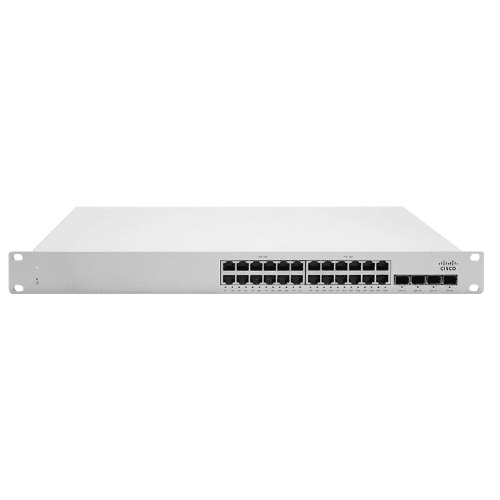

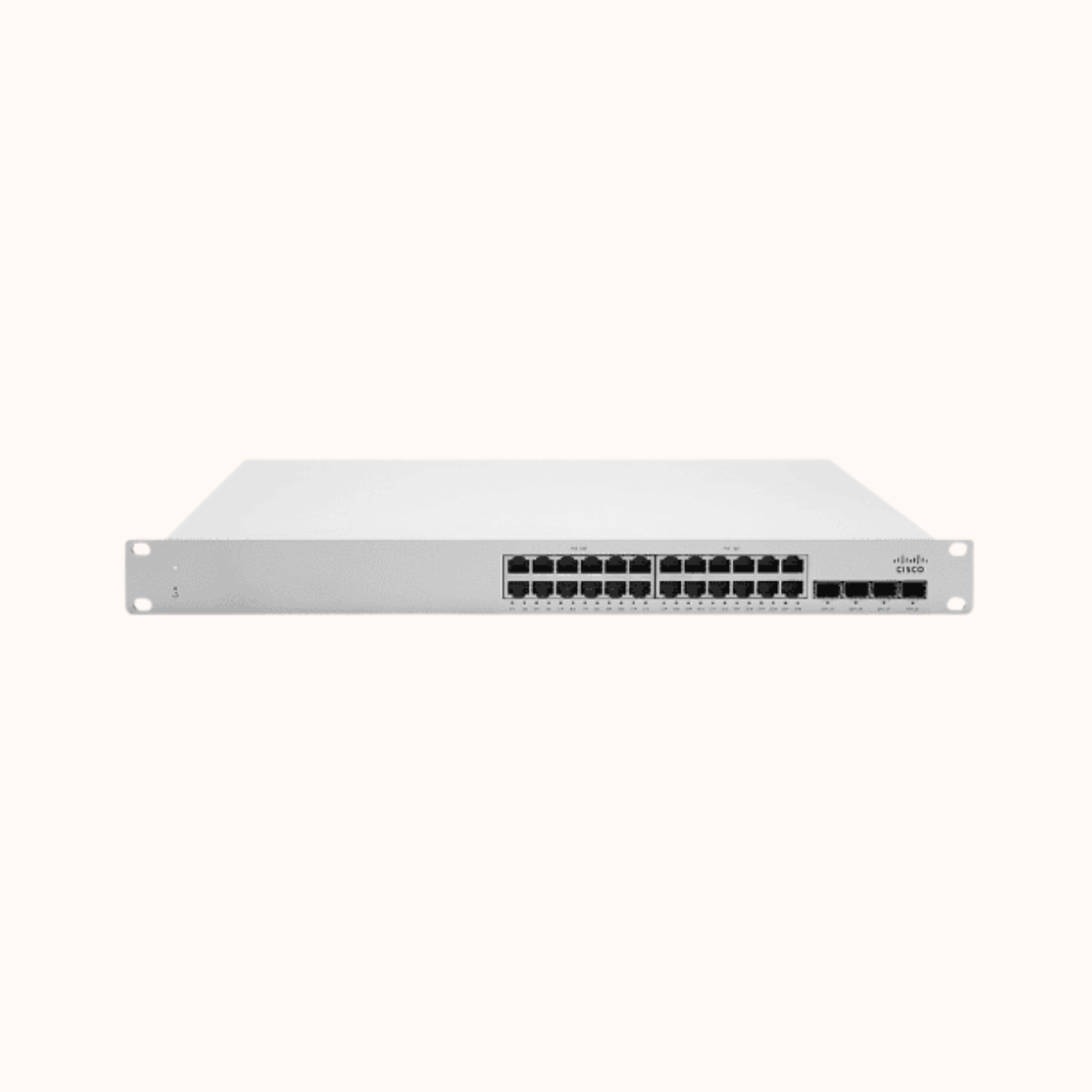

Cisco Meraki 24 Port Switch - MS225-24P
Feature | Description |
|---|---|
Ethernet Ports | 24 × 10/100/1000BASE-T RJ45 with auto-MDIX crossover |
Uplink Ports | 4 × 10G SFP+ uplink interfaces |
Stacking Ports | 2 × stacking interfaces (up to 8 switches, 80 Gbps bandwidth) |
PoE Support | 802.3af/802.3at PoE+ on all ports, max 30W per port, 370W total PoE budget |
Management | Cloud-managed via Meraki Dashboard, SNMP, SYSLOG, firmware scheduling |
Remote Diagnostics | Email/SMS alerts, cable test, packet capture, topology view |
Virtual Stacking | Yes, supports thousands of ports in a single logical stack |
QoS Support | 802.1p Quality of Service, 802.1Q VLAN tagging (up to 4,095 VLANs) |
Spanning Tree Protocol | 802.1w, 802.1D, with enhancements: BPDU guard, Root guard |
Link Aggregation | 802.3ad LACP (up to 8 ports), Multichassis aggregates supported |
MAC Table Size | 16K entries |
Security Features | 2FA, RBAC, 802.1X, MAB, Sticky MAC, DHCP snooping, IPv4 ACLs |
Layer 3 Features | Static Routing (max 16 routes), DHCP Relay |
Switching Capacity | 128 Gbps |
Forwarding Rate | 95.24 mpps |
Jumbo Frame Support | Up to 9600 bytes |
Power Input | 100–240V AC, 47–63 Hz |
Power Consumption | 15–448W |
Redundant Power Supply (RPS) | Yes, compatible with Cisco RPS-2300 |
Mounting | 1U Rack-mountable, 2-post front or desktop mounting options |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports24
- No. Of SFP Ports4
- Rack MountingYes
