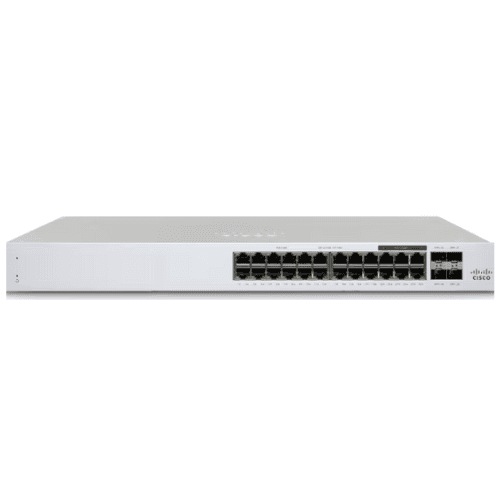

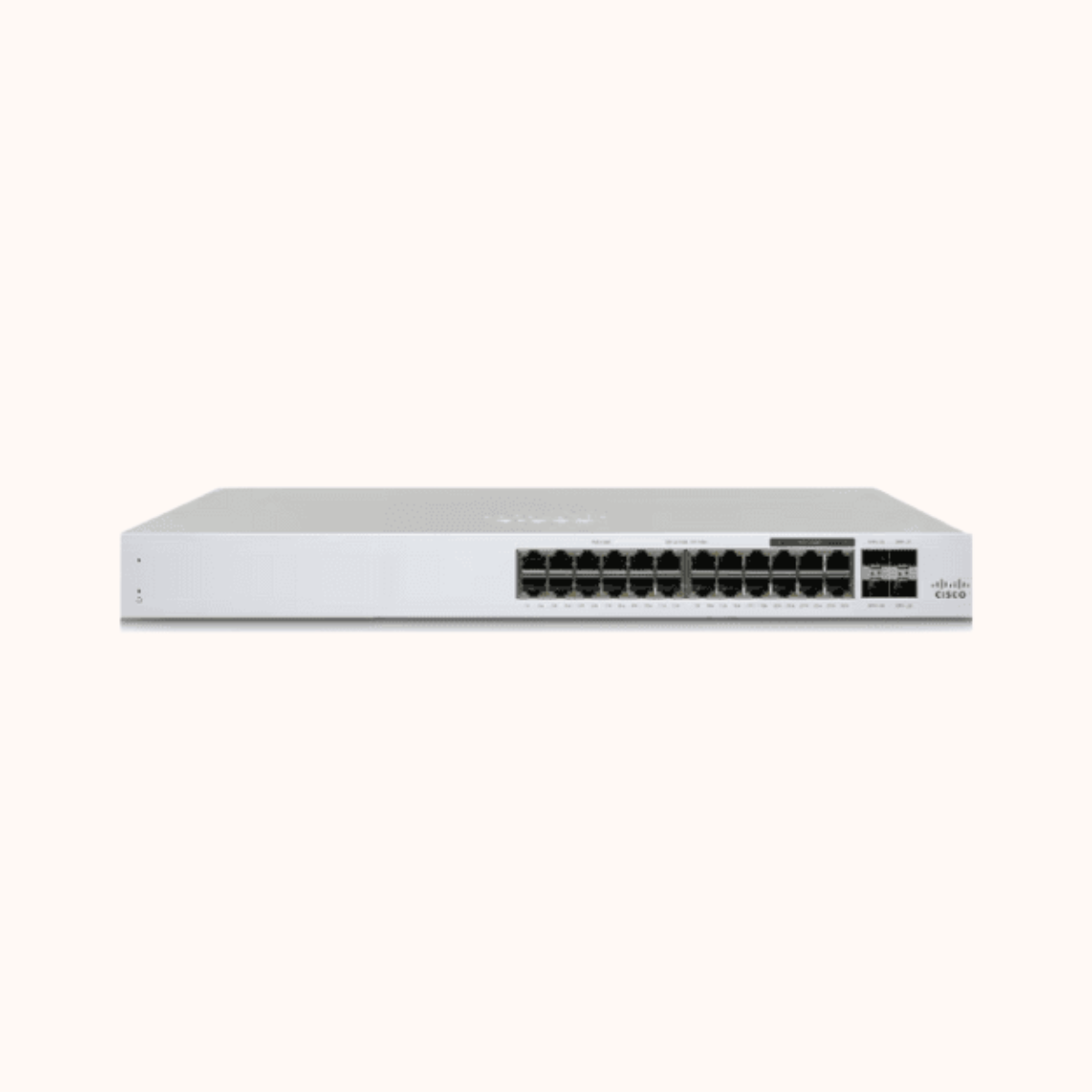

Cisco Meraki 24 Port switch-MS130-24
Feature | Description |
|---|---|
Port Configuration | 24 × 1G RJ45 ports and 4 × 1G SFP uplink ports |
High Switching Capacity | Delivers up to 128 Gbps switching performance |
Cloud Managed | Managed via Meraki Dashboard with zero-touch provisioning |
Rack Mountable | Integrated 1U rack mount with fixed internal power and fan |
Specification | Details |
|---|---|
1GbE RJ45 Ports | 24 |
mGbE RJ45 Ports | — |
1GbE SFP Ports | 4 |
10GbE SFP+ Ports | — |
Dedicated Management Interface | 1 |
PoE/PoE+ Capable | — |
Power Input | 100–240V~, 1.5–0.85A, 50–60Hz |
Power Load (Idle/Max) | 15W / 15W |
Power Consumption Range | 8 – 808W |
Operating Temperature | 32°F – 113°F / 0°C – 45°C |
Storage Temperature | -4°F – 158°F / -20°C – 70°C |
Humidity Tolerance | 5% to 95% |
Mounting Option | Integrated 1U Rack Mount |
Switching Capacity | 128 Gbps |
Power Supply | Fixed Internal |
Fan Operation | Fixed Internal |
Dimensions (H × W × D) | 1.73 × 17.32 × 10 in / 4.4 × 44 × 25 cm |
Weight | 7.19 lb / 3.26 kg |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
