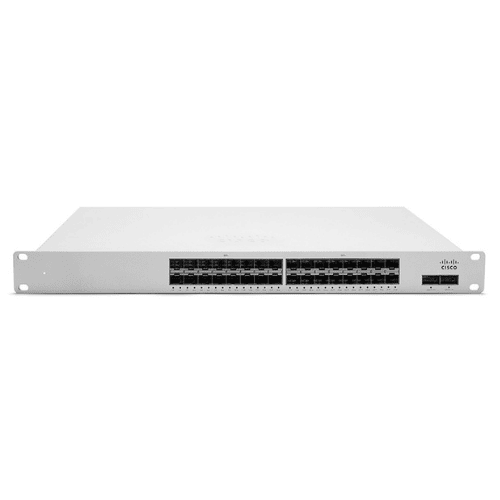

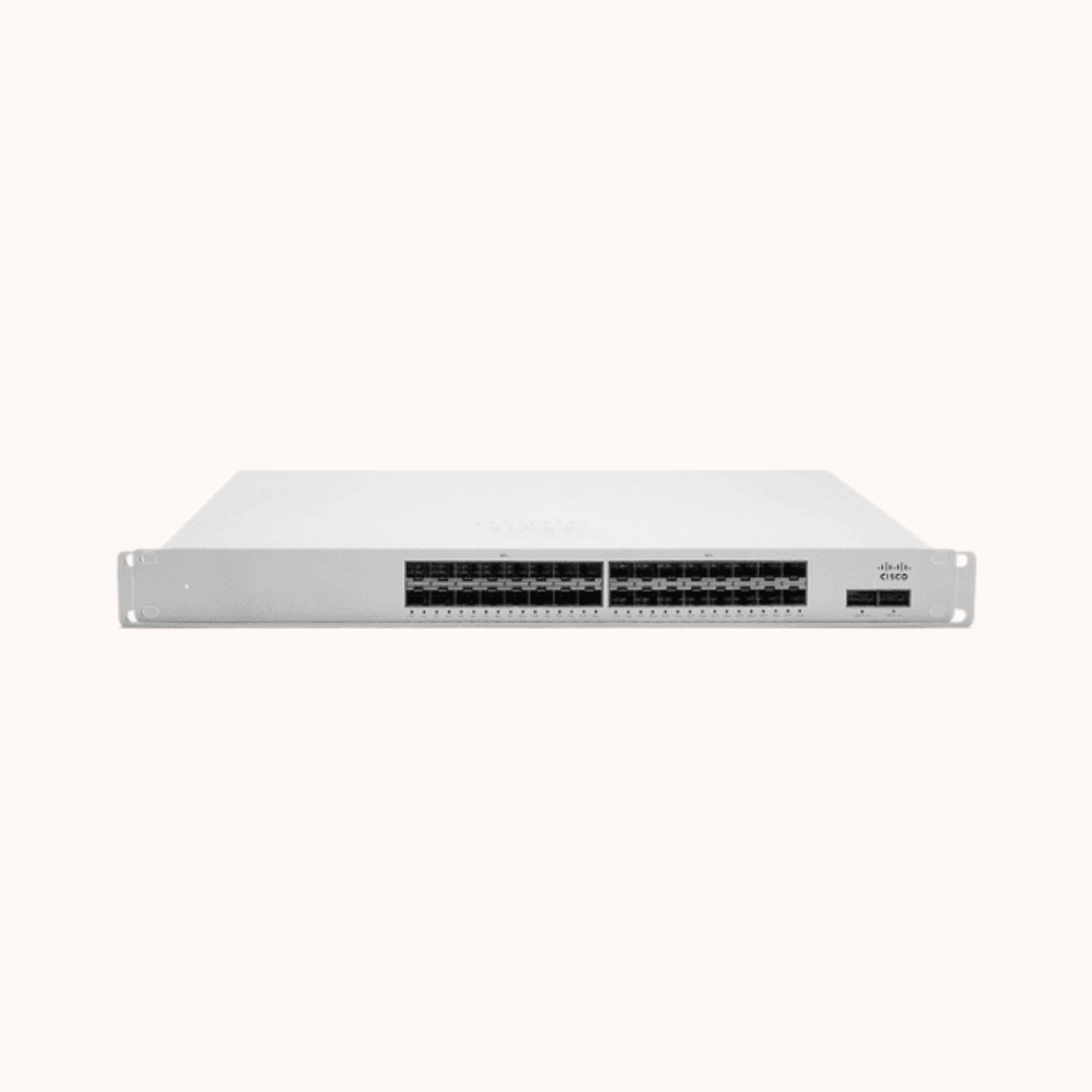

Cisco Meraki 32 Port Cloud Managed Aggregation Switch - MS425-32
Out of stock Out of stock Out of stock Out of stock Out of stock
Cloud Managed Aggregation Switching for the Campus:
Category | Specifications / Features |
|---|
Interfaces | - 32 × 10GbE SFP+ ports
- 2 × 40GbE QSFP+ uplink/stacking ports
- 1 × 10/100/1000 RJ45 management port |
Switching Capabilities | - 802.1p QoS prioritization
- 802.1Q VLAN tagging (up to 4095 VLANs)
- STP/RSTP (802.1D, 802.1w)
- LLDP (802.1ab)
- Link Aggregation (802.3ad, 8 ports per LAG)
- Broadcast storm control
- IGMP Snooping
- Forwarding Table: 128K entries |
Layer 3 Capabilities | - OSPFv2 dynamic routing
- Static routing
- DHCP Server & Relay
- DHCP Failover
- Warm Spare Gateway Redundancy (VRRP) |
Product Details
Specifications
Product Details
Product Details
Security | - IEEE 802.1X port-based security
- Role-based admin access
- Two-factor authentication
- Enforce global password policy |
Performance | - Switching capacity: 480 Gbps
- Non-blocking architecture |
Management | - Managed via Meraki cloud dashboard
- Integrated with Meraki wireless & security appliances
- Remote provisioning
- SNMP support
- Historical usage data per port/client
- Firmware upgrades via cloud |
Remote Diagnostics | - Email and SMS alerts
- Remote packet capture
- Combined event & config logs with search |
Stacking | - Virtual stacking for thousands of ports
- Physical stacking (up to 8 switches, 160 Gbps bandwidth) |
Power & Cooling | - Input: 100–240 VAC, 47–63 Hz
- Idle: 98W / Full Load: 136W
- Hot-swappable power supplies and fans
- Front-to-back airflow |
Environmental | - Operating Temp: 0°C to 40°C (32°F to 104°F) |
Physical Specs | - Dimensions: 19" (W) × 19.2" (L) × 1.8" (H) — 48.5 × 48.7 × 4.5 cm
- Weight: 13.7 lb (6.2 kg) |
Certifications | - CSA (US), IC (Canada), CE (Europe), C-Tick (AU/NZ), RoHS |
