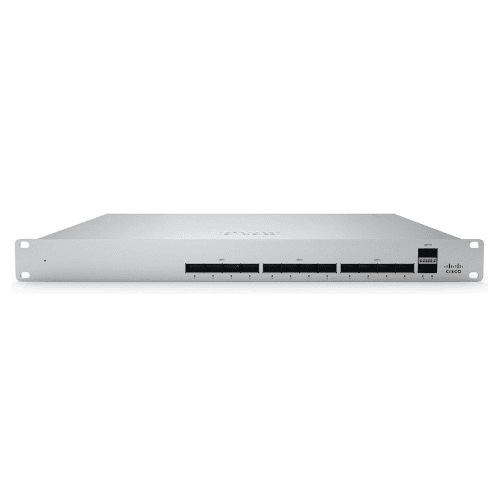

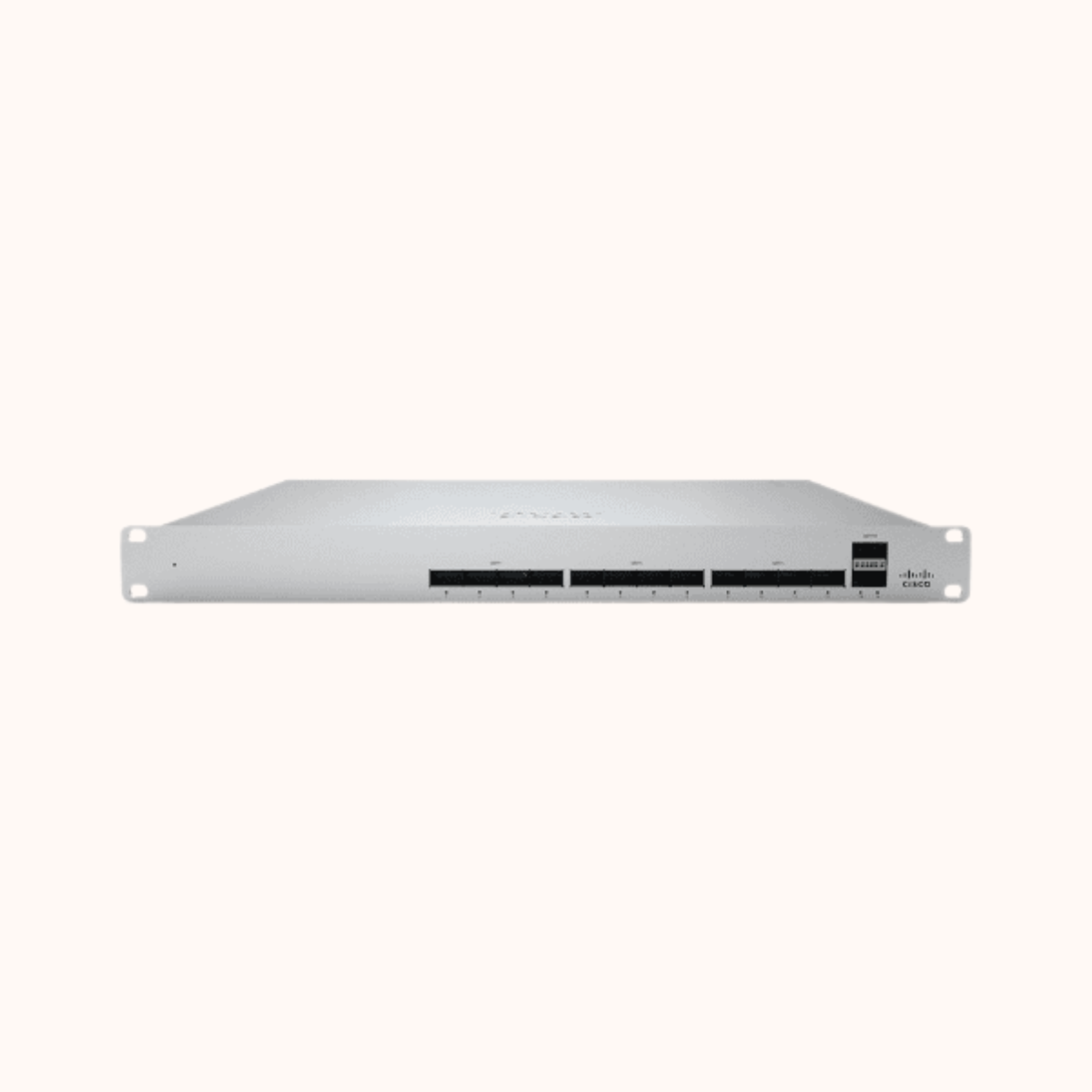

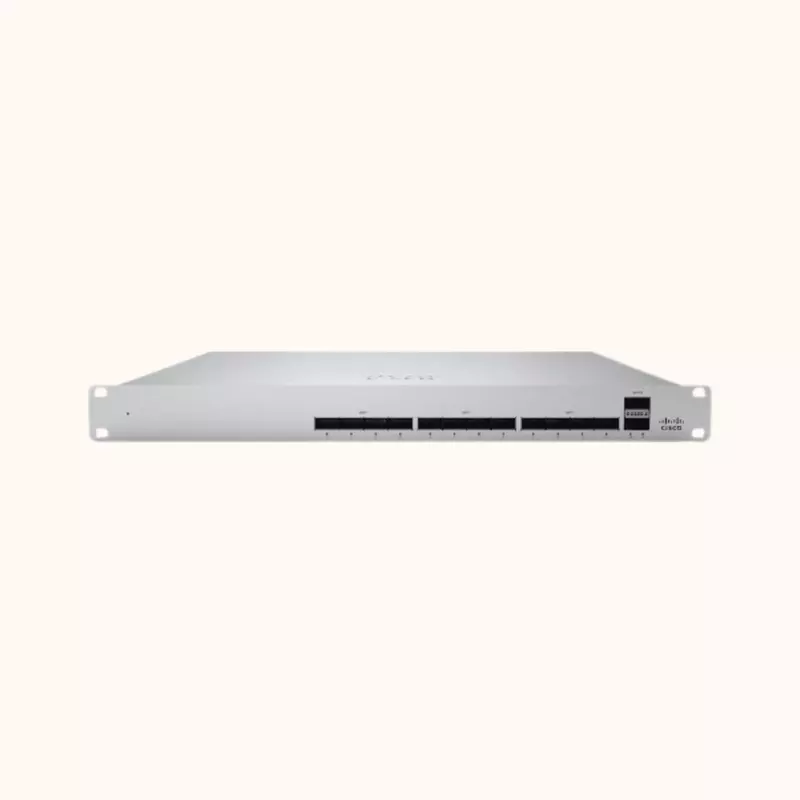

Cisco Meraki 40G fiber aggregation switch - MS450-12

Layer 3 Capabilities

- Static routing
- OSPFv2
- Multicast routing
- DHCP Server & Relay
- Warm Spare Redundancy (VRRP)

Switching Features

- 802.1p QoS with 8 queues (6 configurable)
- 802.1Q VLAN (up to 4094 VLANs)
- STP: 802.1w, 802.1D
- STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
- Broadcast storm control
- Link aggregation (802.3ad), MC-LAG support
- IGMP Snooping for multicast filtering
- 64K MAC forwarding entries

Performance

- Switching capacity: 1.36 Tbps
- Forwarding rate: 654.76 mpps
- Jumbo frames up to 9578 bytes
- Non-blocking architecture

Power & Cooling

- Power input: 100–240 VAC, 47–63 Hz
- Power consumption: 57–138 W
- Front-to-back airflow
- Field-replaceable hot-swappable power supplies and fans

Environment

- Operating Temp: 0°C to 45°C
- Humidity: 5% to 95% (non-condensing)

Mounting

- 1U Rack-mountable (4-post rack kit included)
