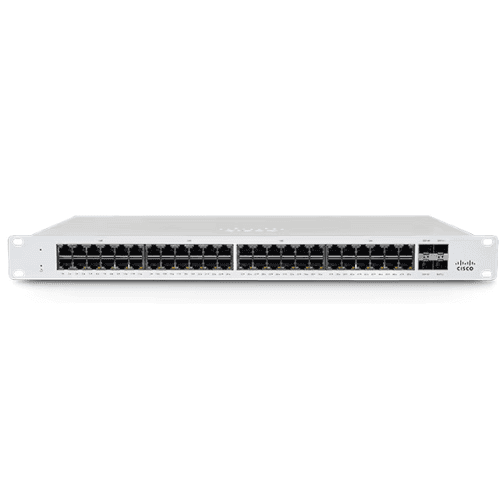

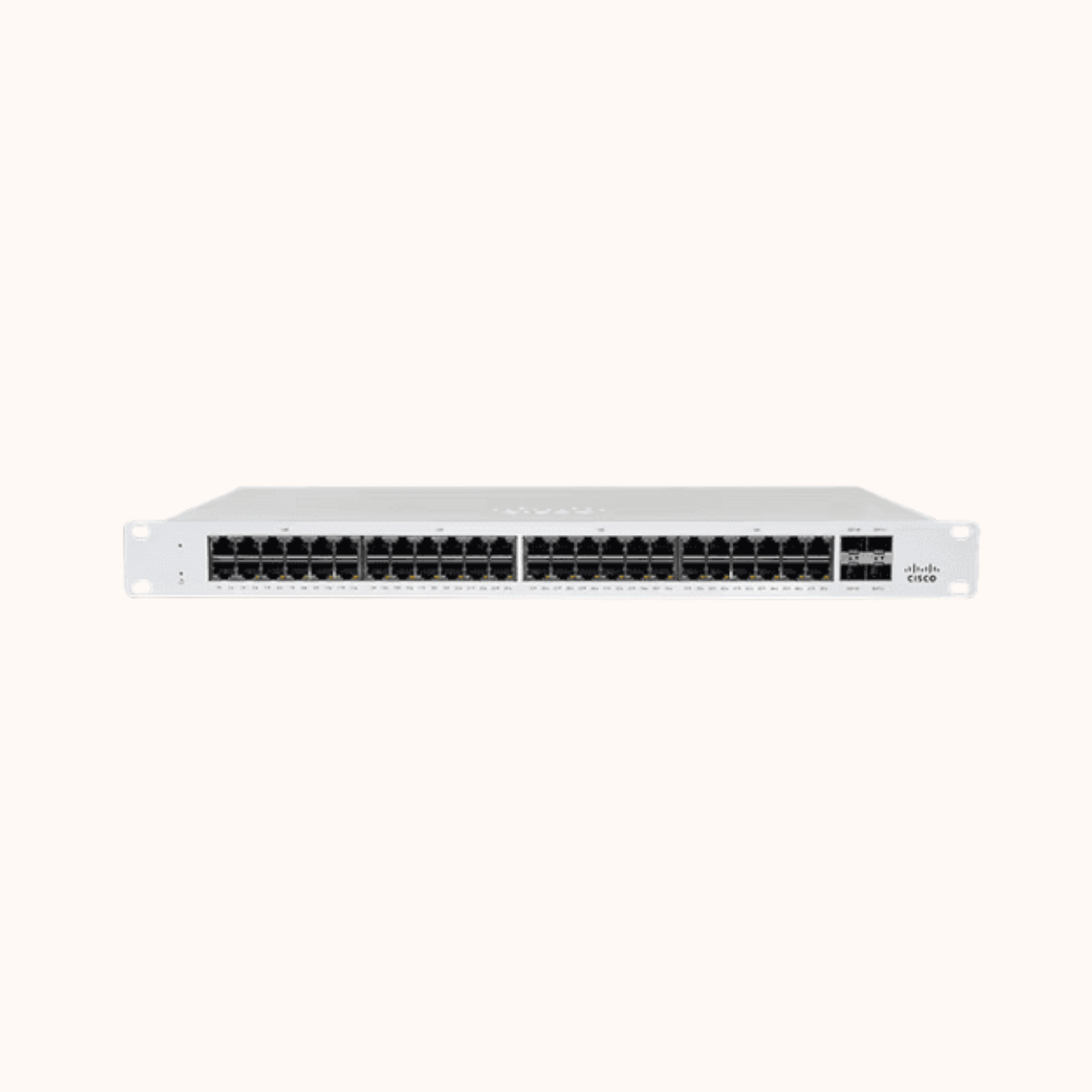

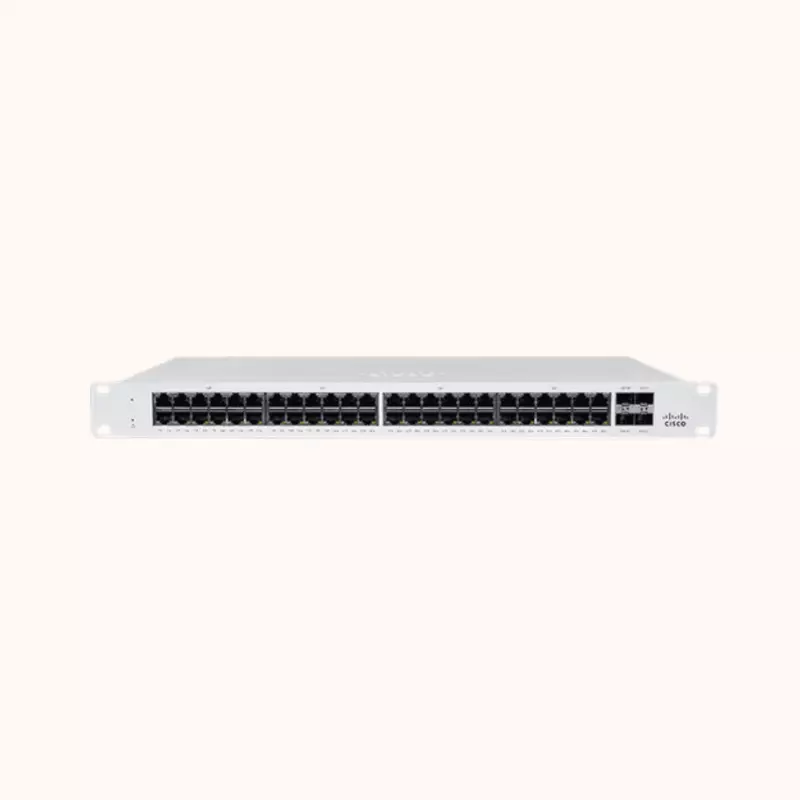

Cisco Meraki 48 Port - MS130-48
Feature | Description |
|---|---|
PoE/PoE+ Options | Supports up to 740W total PoE budget |
High-Speed Uplink & mGig Ports | Optional 8 × 2.5GbE mGig ports and 4 × 10G SFP+ uplinks |
Centralized Management | Configure thousands of ports via Meraki Dashboard |
Network Access Control | Layer 2 switching with 802.1X authentication support |
Adaptive Policy Ready | mGig (-X) models support Adaptive Policy with future firmware and license |
Feature | Description |
|---|---|
Port Configuration | 48 × 1GbE RJ45, 4 × 1GbE SFP |
Management Interface | 1 × Dedicated Mgmt Port |
PoE/PoE+ Support | Not supported |
Switching Capacity | 104 Gbps |
Power Input | 100–240V~, 1.5–0.85A, 50–60Hz |
Power Load (Idle/Max) | 28W / 28W |
Power Consumption Range | 8W – 808W |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 5% to 95% |
Mounting | Integrated 1U Rack Mount |
Power Supply | Fixed Internal |
Fan Operation | Fixed Internal |
Dimensions (H × W × D) | 1.73 × 17.32 × 10 in (4.4 × 44 × 25 cm) |
Weight | 8.14 lb (3.69 kg) |
What's in the Box | MS130 switch |
General
- Switching Capacity104 Gbit/s
- No. Of SFP Ports1
- No. Of RJ45 Ports48
- No. Of Power Supplies Supported1
- Rack MountingYes
