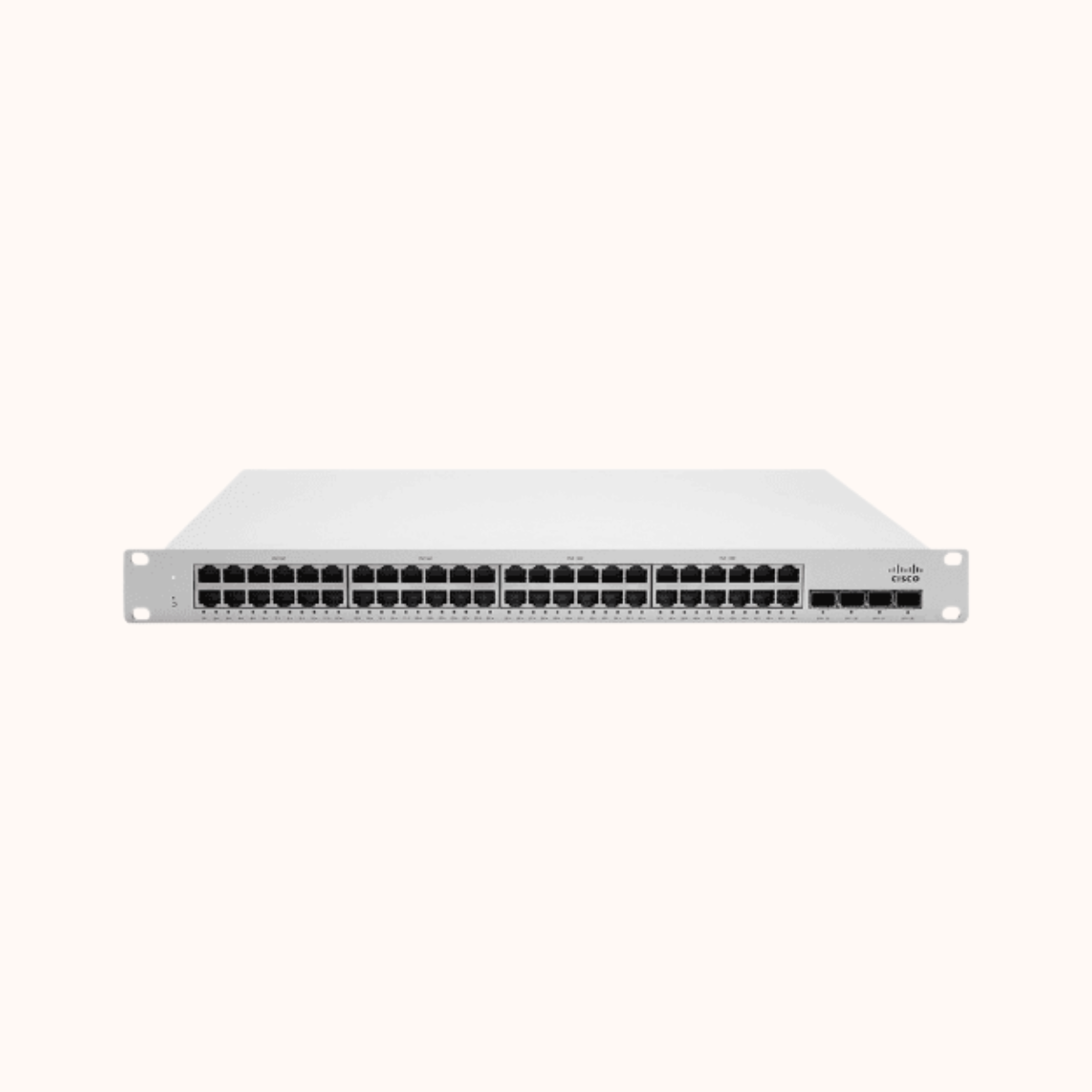

Cisco Meraki 48 Port Cloud Managed Stackable Switch - MS225-48FP
Feature Area | Key Point |
|---|---|
Advanced Uplinks | 4 × 10G SFP+ ports enable high-speed backbone and uplink connectivity |
Remote Diagnostics | Includes cable testing, link failure alerts, and live packet capture |
Real-Time Visibility | Dynamic topology view with per-port and per-client historical usage stats |
Seamless Updates | Cloud-based firmware upgrades with full scheduling and version control |
Category | Key Feature |
|---|---|
Interfaces | 48 × Gigabit RJ45 ports with PoE/PoE+ (up to 30W per port) |
4 × 10G SFP+ uplink ports, 2 × stacking interfaces | |
Management | Meraki cloud-based dashboard with zero-touch deployment |
Integrated with Meraki wireless and security suite | |
Stacking | Physical stacking (up to 8 switches, 80 Gbps), Virtual stacking supported |
Ethernet Switching | VLANs (up to 4,095), QoS, Link Aggregation, IGMP snooping, Storm Control |
MAC forwarding entries: 32K on 48-port models | |
Security | 2FA, RBAC, 802.1X, MAC auth, Sticky MAC, DHCP snooping, IPv4 ACLs |
PoE Power | PoE budget: 740W (48FP), PoE available on all ports |
Performance | Switching capacity: 176 Gbps, Forwarding rate: 127.98 mpps |
Layer 3 Capabilities | Static Routing and DHCP Relay supported |
Power & Mounting | Input: 100–240V AC, Power: 25–882W, RPS-2300 compatible, 1U Rack/Desktop mountable |
General
- TypesManaged
- Switching Capacity176 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports48
- Rack MountingYes
