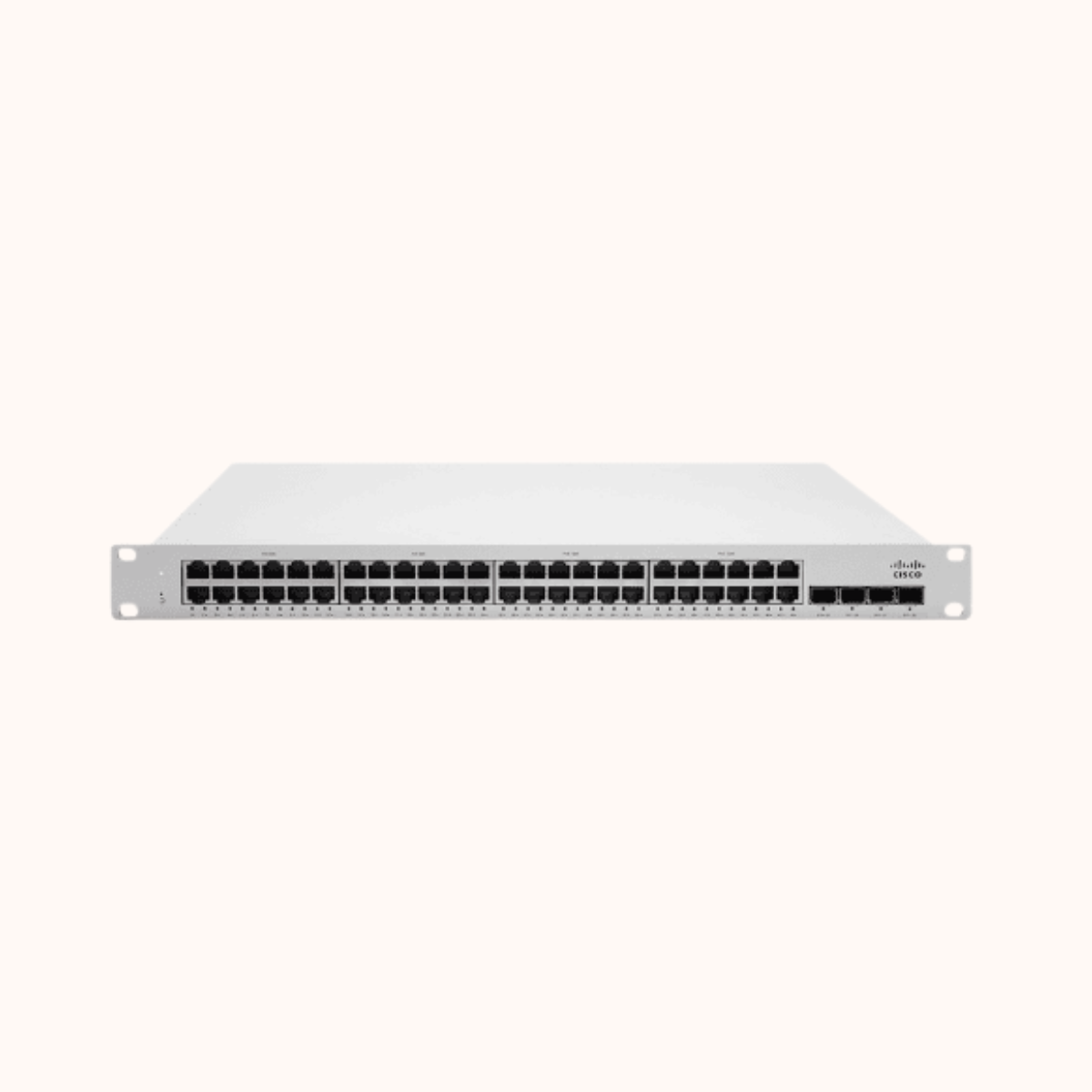

Cisco Meraki 48 Port Cloud Managed Stackable Switch - MS225-48LP
Feature Area | Key Point |
|---|---|
Advanced Uplink | Equipped with 4 × 10G SFP+ ports for high-speed uplinks and redundancy |
Remote Diagnostics | Features cable testing, live packet capture, and automated link failure alerts |
Firmware Management | Cloud-based seamless firmware upgrades with full version control |
Event Logging & Topology | Real-time network discovery with aggregated event and config change logs |
Category | Key Feature |
|---|---|
Interfaces | 48 × Gigabit RJ45 ports with PoE/PoE+ support (up to 30W per port) |
4 × 10G SFP+ uplink ports, 2 × stacking interfaces | |
Management | Cloud-managed via Meraki Dashboard with zero-touch deployment |
Integrated with Meraki’s wireless and security suite | |
Stacking | Physical stacking (up to 8 switches, 80 Gbps), Virtual stacking for scale |
Ethernet Switching | VLAN support, QoS, Link Aggregation, IGMP Snooping, Storm Control |
MAC entries: 32K on 48-port models | |
Security | 2FA, RBAC, 802.1X, MAC auth, DHCP snooping, Sticky MAC, IPv4 ACLs |
PoE Power | Total PoE output: 370W (48LP), 740W (48FP) with PoE on all ports |
Performance | Switching capacity: 176 Gbps, Forwarding rate: 127.98 mpps |
Layer 3 Capabilities | Supports Static Routing and DHCP Relay |
Power & Mounting | Input: 100–240V AC, Power: 25–882W, RPS-2300 compatible, 1U Rack/Desktop mountable |
General
- TypesManaged
- Switching Capacity176 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports48
- Rack MountingYes
