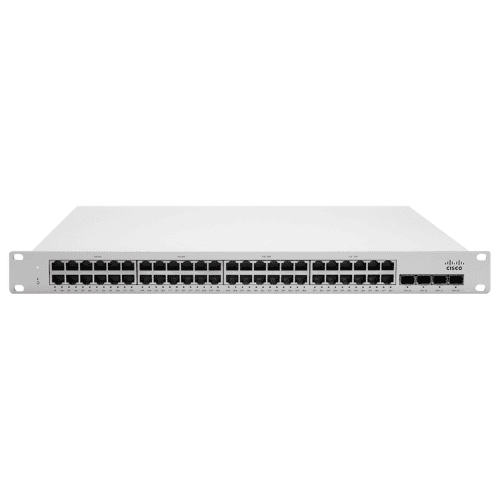

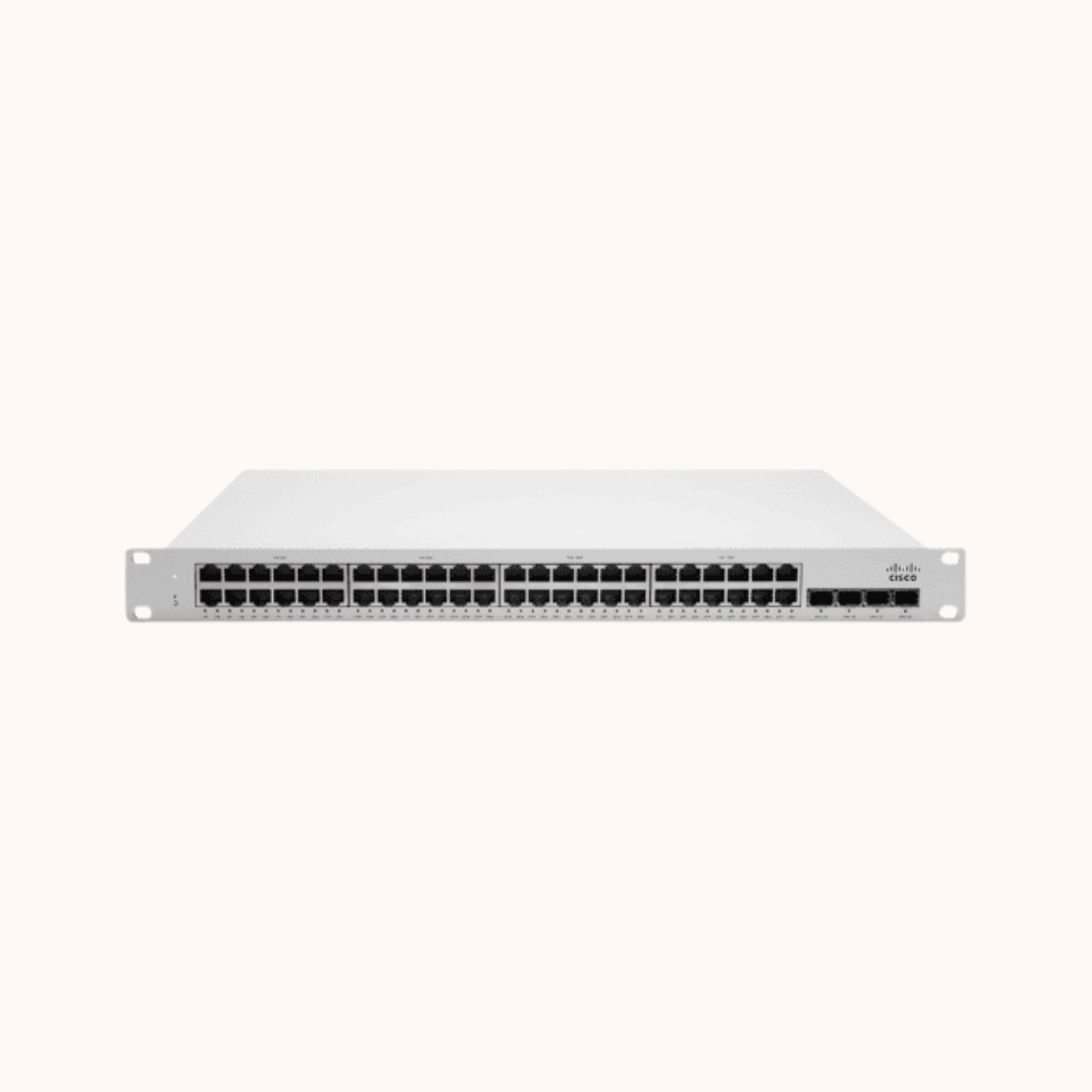

Cisco Meraki 48 Port Cloud Managed Stackable Switch - MS250-48
Feature Area | Key Point |
|---|---|
High-Speed Uplinks | 4 × 10G SFP+ ports provide high-throughput backbone and uplink connectivity |
Remote Troubleshooting | Live remote packet capture, cable testing, and link failure detection |
Automated Upgrades | Seamless over-the-web firmware upgrades with scheduling and control |
Network Visibility | Dynamic network topology and detailed per-port/client usage statistics |
Category | Key Feature |
|---|---|
Interfaces | 48 × Gigabit RJ45 ports with PoE/PoE+ (up to 30W per port) |
4 × 10G SFP+ uplink ports, 2 × stacking interfaces | |
Management | Meraki Dashboard cloud management with zero-touch deployment |
Fully integrated with Meraki wireless and security portfolio | |
Stacking | Physical stacking (up to 8 switches, 80 Gbps), Virtual stacking supported |
Ethernet Switching | VLANs (up to 4,095), QoS, Link Aggregation, IGMP snooping, Storm Control |
MAC forwarding entries: 32K on 48-port models | |
Security | 2FA, RBAC, 802.1X, MAC auth, DHCP snooping, ACLs, Sticky MAC |
PoE Power | Total PoE budget: 740W (48FP), PoE available on all ports |
Performance | Switching capacity: 176 Gbps, Forwarding rate: 127.98 mpps |
Layer 3 Capabilities | Static Routing and DHCP Relay |
Power & Mounting | Power: 24–874W, Input: 100–240V AC, RPS-2300 compatible, 1U rack-mountable |
General
- TypesManaged
- Switching Capacity176 Gbit/s
- No. Of RJ45 Ports48
- Rack MountingYes
