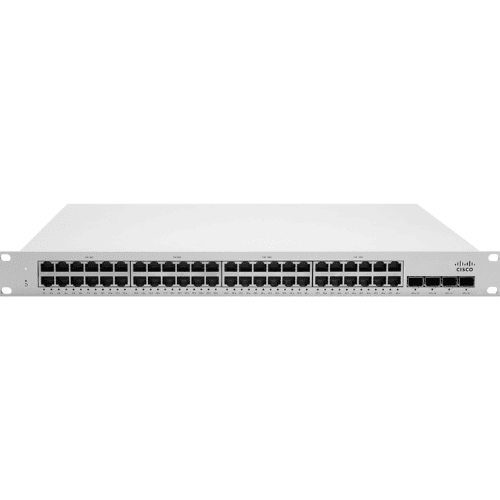

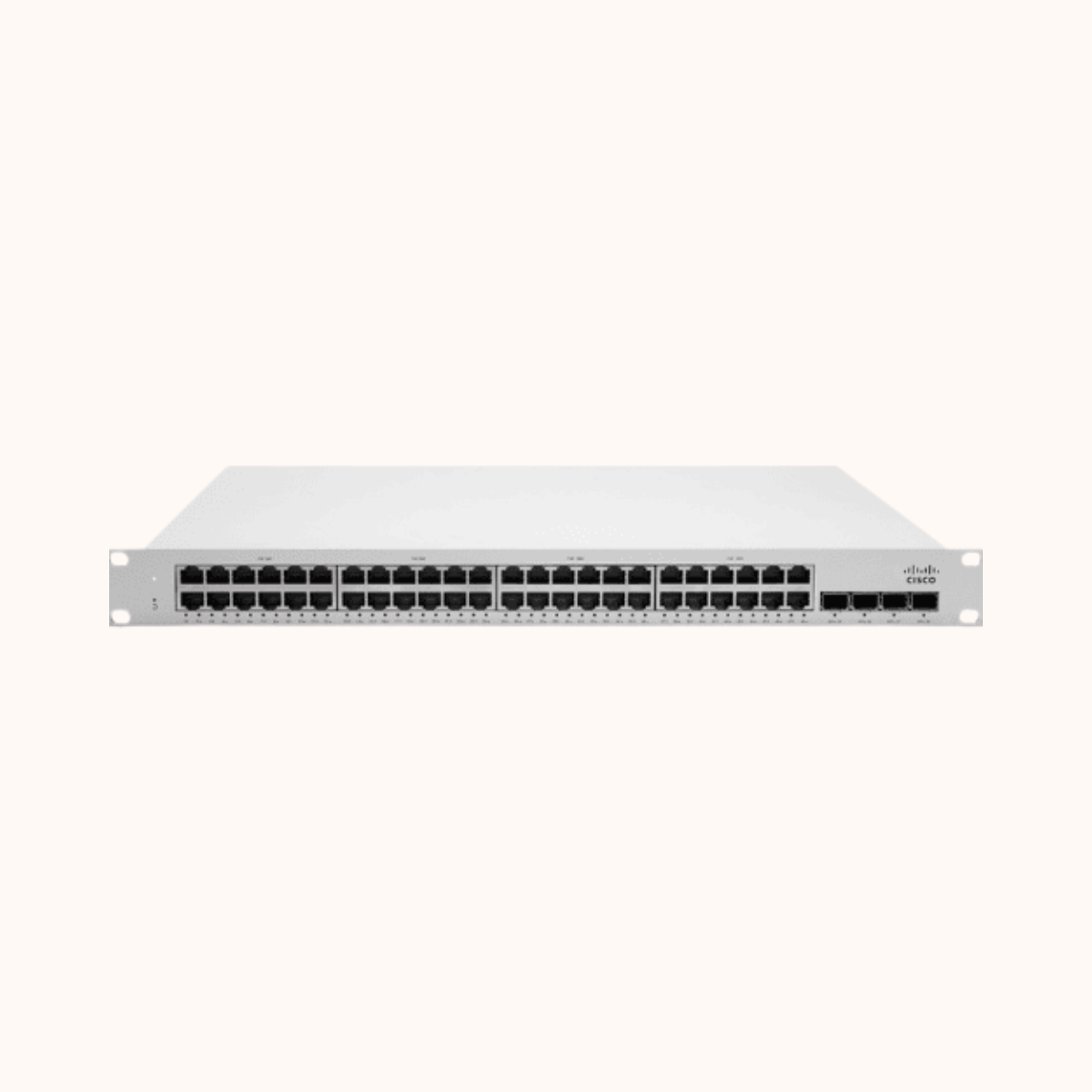

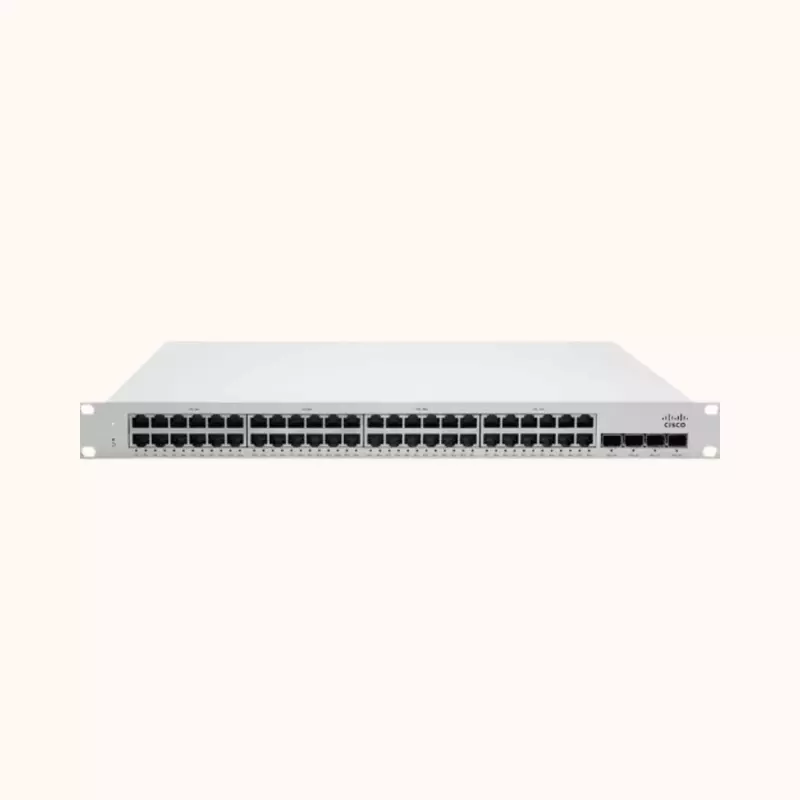

Cisco Meraki 48 Port Cloud Managed Stackable Switch - MS250-48LP
Feature Area | Key Point |
|---|---|
Stacking Capability | Supports physical stacking with 80 Gbps bandwidth for seamless scalability |
Field Serviceability | Field-replaceable power supply for minimal downtime and easy maintenance |
PoE Intelligence | Smart power allocation using LLDP/CDP to prioritize power-hungry devices |
Reliability & Warranty | Enterprise-grade hardware with low-noise design and included lifetime warranty |
Category | Key Feature |
|---|---|
Configurations | 48 × Gigabit Ethernet ports, 4 × 10G SFP+ uplinks, 80G physical stacking |
Includes 370W PoE power (MS250-48LP) and 740W option (MS250-48LPFP) | |
Hardware Platform | Voice/Video QoS, non-blocking architecture, low-noise design, lifetime warranty |
Power over Ethernet | 802.3af (15.4W) & 802.3at (25.5W) per port, intelligent LLDP/CDP PoE allocation |
PoE available on all ports simultaneously | |
Cloud Management | Centralized Meraki Dashboard with multi-site control and zero-touch provisioning |
Monitoring & Alerts | Cable testing, gateway testing, real-time troubleshooting, email/SMS notifications |
Layer 3 Capabilities | Static Routing, DHCP Server/Relay, UI-based config, VRRP warm spare with failover |
Advanced Routing | Dynamic routing (OSPFv2) supported (select models only) |
General
- TypesManaged
- Port TypeEthernet
- No. Of Ethernet Ports48
- Rack MountingYes
