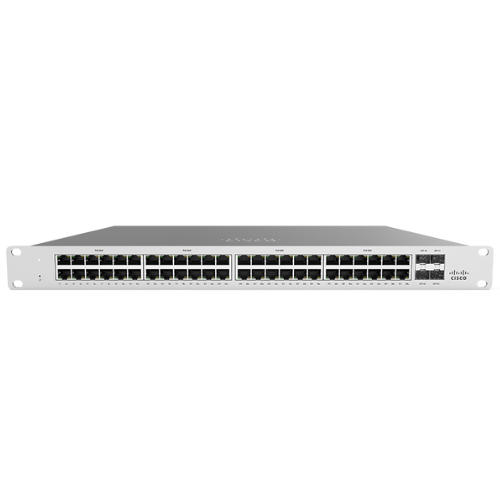

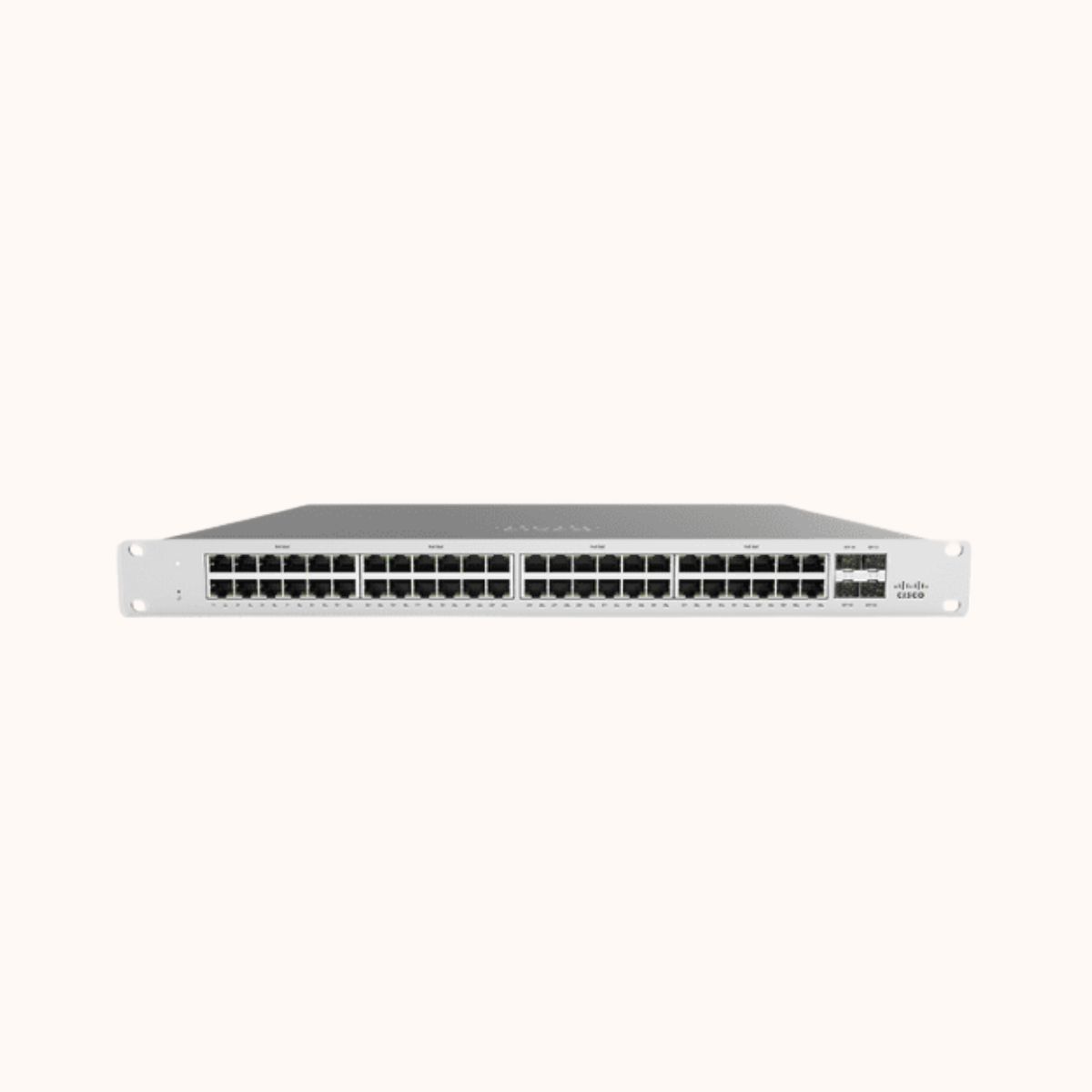

Cisco Meraki 48 Port Cloud Managed Switch - MS120-48LP
Feature | Description |
|---|---|
Cloud-Based Management | Managed via Meraki Dashboard with no need for CLI or complex setup |
Layer 2 Access Switching | Ideal for branch and campus deployments with enterprise-level performance |
Easy Deployment | Zero-touch provisioning – just plug it in with no manual configuration needed |
Centralized Visibility | Monitor network usage, capacity, and changes across multiple sites instantly |
Feature | Description |
|---|---|
Gigabit Ports | 48 × 1GbE RJ45 ports with PoE/PoE+ support |
Uplink Interfaces | 4 × 1G SFP uplink interfaces |
PoE Budget | Up to 370W PoE budget with 30W max per port |
Switching Capacity | 104 Gbps non-blocking switching capacity |
Forwarding Rate | 77.38 mpps |
Management | Cloud-managed via Meraki Dashboard, zero-touch provisioning |
Monitoring | Per-port/client stats, SNMP, Syslog, DHCP fingerprinting |
Diagnostics | Email/SMS alerts, cable test, packet capture, topology view |
Security Features | 2FA, RBAC, 802.1X, MAC whitelisting, Sticky MAC, DHCP snooping, ACLs |
Mounting Options | 1U rack-mountable, 2-post front or desktop mount with included hardware |
General
- TypesManaged
- Switching Capacity104 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports48
- Rack MountingYes
