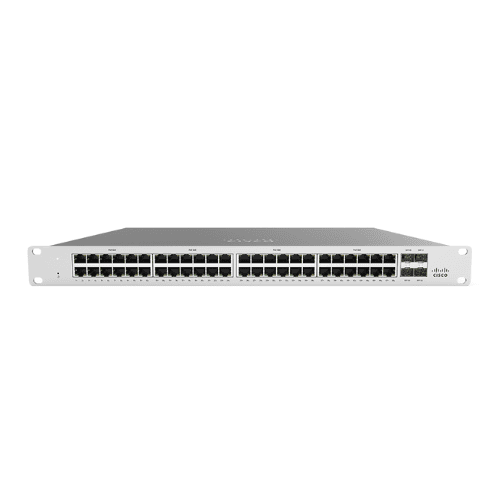

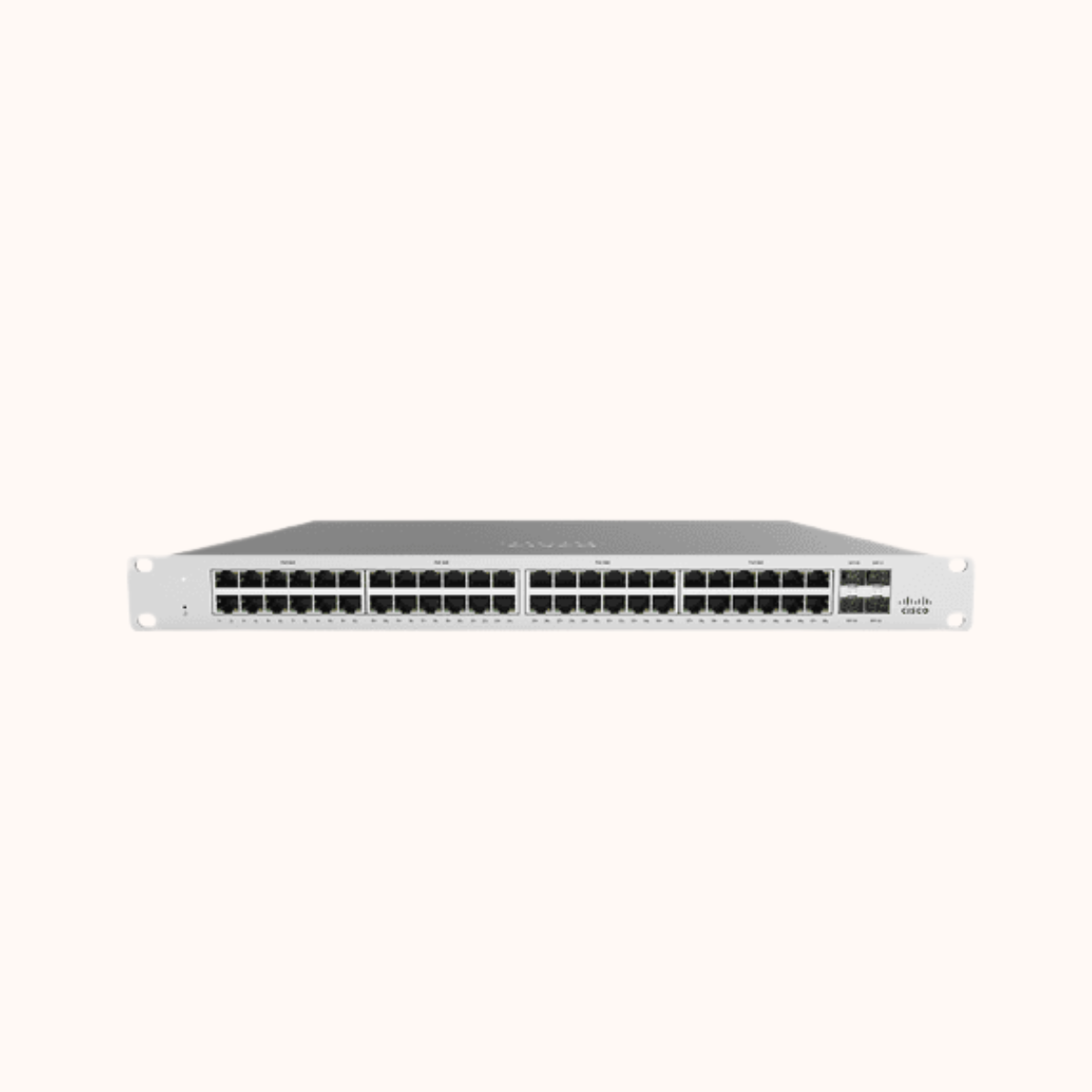

Cisco Meraki 48 Port Cloud Managed Switch - MS125-48FP
Feature Area | Key Point |
|---|---|
High-Speed Uplinks | Equipped with 4 × 10G SFP+ ports for high-performance uplink connectivity |
Advanced Troubleshooting | Supports ping, traceroute, cable testing, and remote packet capture |
Real-Time Alerts & Logs | Alerts via Email, SMS, and mobile push; detailed event/config change logs |
Topology Intelligence | Dynamic network discovery and live topology visualization |
Category | Key Feature |
|---|---|
Interfaces | 48 × Gigabit RJ45 ports with auto-MDIX crossover |
4 × 10G SFP+ uplink ports | |
Management | Managed via Meraki cloud dashboard with zero-touch provisioning |
Full integration with Meraki wireless and device suite | |
Stacking | Virtual stacking for thousands of ports in a single logical unit |
Ethernet Switching | VLAN support (up to 4,094), Link Aggregation, IGMP snooping |
MAC forwarding table: 32K entries | |
Security | Multi-factor authentication, 802.1X, MAC auth, RBAC, ACLs, DHCP snooping |
Performance | Switching capacity: 176 Gbps, Forwarding rate: 130.95 mpps |
Layer 3 Capabilities | DHCP Relay |
Power & Mounting | Input: 100–240V AC, Power range: 52–845.4W, 1U Rack-mountable |
General
- TypesManaged
- Switching Capacity176 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports48
- Rack MountingYes
