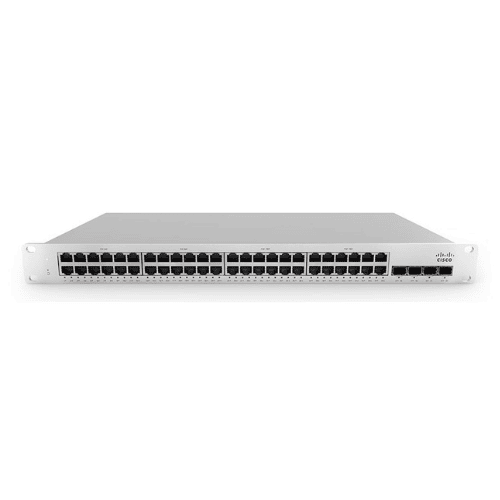

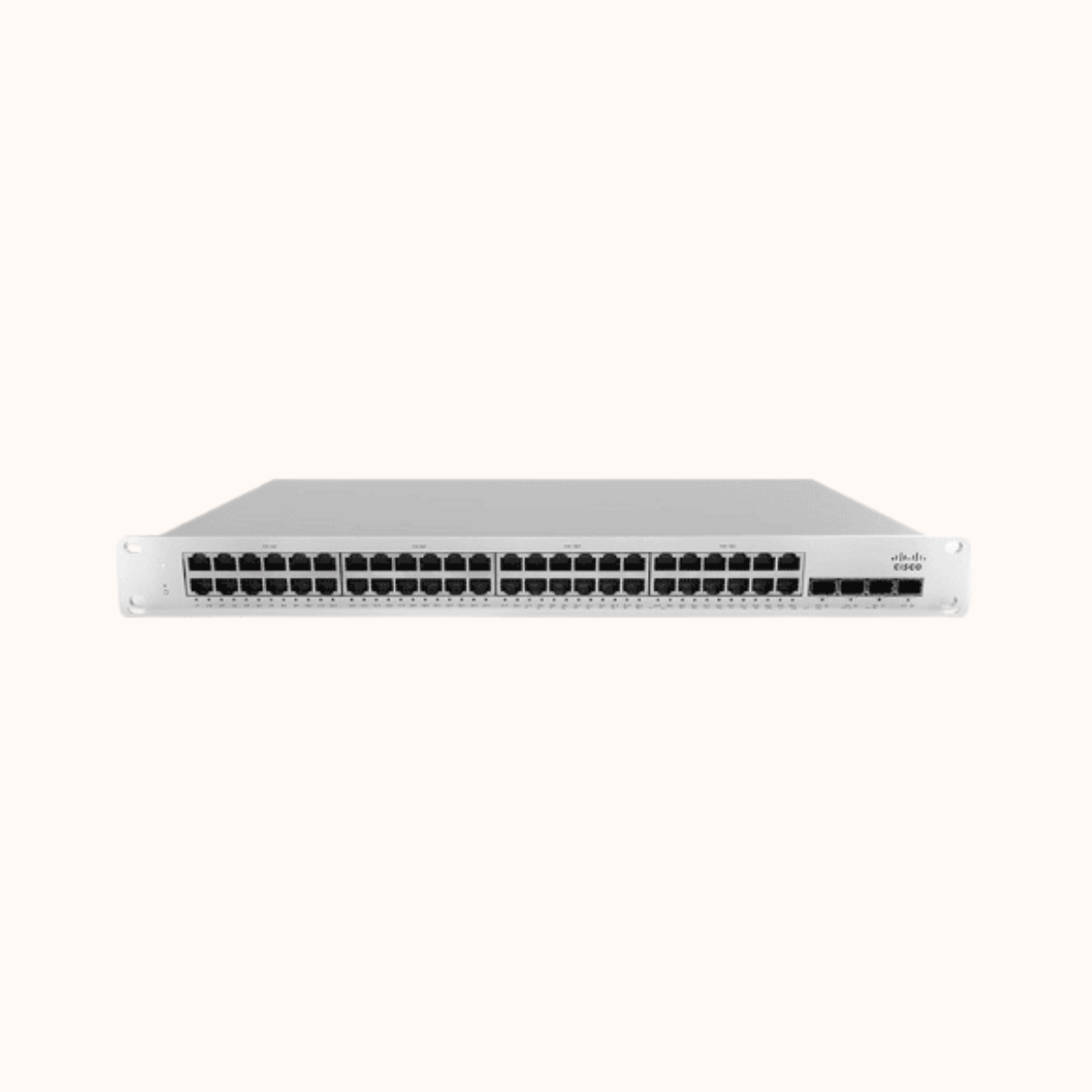

Cisco Meraki 48 Port Cloud Managed Switch - MS210-48
Feature | Description |
|---|---|
Interfaces | 24 × 1GbE RJ45, 4 × 1GbE SFP uplinks, 2 × stacking interfaces |
PoE Support | 802.3af/802.3at PoE+ on all ports, up to 30W per port, 370W total PoE budget |
Management | Managed via Meraki Dashboard, zero-touch provisioning, SNMP, SYSLOG |
Monitoring & Logging | Per-port/client stats, DHCP fingerprinting, event logs, firmware scheduling |
Remote Diagnostics | Alerts (Email/SMS), cable test, packet capture, topology view |
Stacking | Physical: up to 8 switches (80 Gbps), Virtual stacking supported |
Switching Capabilities | QoS, VLANs (802.1Q – 4095), STP/RSTP, CDP/LLDP, IGMP snooping, MAC table: 16K |
Link Aggregation | 802.3ad (LACP) with up to 8 ports, Multichassis supported |
Security Features | 2FA, RBAC, 802.1X, MAB, Sticky MAC, ACLs, DHCP snooping, BPDU/Root Guard |
Layer 3 Features | Static Routing (up to 16 routes), DHCP Relay |
Performance | 128 Gbps switching, 41.67 mpps forwarding (24-port), jumbo frame, flow control |
Power Input | 100–240V AC, 47–63 Hz, 15–448W power consumption |
RPS Support | Cisco RPS-2300 support via dedicated interface |
Mounting Options | 1U rack-mountable, 2-post front, or desktop mounting with included hardware |
Environment | Operating temp: 0–40°C, Humidity: 5–95%, fanless model available |
Warranty | Lifetime warranty with next-day hardware replacement |
MTBF at 25°C | MS210-24: 590,165 hrs, MS210-24P: 391,648 hrs |
Physical Dimensions | 1.72 × 19.08 × 9.84" (4.38 × 48.46 × 25 cm) |
Weight | MS210-24: 2.73 kg, MS210-24P: 3.71 kg |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- Rack MountingYes
