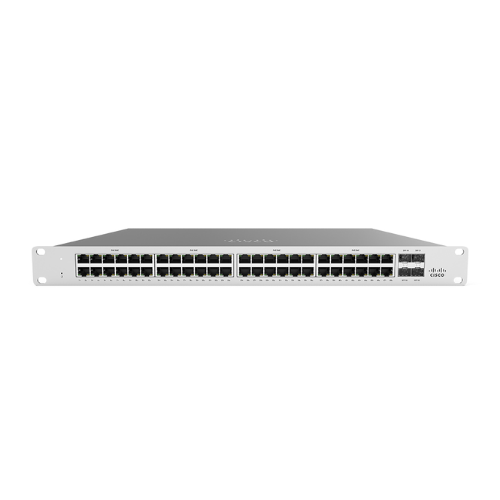

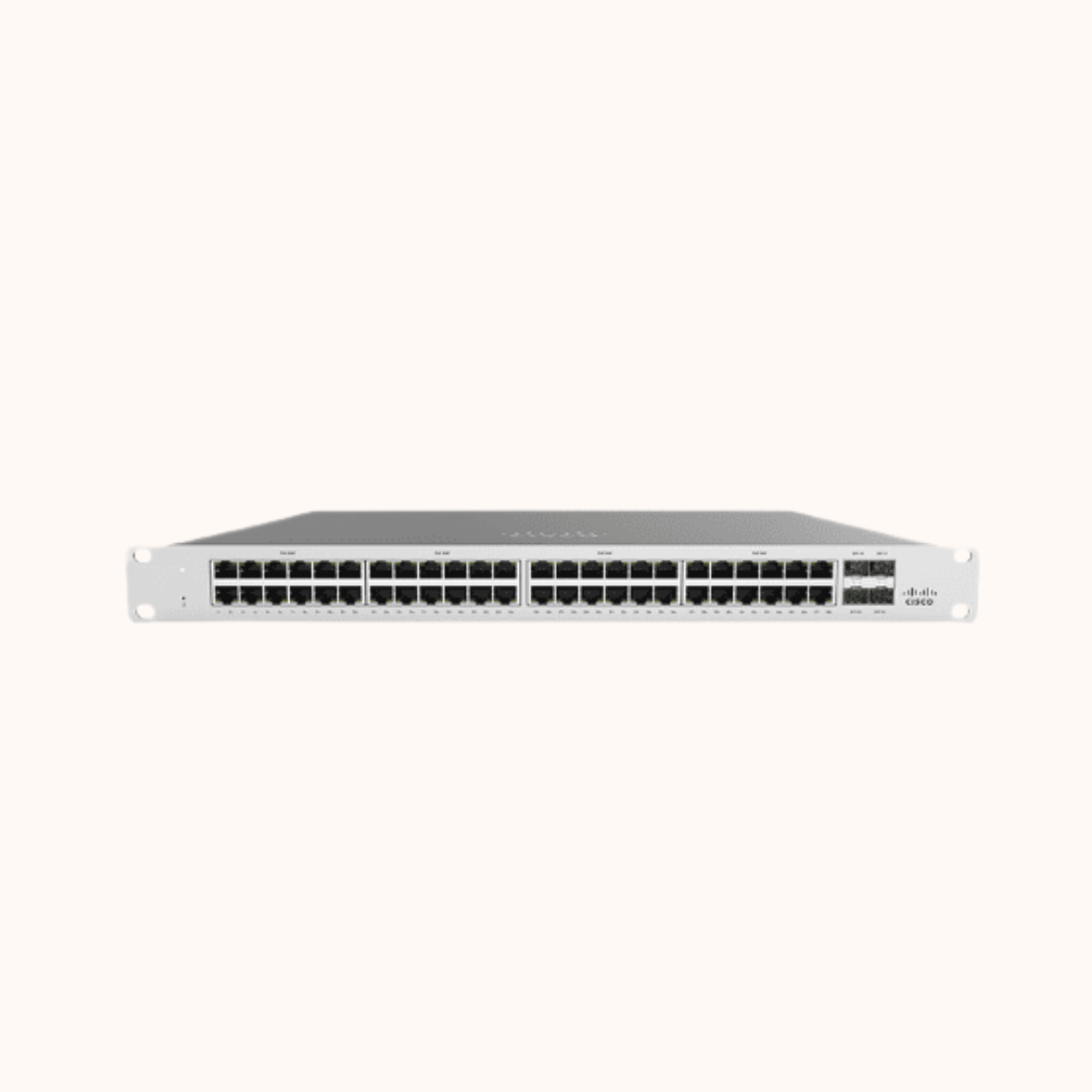

Cisco Meraki 48 Port Cloud Managed Switch-MS125-48
Feature | Description |
|---|---|
Port Configuration | 48 × 1GbE RJ45, 4 × 10G SFP+ uplinks |
Management | Cloud-managed via Meraki Dashboard with zero-touch provisioning |
Monitoring | Per-port/client usage stats, device fingerprinting, SNMP, SYSLOG |
Remote Diagnostics | Alerts via Email/SMS, cable test, packet capture, network topology |
Stacking | Virtual Stacking for thousands of switch ports |
Switching Capacity | 176 Gbps switching, 130.95 mpps forwarding rate |
Ethernet Capabilities | QoS, VLAN (4094), STP/RSTP, BPDU/Root/Loop Guard, LACP, IGMP, Port Mirroring |
Security | 2FA, RBAC, 802.1X, MAB, Sticky MAC, ACLs, DHCP Snooping, IPv4/IPv6 ACLs |
Layer 3 | DHCP Relay |
PoE/Power | Models with PoE/PoE+ support, Max power draw from 42W to 845.4W |
Power Input | 100–240V~, 50–60Hz |
Fan | Fanless operation (on some models) |
Mounting | 1U rack-mountable, 2-post and desktop options available |
Environment | 0°C to 45°C, up to 95% RH |
Compliance | CSA-US, FCC, IC, CE, RCM, RoHS |
Warranty | Lifetime hardware warranty with next-day advanced replacement |
MTBF @ 25°C | Ranges from 287,429 to 1,628,120 hours depending on model |
Dimensions (H × W × D) | Varies by model: 1.73” x 17.32” x 9.84” / 13.84” (4.4 × 44 × 25/34 cm) |
Weight | Ranges from 9.25 lb (4.20 kg) to 12.78 lb (5.80 kg) |
General
- TypesManaged
- Switching Capacity176 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports48
- Rack MountingYes
