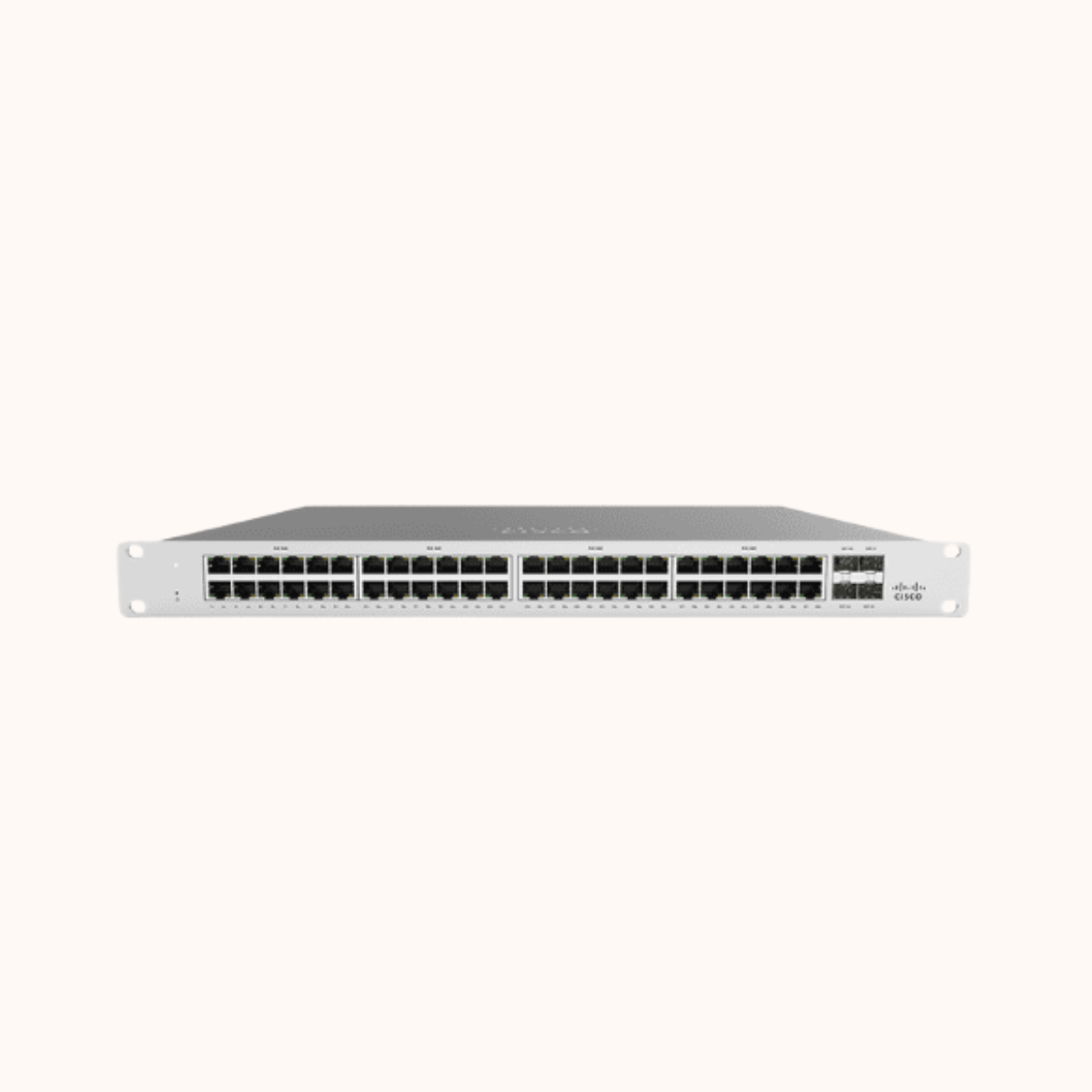

Cisco Meraki 48 Port Cloud Managed Switchi MS125-48LP
Feature | Description |
|---|---|
Zero-Touch Provisioning | Instantly deploy devices without manual setup or staging |
Virtual Stacking | Manage thousands of ports across sites from a single dashboard |
Advanced Troubleshooting | Live tools like packet capture, cable test, and power loss alerts |
Automatic Updates | Scheduled firmware upgrades and new features delivered from the Meraki cloud |
Feature | Description |
|---|---|
1GbE RJ45 Ports | 48 |
10GbE SFP+ Ports | 4 |
Auto Negotiation | Yes, with crossover detection |
Management | Cloud-based via Meraki Dashboard; zero-touch provisioning |
Monitoring | Historical per-port/client usage, SNMP, Syslog, device & hostname fingerprinting |
Remote Diagnostics | Email/SMS alerts, cable test, packet capture, topology mapping |
Virtual Stacking | Supports thousands of switch ports in single logical stack |
QoS | 802.1p, 8 queues (6 configurable DSCP-to-CoS) |
VLAN Support | 802.1Q, up to 4,094 VLANs |
Spanning Tree Protocol | 802.1w, 802.1D, STP Enhancements: BPDU, Root, Loop Guard, UDLD |
Link Aggregation | 802.3ad (LACP), up to 8 ports per group, Multichassis supported |
MAC Table Size | 32,000 entries |
Security Features | 2FA, RBAC, 802.1X, MAB, Sticky MAC, DHCP Snooping, IPv4/IPv6 ACLs |
Layer 3 Features | DHCP Relay |
Switching Capacity | 176 Gbps |
Forwarding Rate | 130.95 mpps |
Jumbo Frame Support | Up to 9578 bytes |
Power Consumption | Options: 21.7–42W (fanless), 40.2–439.8W, 52–845.4W |
Power Input | 100–240V~, 50–60Hz |
Mounting Options | 1U Rack-mountable, 2-post front mounting available |
General
- TypesManaged
- Switching Capacity176 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports48
- Rack MountingYes
