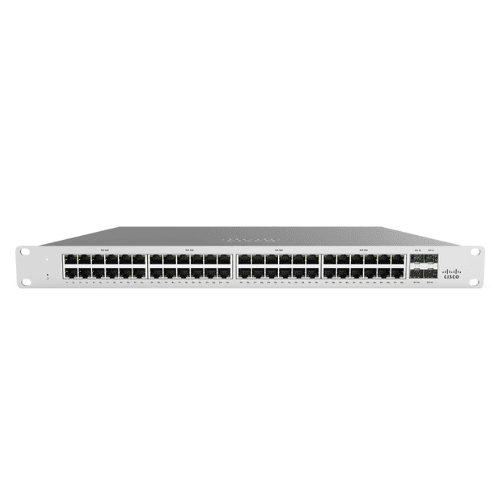

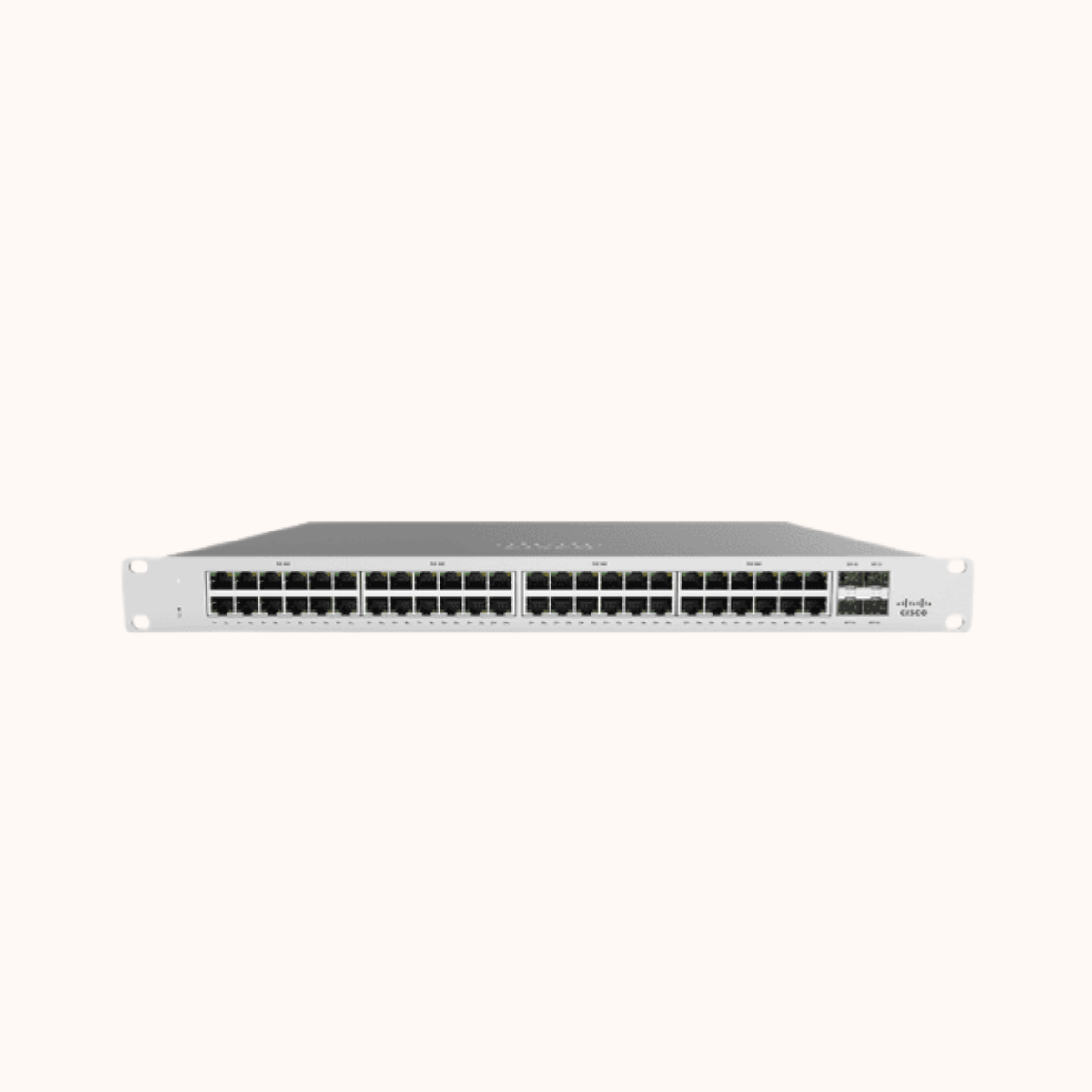

Cisco Meraki 48 Port Gigabit Switch - MS120-48FP
Feature Area | Key Point |
|---|---|
High-Density PoE+ Ports | 48 × Gigabit Ethernet ports with full PoE+ support (up to 30W per port, 370W total) |
Cloud-Based Simplicity | Managed entirely via Meraki's intuitive cloud dashboard with zero-touch provisioning |
Scalable & Stackable | Virtual stacking allows seamless management of thousands of ports across locations |
Enterprise Security | Built-in 2FA, MAC-based RADIUS, DHCP snooping, and granular access control |
Category | Key Feature |
|---|---|
Interfaces | 48 × Gigabit RJ45 ports with PoE/PoE+ (30W max per port) |
4 × SFP 1G uplink ports | |
Management | Cloud-based management via Meraki Dashboard |
Zero-touch provisioning | |
Virtual Stacking for large-scale switch management | |
Ethernet Switching | VLAN support (up to 4,094 VLANs) |
Link Aggregation, Port Mirroring, IGMP Snooping | |
Security | 2FA, Role-Based Access Control, MAC & RADIUS Authentication |
DHCP snooping, ACLs, and STP enhancements | |
PoE Power | Total PoE budget: 370W |
PoE available on all ports | |
Performance | Switching capacity: 104 Gbps |
Forwarding rate: 77.38 mpps | |
Power & Mounting | Power input: 100–240V AC |
1U Rack-mountable & Desktop-mountable options |
General
- TypesManaged
- Switching Capacity104 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports48
- Rack MountingYes
