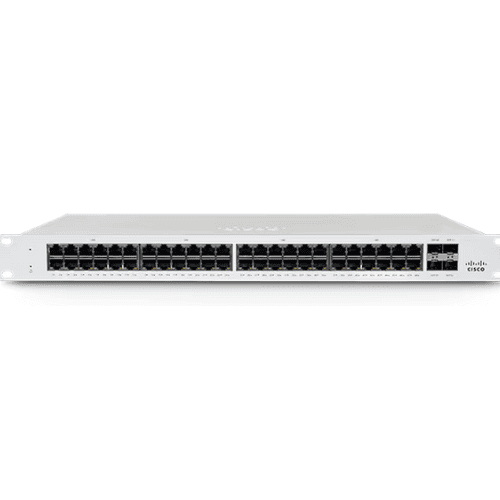

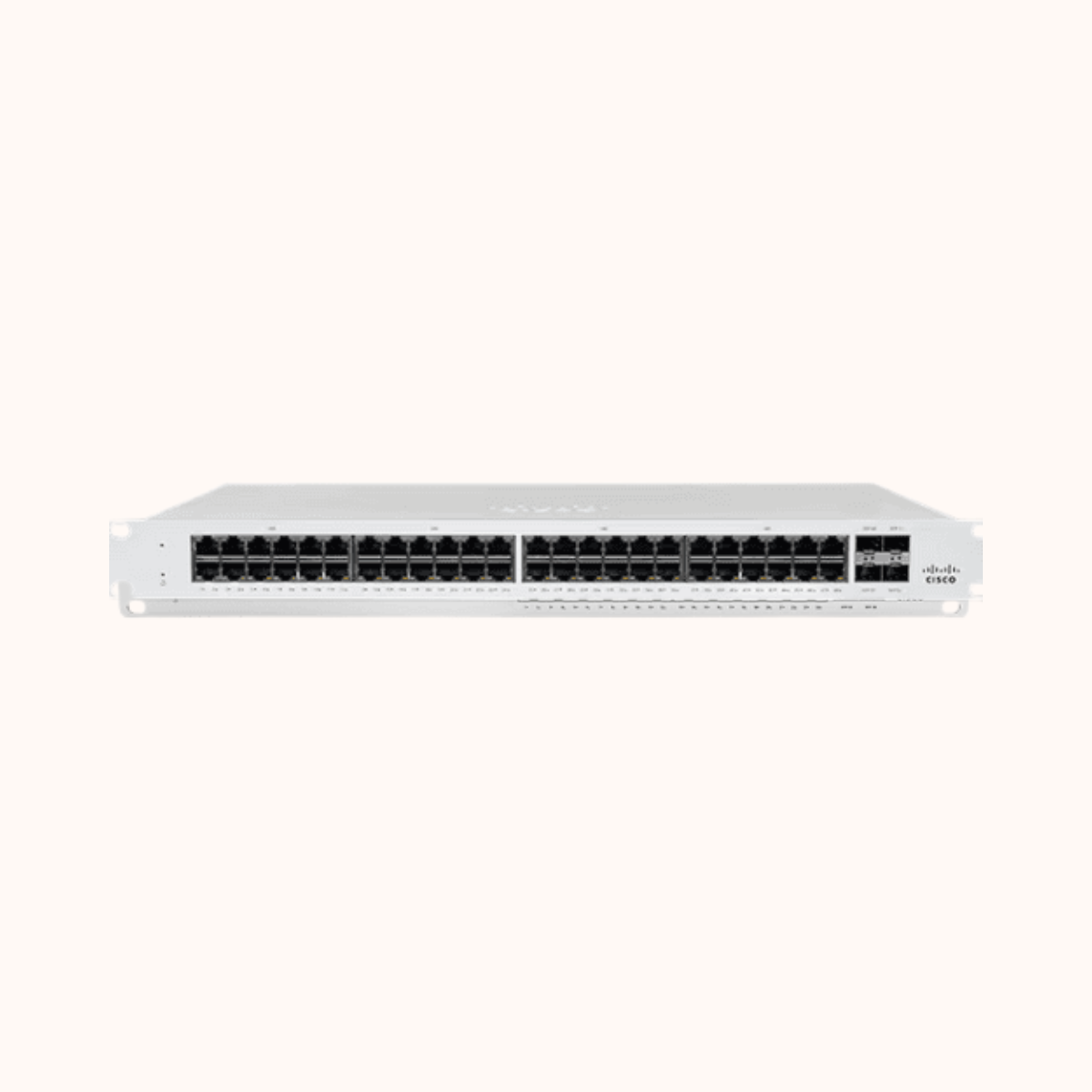

Cisco Meraki 48 Port Switch - MS130-48P
Feature | Description |
|---|---|
High PoE Power Budget | Supports up to 740W PoE/PoE+ to power APs, cameras, and IoT devices |
mGig & 10G Uplink Options | Select models offer 8× 2.5GbE mGig ports and 4× 10G SFP+ uplinks |
Centralized Management | Configure and monitor thousands of ports using the Meraki Dashboard |
Adaptive Policy Ready | mGig (-X) models support Adaptive Policy (via future firmware & advanced license) |
Feature | Description |
|---|---|
1GbE RJ45 Ports | 48 |
mGbE RJ45 Ports | — |
1GbE SFP Ports | 4 |
10GbE SFP+ Ports | — |
Dedicated Mgmt Interface | 1 |
PoE/PoE+ Power Budget | 740W |
Power Input | 100–240V~, 12–6A, 50–60Hz |
Power Load (Idle/Max) | 49W / 803W |
Power Consumption | 8W – 808W |
Operating Temperature | 32°F to 113°F (0°C to 45°C) |
Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
Humidity | 5% to 95% |
Mounting | Integrated 1U Rack mount |
Switching Capacity | 104 Gbps |
Power Supply | Fixed Internal |
Fan Operation | Fixed Internal |
Dimensions (H × W × D) | 1.73 × 17.32 × 13.4 in (4.4 × 44 × 34 cm) |
Weight | 12.13 lb (5.5 kg) |
What's in the Box | MS130 Switch |
General
- TypesManaged
- Switching Capacity104 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports48
- No. Of Power Supplies Supported1
- Rack MountingYes
