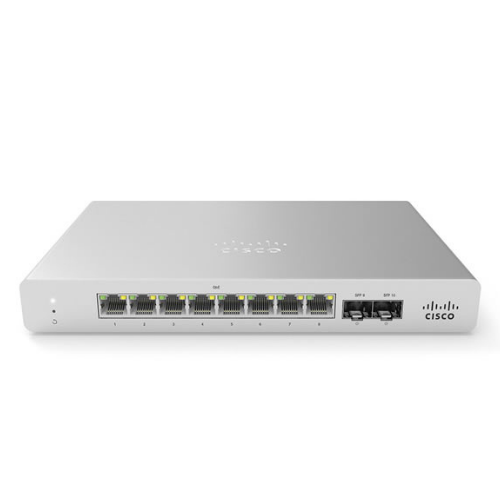

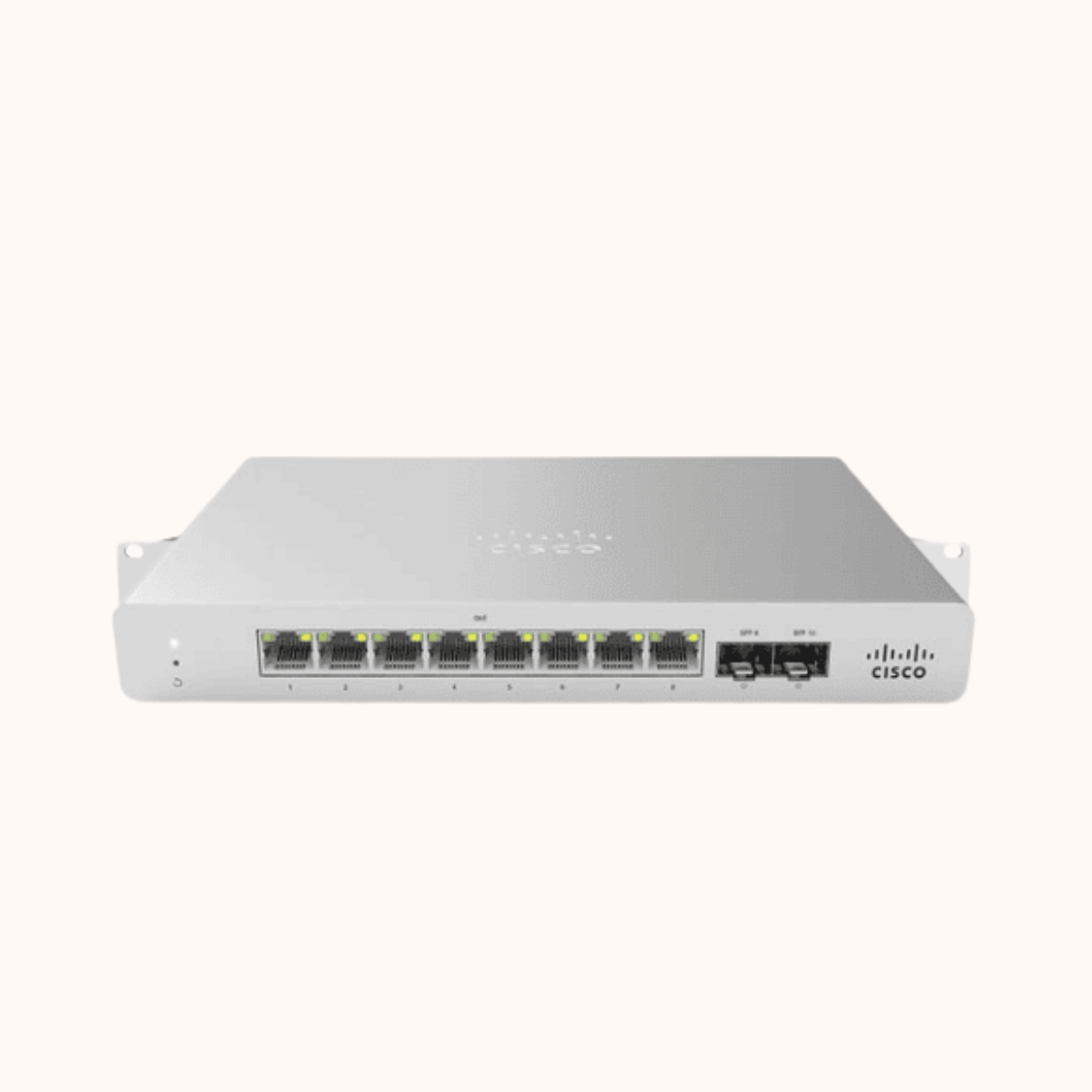

Cisco Meraki 8 Port Gigabit Managed Switch - MS120-8LP
Feature | Description |
|---|---|
Gigabit Ports | 8 × 1GbE RJ45 ports with optional PoE/PoE+ |
Uplink Interfaces | 2 × 1G SFP uplinks available on all models |
Fanless Design | Silent, fanless operation for quiet environments |
Switching Capacity | 20 Gbps non-blocking throughput |
PoE Budget | 67W/124W total PoE with dynamic power allocation (up to 30W per port) |
QoS | 8 dedicated queues for optimized voice, video, and data performance |
Mounting Options | Wall or desk mountable; integrated brackets and Kensington lock slot included |
Warranty | Lifetime hardware warranty with free advanced hardware replacement |
Feature | Description |
|---|---|
Ports | 8 × 1GbE RJ45 (PoE/PoE+), 2 × 1GbE SFP uplink |
PoE Capability | 802.3af/802.3at PoE+ on all ports, up to 30W per port, 67/124W max PoE budget |
Switching Capacity | 20 Gbps switching, 14.88 mpps forwarding rate |
Management | Meraki Dashboard, zero-touch provisioning, firmware scheduling |
Monitoring | Per-port/client usage, SNMP, Syslog, device & hostname fingerprinting |
Remote Tools | Email/SMS alerts, cable test, packet capture, topology view |
Stacking Support | Virtual stacking for managing thousands of ports |
Layer 2 Features | VLANs (802.1Q – up to 4094), STP/RSTP, QoS (802.1p), IGMP Snooping |
Security Features | 2FA, RBAC, 802.1X, MAB, Sticky MAC, ACLs, DHCP snooping, BPDU/Root guard |
Link Aggregation | 802.3ad with up to 8 ports, Port mirroring, LLDP/CDP |
MAC Table Size | 16,000 entries |
Jumbo Frame Support | Up to 9578 bytes |
Power Input | 100–240V AC, 47–63Hz, 5–161W consumption |
Mounting Options | Wall/utility board or desktop mountable; includes feet and lock slot |
General
- TypesManaged
- Switching Capacity20 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports2
- No. Of RJ45 Ports8
- Rack MountingYes
