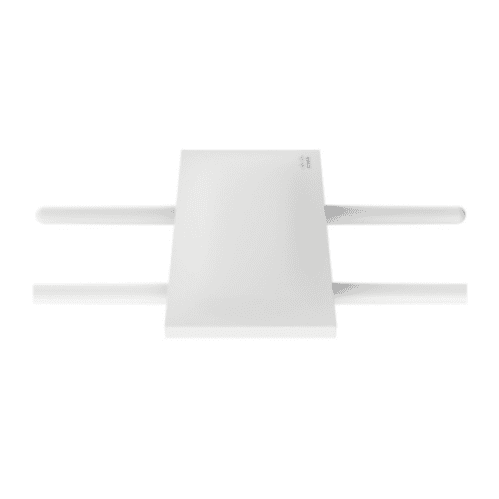

Cisco Meraki Access Point - MR84
Category | Specification / Feature |
|---|---|
Product Highlight | Flexible omni- and directional antenna options for versatile deployment scenarios |
Product Highlight | Optimized for high-performance voice and video applications in harsh environments |
Product Highlight | Full-time Wi-Fi location tracking enabled via dedicated third radio |
Product Highlight | Sleek, low-profile form factor suitable for both outdoor and industrial indoor installations |
Category | Specification / Feature |
|---|
Radios | 4 Radios – 2.4GHz, 5GHz, dual-band WIDS/WIPS, BLE (Concurrent Operation) |
Wi-Fi Capabilities | 4×4 MU‑MIMO, SU‑MIMO, Beamforming, 256‑QAM, up to 160 & 80+80 MHz channel support |
Power & Consumption | PoE: 37–57V (802.3at required), Max power: 21W, 802.3af fallback supported |
Mounting Options | Wall and vertical pole mountable, Mounting hardware included |
Physical Security | Security screw and concealed mount plate included |
Environment | Operating Temp: –40°C to 55°C, Humidity: 5–95%, IP67 rated |
Physical Dimensions | 28.6 × 17.6 × 18.5 cm, Weight: 1.7 kg (3.8 lbs) |
Interfaces | 1× 2.5G RJ45, 1× 1G RJ45, 4× External N‑type antenna connectors |
Security Features | Layer 7 firewall, Air Marshal WIDS/WIPS, WPA2‑Enterprise, IPsec VPN, VLAN, Cisco ISE, EMM |
QoS & Traffic Shaping | U‑APSD, WMM, DSCP, 802.1p, Layer 7 Application Traffic Shaping |
