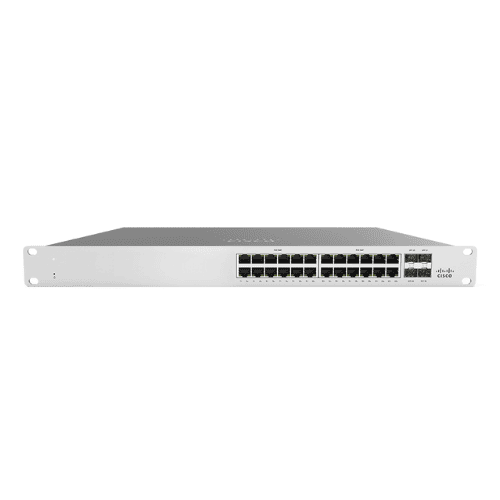

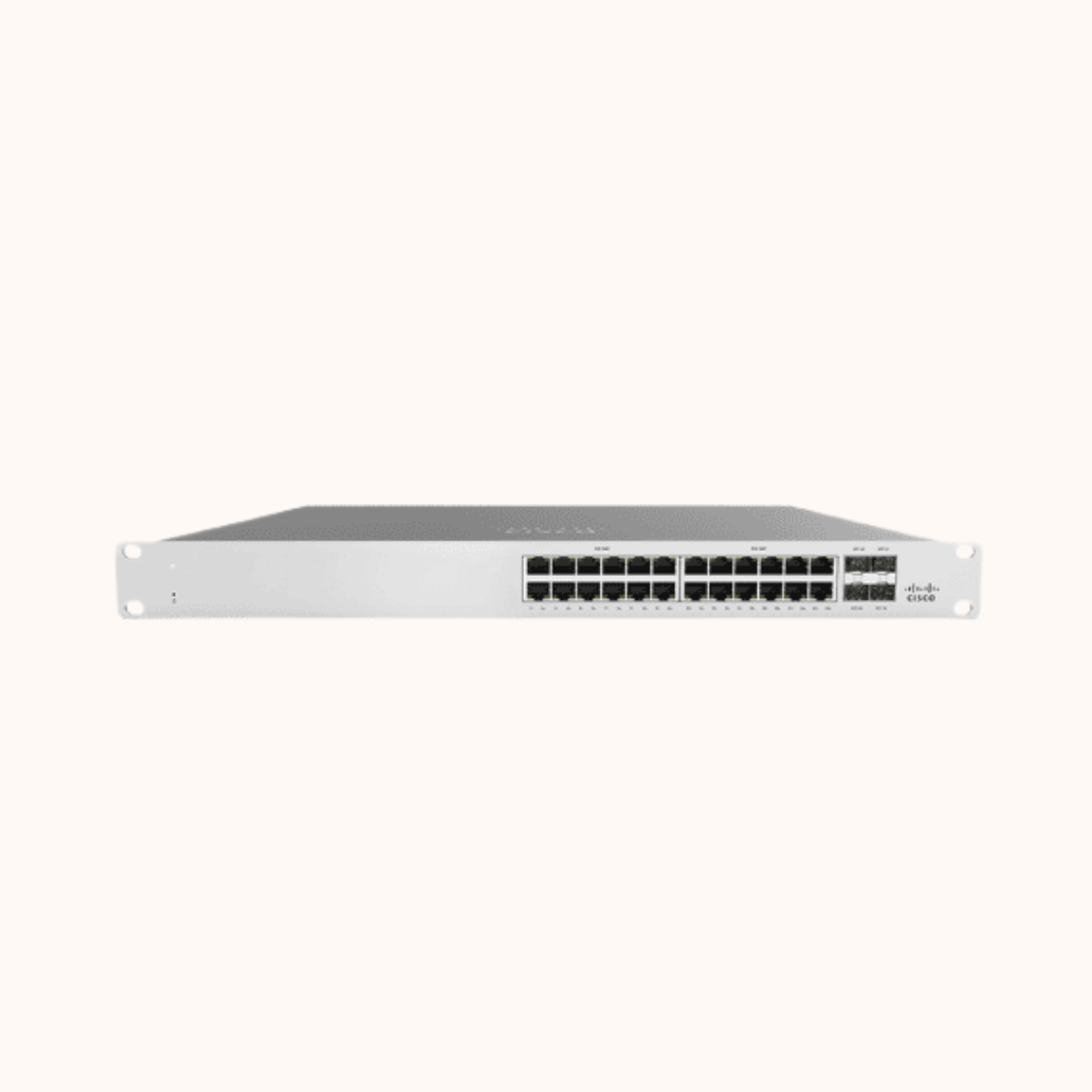

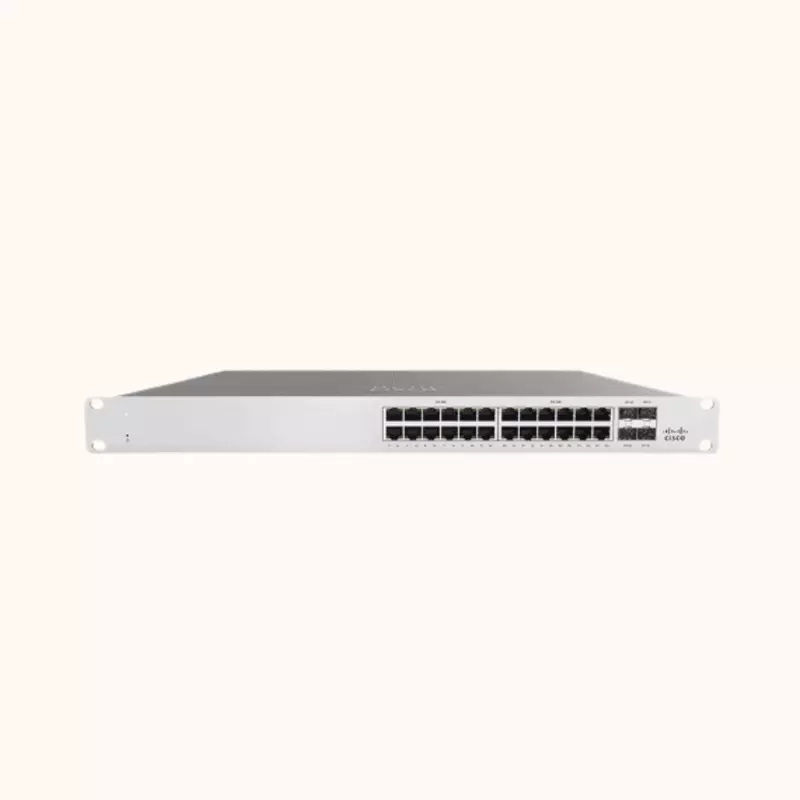

Cisco Meraki Cloud Managed Switch- MS120-24P
Feature | Description |
|---|---|
Security | 2FA for Dashboard, RBAC, SSO, password policies, 802.1X, MAB, DHCP snooping |
Port Security | Sticky MAC, MAC whitelisting, IPv4 ACLs, STP enhancements (BPDU guard, etc.) |
PoE/PoE+ Support | 802.3af (15.4W) and 802.3at (30W) per port, 370W max PoE output on all ports |
Switching Performance | 56 Gbps switching capacity, 41.67 Mpps forwarding rate, jumbo frame support |
Power Input & Usage | 100–240V AC, 47–63 Hz, power consumption: 15–882W |
Mounting Options | 1U rack-mountable, 2-post front mounting, and desktop-mountable with feet |
Feature | Description |
|---|---|
Port Configuration | 24 × 1GbE RJ45 with PoE/PoE+ (up to 30W per port), 4 × 1GbE SFP uplink ports |
PoE Support | Supports 802.3af/802.3at PoE/PoE+ on all 24 ports |
Cloud Management | Managed via Meraki Dashboard with zero-touch provisioning |
Virtual Stacking | Supports thousands of ports in a single logical stack |
Usage Analytics | Per-port and per-client historical usage stats |
Remote Diagnostics | Email/SMS alerts, cable testing, live packet capture, topology view |
Network Discovery | DHCP, client & hostname fingerprinting, SNMP, Syslog, event logging |
VLAN & QoS | 802.1Q VLAN (up to 4,094 VLANs), 802.1p QoS, DSCP to CoS mapping |
Spanning Tree Protocol | 802.1w (RSTP), 802.1D (STP), and broadcast storm control |
Link Aggregation & LLDP | 802.3ad LACP (up to 8 ports per group), LLDP, CDP support |
General
- TypesManaged
- Switching Capacity56 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- Rack MountingYes
