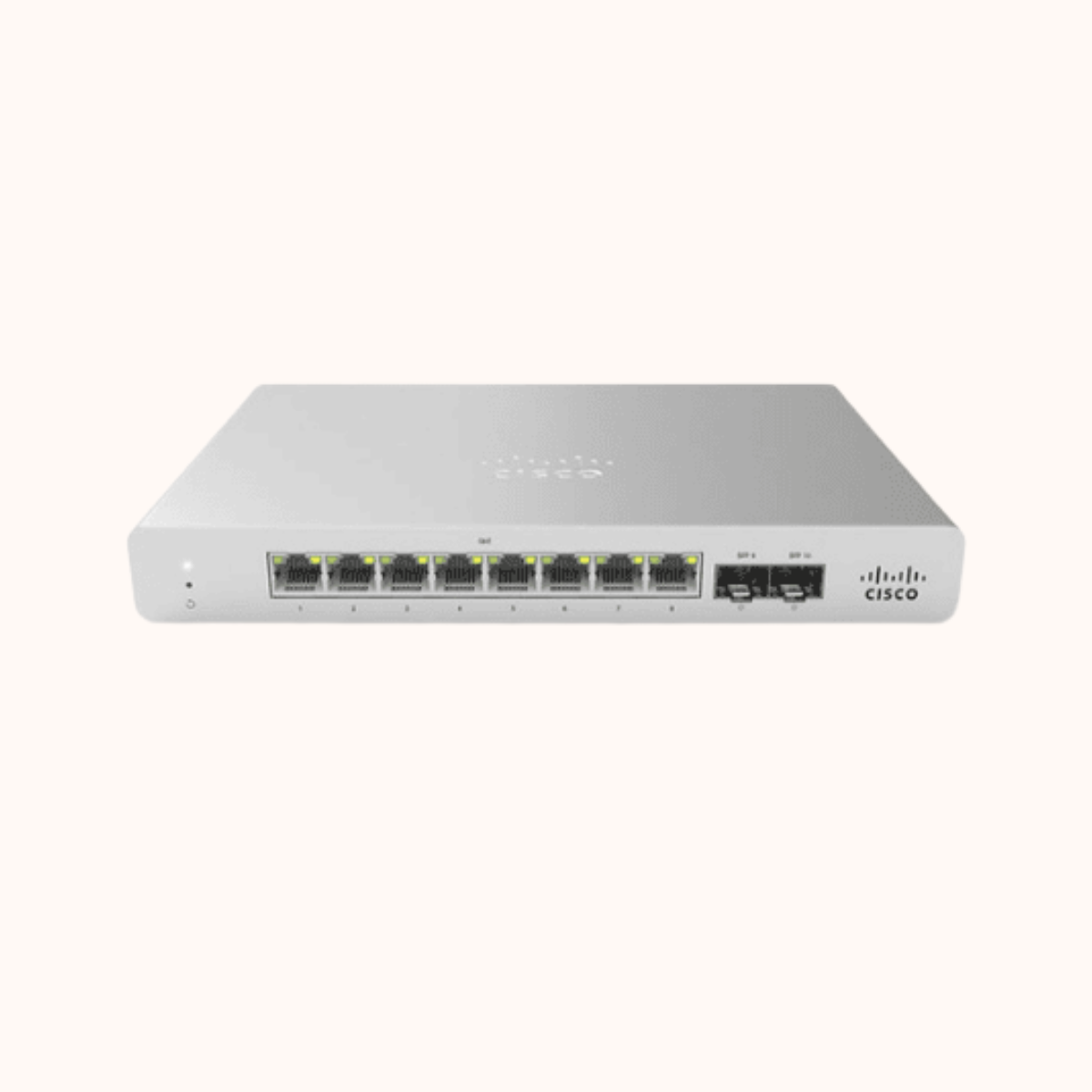

Cisco Meraki Licenses and Support - 8 Port Gigabit 127W PoE Switch-MS120-8FP
Feature | Description |
|---|---|
PoE/PoE+ Support | Up to 124W power budget across all 8 ports (up to 30W per port) |
Cloud Management | Managed via Meraki Dashboard with zero-touch provisioning |
High Performance | 20 Gbps switching capacity, 14.88 mpps forwarding rate |
Silent Operation | Fanless design, suitable for quiet office environments |
Category | Key Features |
|---|---|
Interfaces | 8 × 1G RJ45 ports with PoE/PoE+ (up to 30W per port), 2 × 1G SFP uplink ports |
PoE Power Budget | Up to 124W total, PoE on all ports simultaneously |
Management | Cloud-managed via Meraki Dashboard, zero-touch provisioning, SNMP, alerts |
Switching Capacity | 20 Gbps switching, 14.88 mpps forwarding, 16,000 MAC entries |
Security | 802.1X, RADIUS, MAC whitelisting, port security, DHCP snooping, ACLs |
Stacking | Virtual stacking supports thousands of ports |
Power Supply | External PSU, 100–240 VAC input, 5–161W consumption |
Mounting | Wall, utility board, or desktop mountable, Kensington lock slot included |
Fan Operation | Fanless design for silent performance |
Performance Features | Jumbo frame (9578 bytes), port mirroring, QoS, VLANs, STP, LLDP, CDP |
General
- TypesManaged
- Switching Capacity20 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports8
- No. Of SFP Ports2
- No. Of RJ45 Ports8
