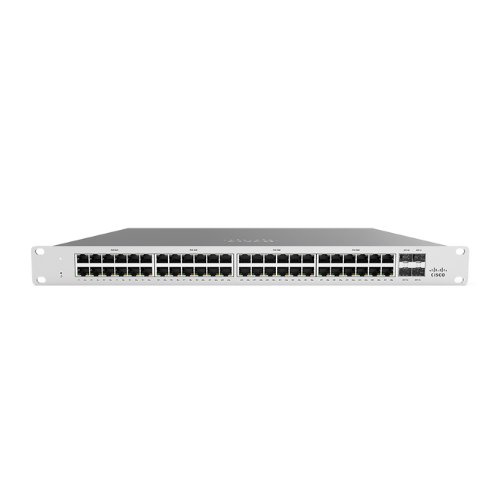

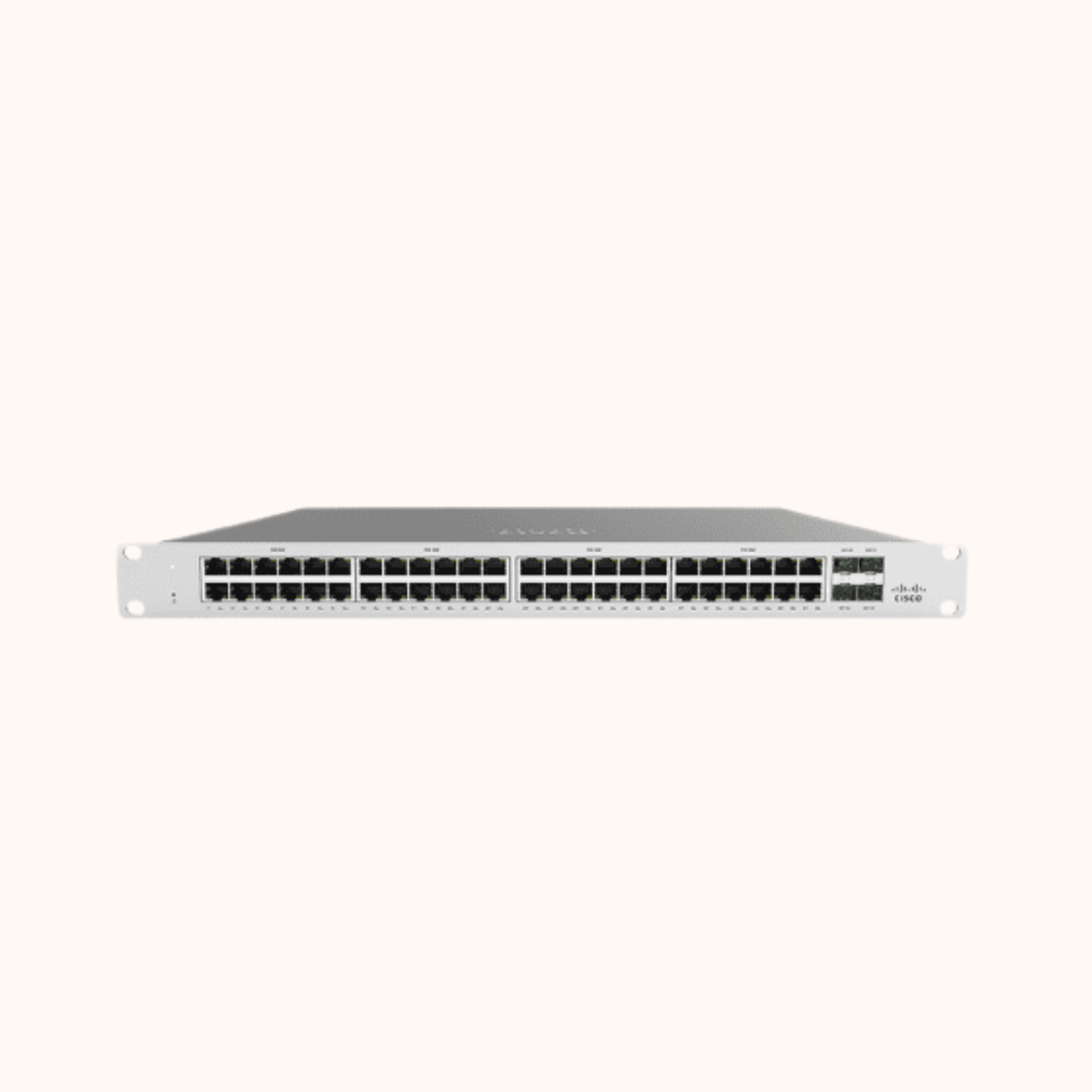

Cisco Meraki Managed 48 Port Gigabit Ethernet Switch-MS120-48
Feature | Description |
|---|---|
PoE/PoE+ Support | Supports device-level power via PoE and PoE+ models |
QoS & Voice VLAN | Ensures priority for voice/video traffic and simplifies VoIP setup |
Network Visibility | CDP/LLDP neighbor discovery, port mirroring, and IGMP snooping |
Link Aggregation | LACP support for high-capacity trunk links |
Wired Access Security | 802.1X, MAB, hybrid auth, MAC whitelisting, DHCP snooping, CoA, RADIUS |
Feature | Description |
|---|---|
Port Configuration | 48 × 1GbE RJ45 with PoE/PoE+ support (30W max per port) |
Uplink Ports | 4 × 1GbE SFP interfaces for uplink |
Stacking | Virtual Stacking for thousands of switch ports |
Cloud Management | Meraki Dashboard with zero-touch provisioning and firmware updates |
Monitoring | Per-port/client usage, DHCP and hostname fingerprinting |
Remote Diagnostics | Email/SMS alerts, packet capture, cable testing, topology discovery |
Switching Features | 802.1p QoS, 802.1Q VLAN (up to 4,094), STP, broadcast storm control |
Link Aggregation | 802.3ad LACP (up to 8 ports per group), Port mirroring |
Multicast Support | IGMP snooping for multicast filtering |
MAC Table Size | 32K entries on 48-port models |
Security | 2FA, RBAC, password policy, 802.1X, MAB, sticky MAC, ACLs, DHCP snooping |
PoE Budget | Up to 370W, available across all 48 ports simultaneously |
Performance | 104 Gbps switching capacity, 77.38 mpps forwarding rate, jumbo frame support |
Power | 100–240V AC input, 15–882W power consumption |
Mounting | 1U rack-mountable, 2-post and desktop mounting options |
General
- TypesManaged
- Switching Capacity104 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- No. Of RJ45 Ports48
- Rack MountingYes
