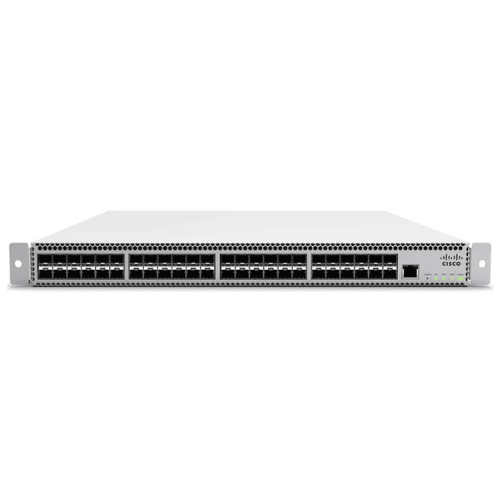

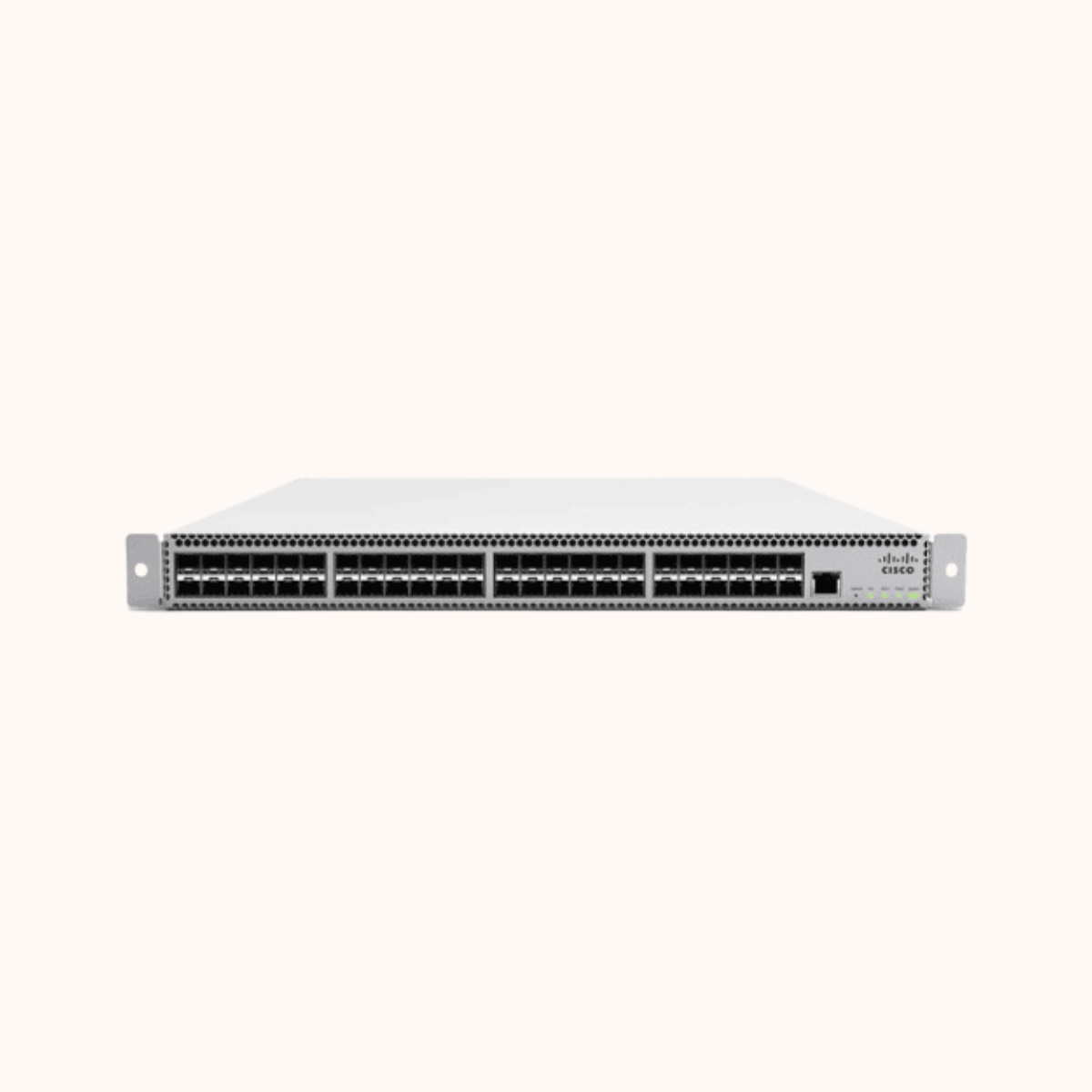

Cisco Meraki Managed 48 Port switch - MS420-48
Management Port | 1 × 10/100/1000 RJ45 dedicated port for device management |
Non-Blocking Fabric | Delivers 960 Gbps switching capacity with full wire-speed performance |
Compact Design | 1 RU rack-mountable form factor ideal for space-constrained environments |
QoS & VLAN Support | Supports 802.1p QoS, 802.1Q VLAN tagging for up to 4095 VLANs |
Feature | Description |
|---|---|
Ports | 48x 10GbE SFP+/SFP for high-speed connectivity |
Management Port | 1x 10/100/1000 RJ45 for device management |
Switching Capacity | 960 Gbps non-blocking fabric for optimal performance |
Layer 3 Capabilities | Supports OSPF, static routing, DHCP server & relay |
Power Supply | Field-replaceable, hot-swappable 400W AC power |
Cooling | Field-replaceable, hot-swappable fans with front-to-back airflow |
Stackable Design | Supports virtual stacking across thousands of ports |
Cloud Management | Managed via Meraki Dashboard with remote monitoring & updates |
Security | IEEE 802.1X, two-factor auth, role-based access control |
Dimensions & Weight | 17.3" x 18.6" x 1.7", 17.6 lbs (7.96 kg) |
General
- TypesManaged
- Switching Capacity960 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports48
- No. Of Power Supplies Supported1
- Rack MountingYes
