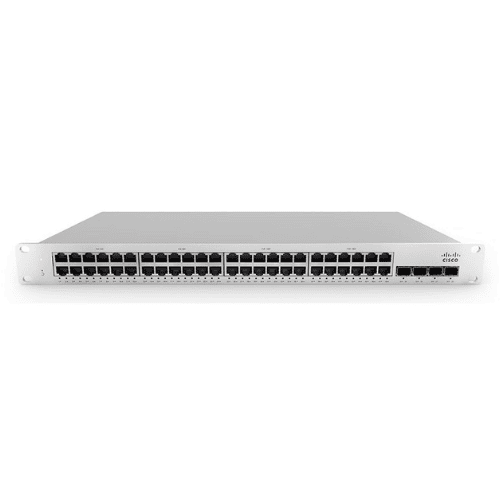

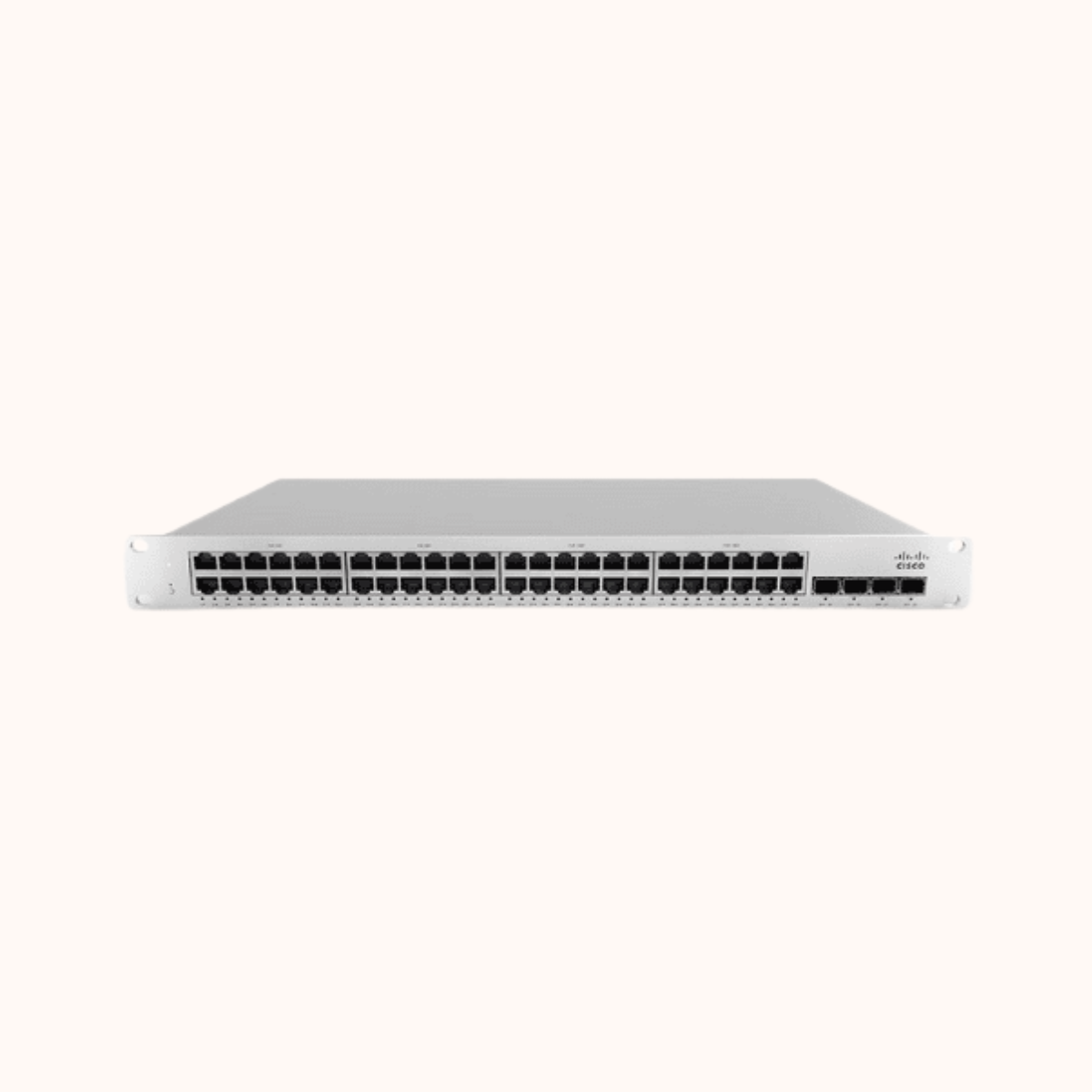

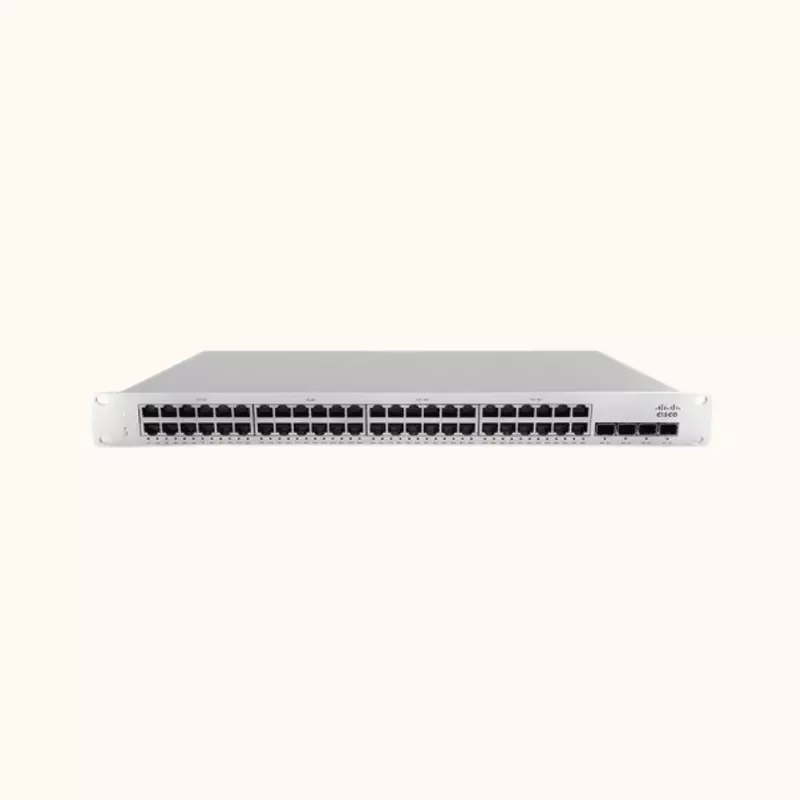

Cisco Meraki Managed Switch - MS210-48LP
Feature Area | Key Point |
|---|---|
Flexible Stacking | Supports both physical stacking (up to 8 switches) and virtual stacking |
Zero-Touch Deployment | No-touch remote provisioning eliminates the need for on-site staging |
Advanced Diagnostics | Cable testing, link failure alerts, and live remote packet capture |
Cloud Intelligence | Dynamic topology mapping with real-time port and client usage statistics |
Category | Key Feature |
|---|---|
Interfaces | 24 × Gigabit RJ45 ports with PoE/PoE+ (30W max per port) |
4 × SFP 1G uplink ports, 2 × physical stacking interfaces | |
Management | Cloud-managed via Meraki Dashboard with remote deployment |
Supports physical and virtual stacking with 80 Gbps bandwidth | |
Ethernet Switching | VLAN tagging, Link Aggregation, IGMP Snooping, Storm Control |
MAC entries: 16K (24-port), 32K (48-port) | |
Security | 2FA, RBAC, 802.1X, MAC auth, DHCP snooping, ACLs |
PoE Power | Total PoE budget: 370W |
Full PoE+ support on all 24 ports | |
Performance | Switching capacity: 128 Gbps (24-port) |
Forwarding rate: 41.67 mpps | |
Layer 3 Features | Static Routing (up to 16 routes), DHCP Relay |
Power & Mounting | Input: 100–240V AC, Supports RPS-2300 chassis |
1U Rack-mountable & Desktop-mountable options |
General
- TypesManaged
- Switching Capacity128 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports4
- Rack MountingYes
