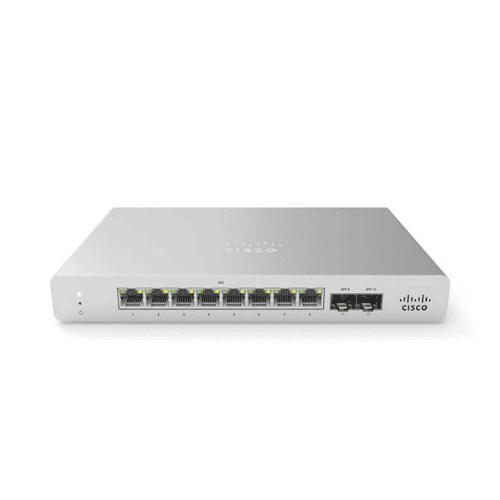

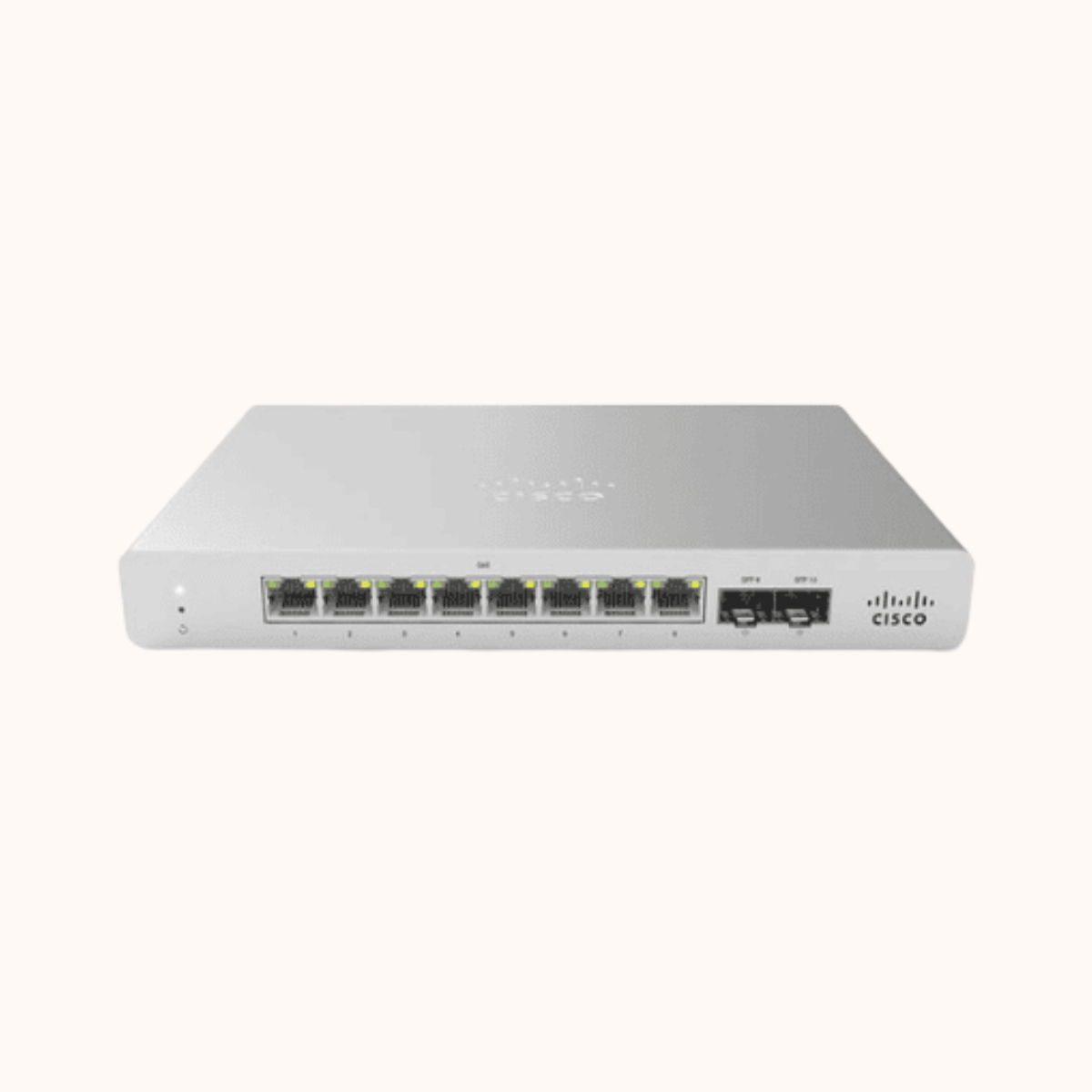

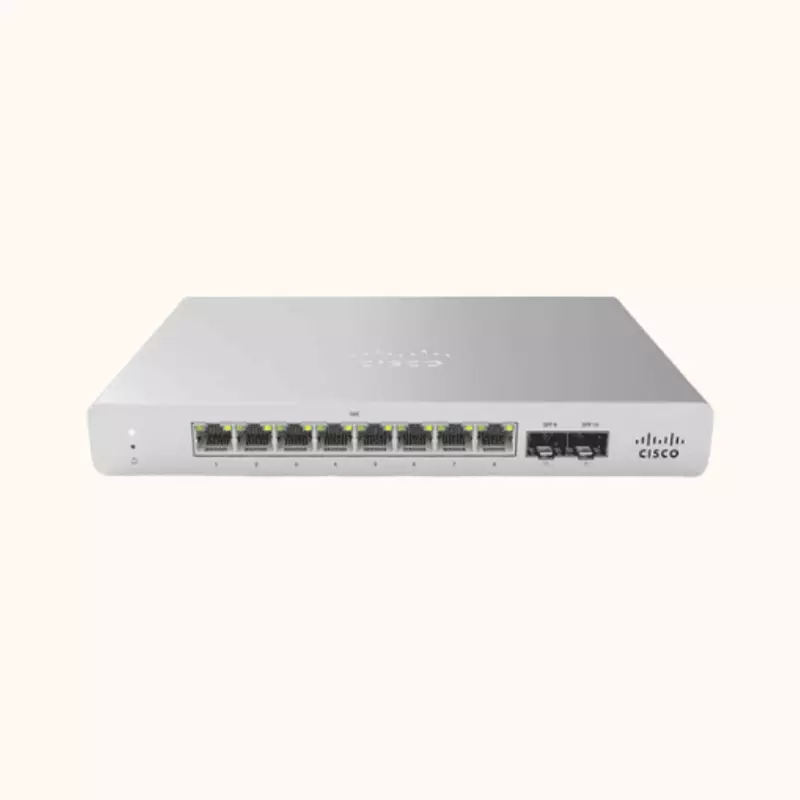

Cisco Meraki MS120-8 Cloud-Managed Compact Switch-MS120-8
Brand | Cisco |
Number of Ports | 8 |
Compatible Devices | Desktop |
Switch Type | managed |
Platform | Not Machine Specific |
Category | Key Features |
|---|---|
Interfaces | 8 × 1G RJ45, 2 × 1G SFP, Auto-MDIX & crossover detection |
PoE/PoE+ | 802.3af (15.4W) / 802.3at (30W), Max output: 67W (LP) / 124W (FP) |
Management | Cloud-managed, zero-touch provisioning, SNMP, syslog, remote diagnostics, live packet capture |
Stacking | Virtual stacking for thousands of ports |
Switching | 20 Gbps switching capacity, 14.88 mpps forwarding rate, 16,000 MAC entries |
Security | 802.1X, RADIUS, MAB, port security, DHCP snooping, IPv4 ACLs, RBAC, SSO |
Mounting Options | Wall, utility board, desktop mount, Kensington lock slot included |
Power Input | 100–240V AC, 47–63 Hz, external PSU (MS120-8/LP) |
Power Consumption | 5W – 161W |
Performance | Jumbo frame (9578 bytes), 802.3ad link aggregation, IGMP snooping, VLANs (4094), QoS |
Dashboard Features | Email/SMS alerts, usage stats, config logs, cable testing, topology view |
General
- TypesManaged
- Switching Capacity20 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports8
- No. Of SFP Ports1
- Rack MountingYes
