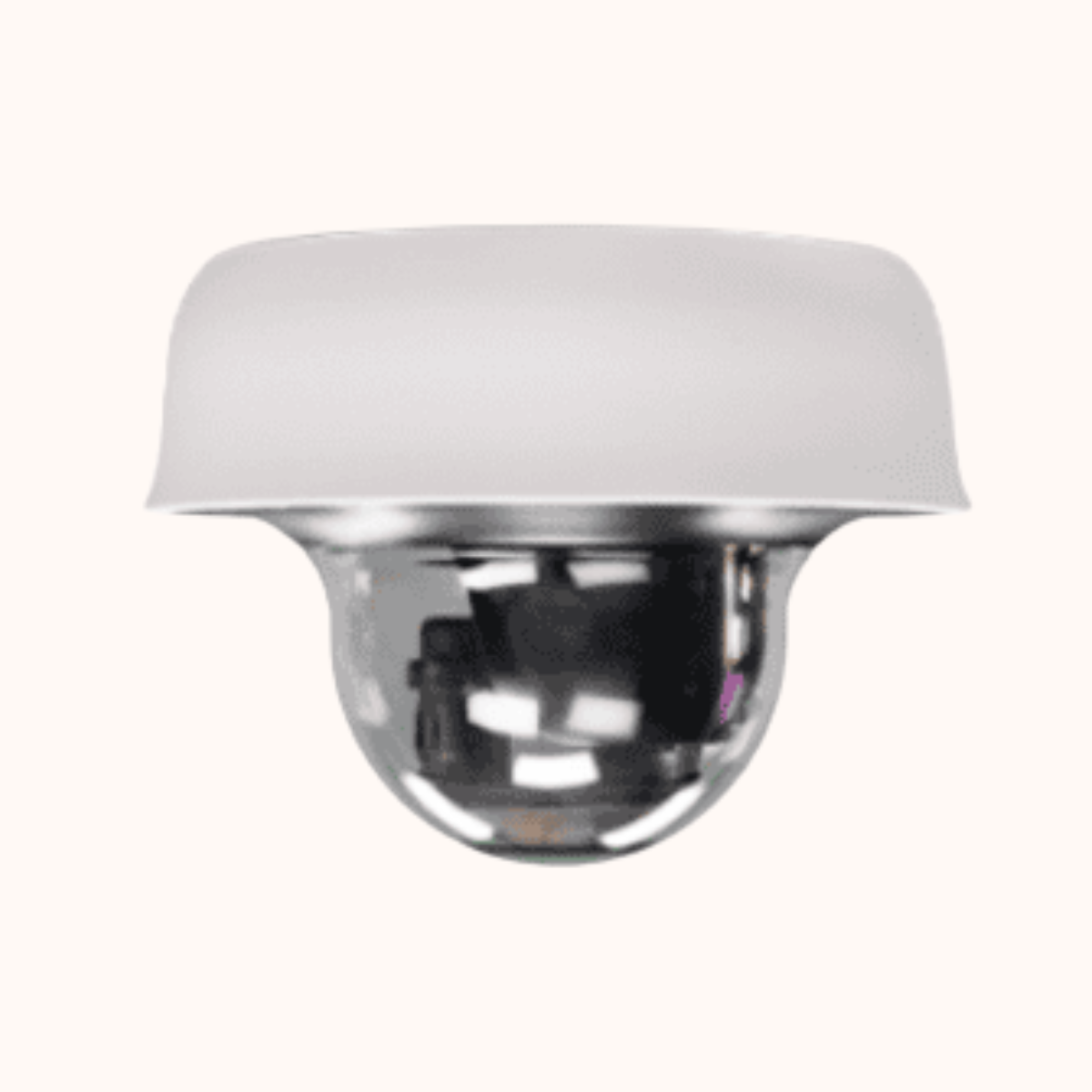

Cisco Meraki Outdoor wide-angle fixed lens mini dome camera - MV63
Category | Specification / Feature |
|---|---|
Design & Build | Fixed lens mini-dome camera with compact form factor and IK10+ & IP67 ratings |
Video Quality | 4MP Smart Codec recording with up to 4K resolution and IR illumination up to 20 m (66 ft) |
Analytics & AI | Built-in analytics: motion search, heatmaps, recap; intelligent object detection via ML |
Security & Storage | Secure boot, signed firmware, 256GB SSD, cloud-augmented edge storage |
Category | Specification / Feature |
|---|---|
Camera | 1/2.8″ 8.41MP CMOS sensor (3854x2176) |
Storage Options | MV63: 256 GB SSD, MV63X: 1 TB SSD |
Aperture & FOV | 3.3 mm focal length, f/2.0 aperture, 102° horizontal field of view |
Shutter & Night Vision | 1/30 to 1/32,000 sec shutter, Auto day/night capable |
Infrared Range | Built-in IR illuminators, effective up to 20 m (66 ft) |
Video Resolution | 4K (3840x2160), 4MP (2560x1440), 1080p (1920x1080) |
Frame Rate | Up to 15fps (4K), up to 24fps (4MP/1080p) |
Video Codec | H.264 Smart Codec encoding |
Dynamic Range | High Dynamic Range (HDR) supported |
Storage Type | Cloud augmented edge storage (video local, metadata in cloud) |
Retention | Optimized retention via scheduling and motion-based policies |
Streaming | Native browser playback; Cloud proxy supports remote streaming |
Audio | Audio recording supported with 3 built-in microphones |
General
- Placement SupportedOutdoor
- Case TypeDome
- Megapixel (Approx.)8 MP
- AudioBuilt-ln Microphone
