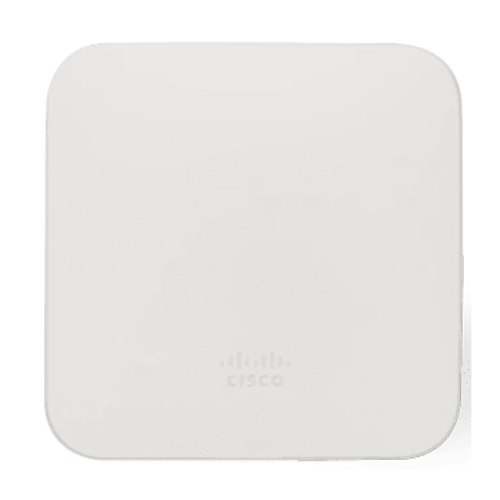

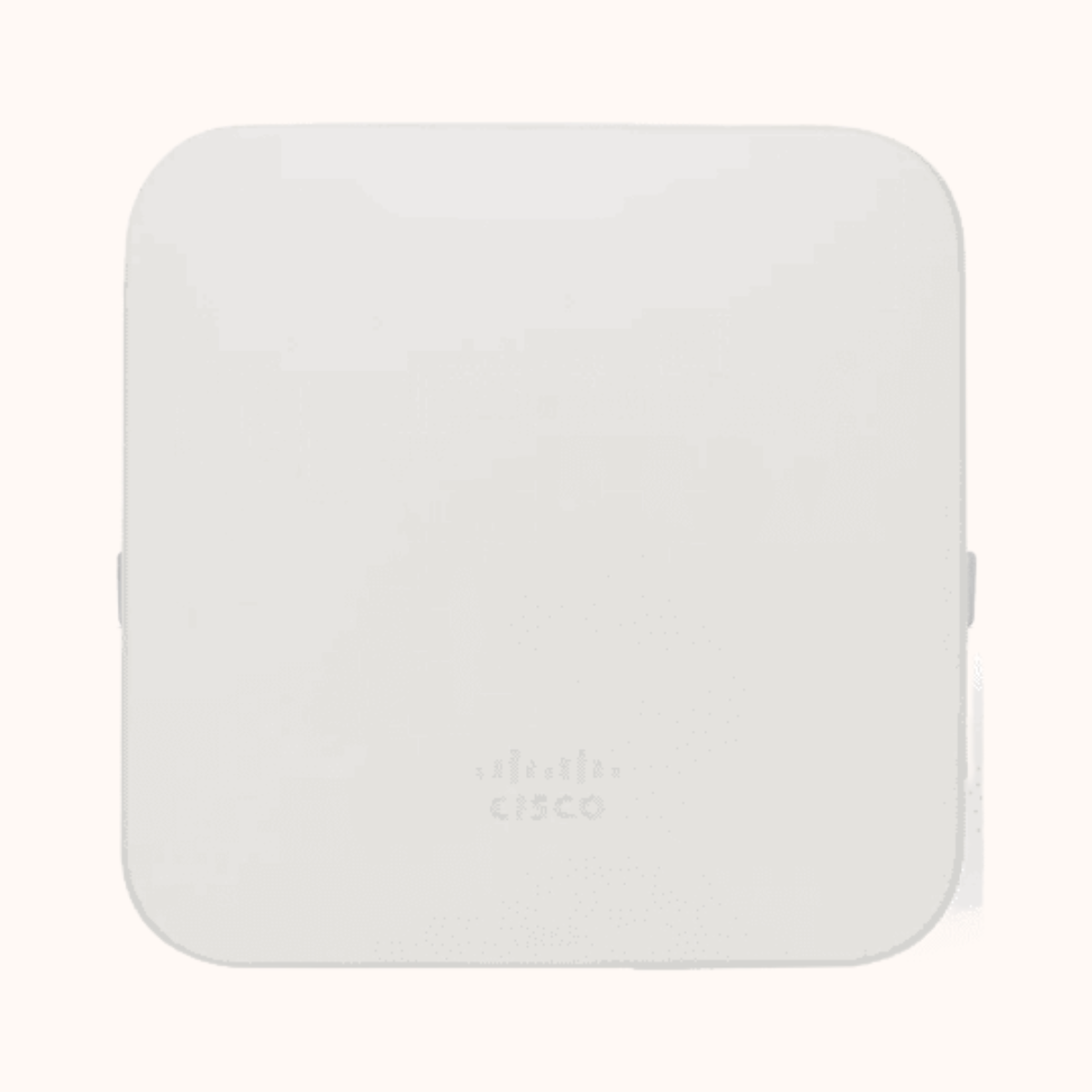

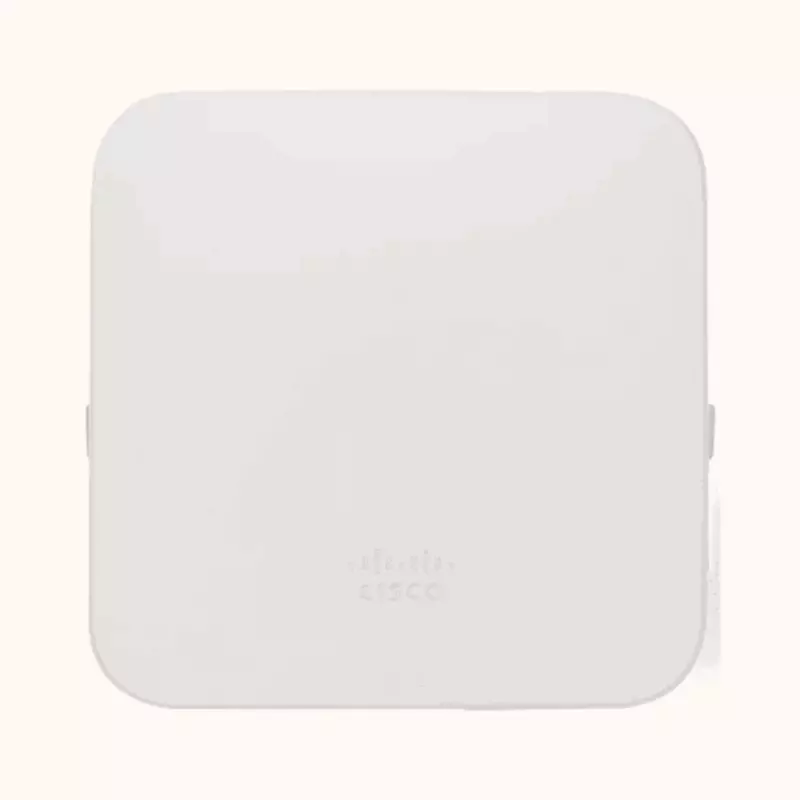

Cisco Meraki Router - MG51
Category | Specification / Feature |
|---|---|
Connectivity | Built-in 5G Sub-6GHz with CAT20 LTE failover and dual SIM support |
Power & Design | Small form factor, PoE+ or DC powered, IP67 rated enclosure |
Routing Support | Supports two independent downstream router connections |
Cloud Management | Fully cloud-managed via Cisco Meraki Dashboard with API and zero-touch provisioning |
Remote Diagnostics | Email/SMS/push alerts, remote packet capture, cable/link failure testing, DM logs supported |
Category | Specification |
|---|---|
Dimensions (W × D × H) | 173 × 173 × 36.5 mm |
Weight | 560 g |
Power Supply | 12V/1A or 48–57V DC @ 0.35A |
Power Consumption | 16W Maximum (PoE 802.3at) |
Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
Humidity | 5% to 95% (non-condensing) |
Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
Product Category | 5G Sub-6GHz NSA + LTE CAT20 |
Max Wireless Throughput (Passthrough) | 2 Gbps (Down) / 300 Mbps (Up) |
Max Wireless Throughput (NAT) | 1.5 Gbps (Down) / 300 Mbps (Up) |
Antennas | Internal |
LAN Interfaces (Dedicated) | 1 × 2.5 GbE RJ45 |
LAN Interfaces (Convertible) | 1 × Convertible LAN/WAN 2.5 GbE RJ45 |
Total LAN Ports | 2 × 2.5 GbE |
SIM Slots | 2 × Nano SIM (4FF) |
WAN Interface | 1 × 5G NSA Sub-6 CAT20 LTE Cellular Modem |
MTBF (at 25°C) | 1,663,492 hours |
Included in the Box | - 1 × MG51-HW - Mounting plate and screw set |
General
- Uses For ProductBusiness
