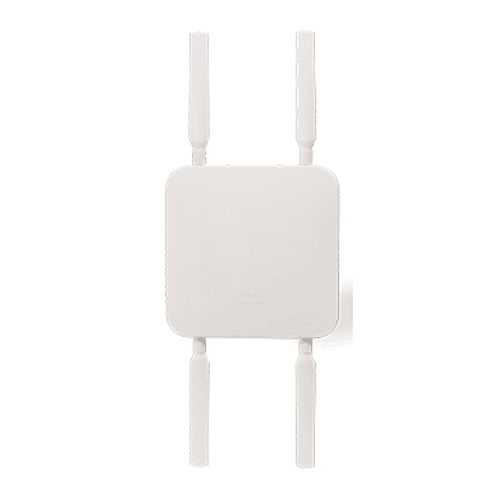

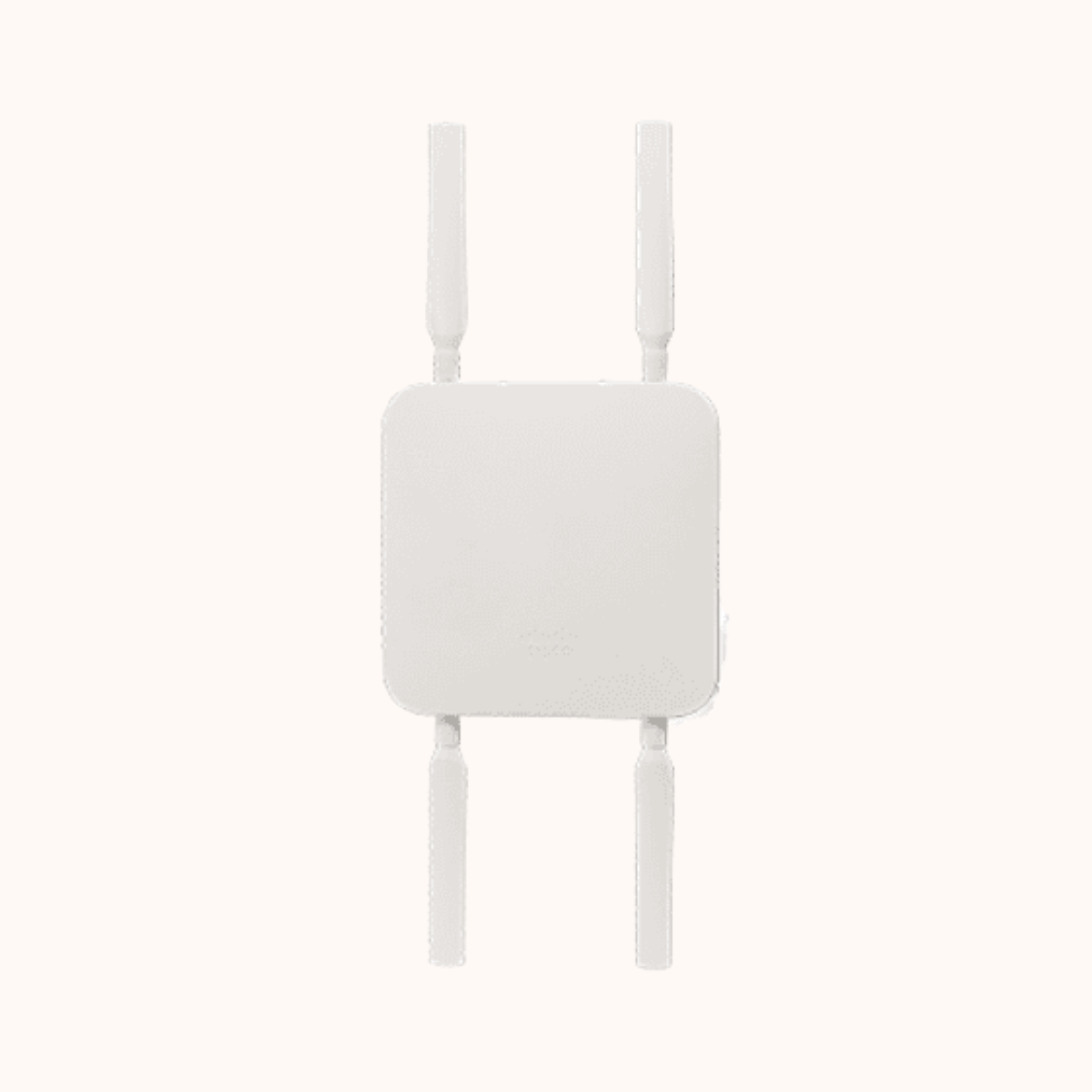

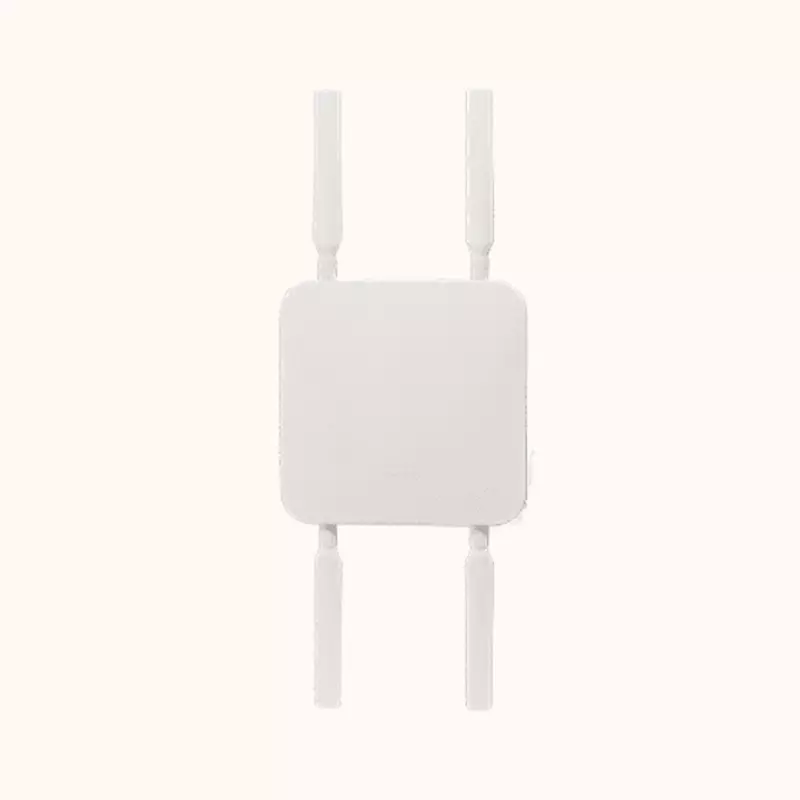

Cisco Meraki Router - MG51E
Category | Specification / Feature |
|---|---|
Connectivity | Built-in 5G Sub-6GHz with CAT20 LTE failover, dual SIM support |
Routing Support | Supports two independent downstream router connections |
Power & Durability | Compact form factor, PoE+ or DC powered, IP67 rated enclosure |
Cloud Management | Fully managed via Cisco Meraki Dashboard with auto firmware updates and API integration |
Diagnostics & Alerts | Remote packet capture, email/SMS/push alerts, link failure detection & DM log access |
Category | Specification |
|---|---|
Dimensions (W × D × H) | 173 × 173 × 36.5 mm |
Weight | 717 g |
Power Supply | 12V/1A or 48–57V DC @ 0.35A |
Power Consumption | 16W Maximum (PoE 802.3at) |
Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
Humidity | 5% to 95% non-condensing |
Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
Product Category | 5G Sub-6GHz NSA + LTE CAT20 |
Max Data Rate (Passthrough) | 2 Gbps (Down) / 300 Mbps (Up) |
Max Data Rate (NAT) | 1.5 Gbps (Down) / 300 Mbps (Up) |
Antennas | Dipole antennas (included), optional patch antenna |
LAN Interfaces (Dedicated) | 1 × 2.5 GbE RJ45 |
LAN Interfaces (Convertible) | 1 × Convertible LAN/WAN 2.5 GbE RJ45 |
Total LAN Ports | 2 × 2.5 GbE |
SIM Slots | 2 × Nano SIM (4FF) |
WAN Interface | 1 × 5G NSA Sub-6 CAT20 LTE Cellular Modem |
MTBF (at 25°C) | 1,663,492 hours |
Included in the Box | - 1 × MG51E-HW - Mounting plate and screw set - 4 × Dipole antennas |
General
- Uses For ProductBusiness
- Connectivity TypeWireless
Features
- Antenna TypeInternal
