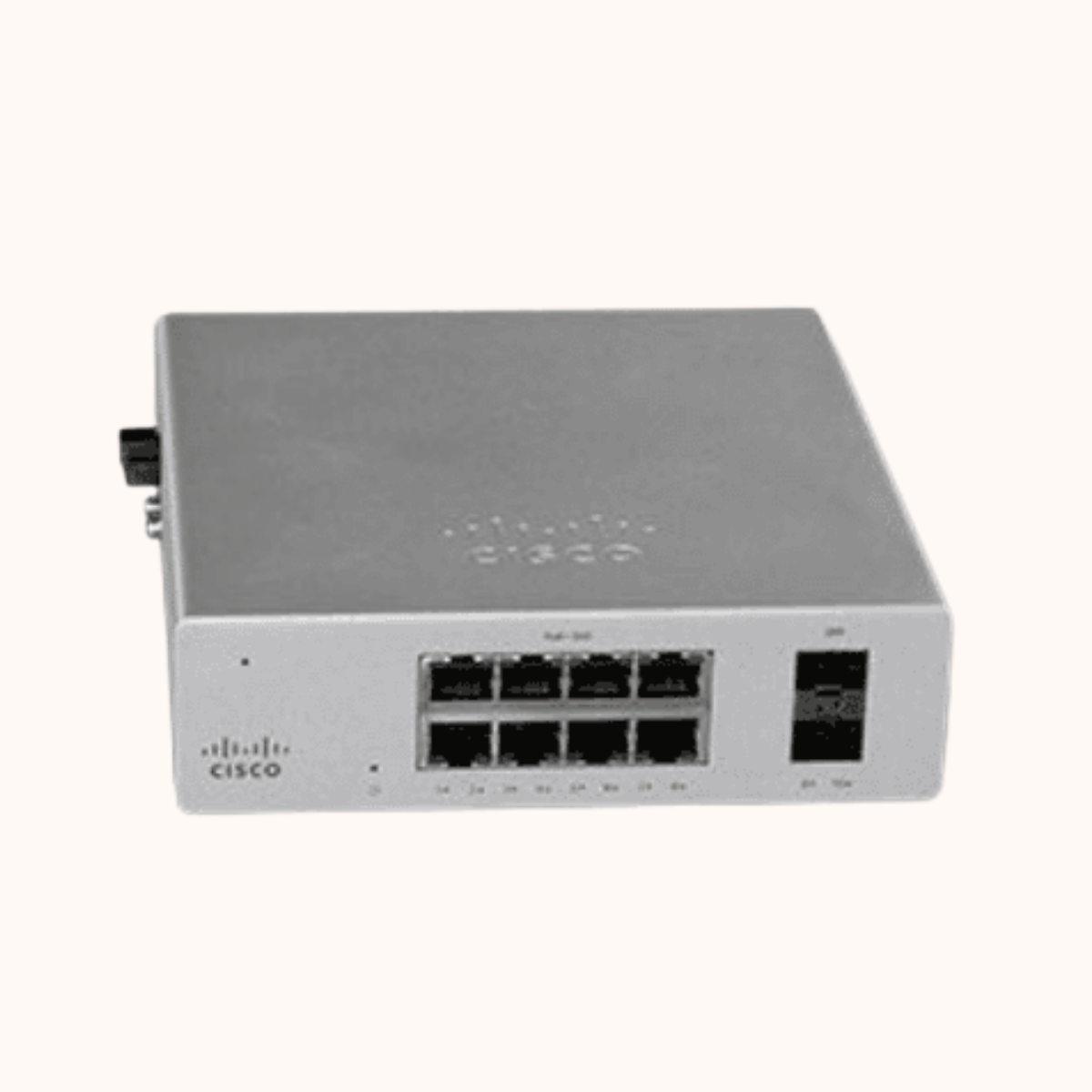

Cisco Meraki Switch-MS130R-8P
Feature | Description |
|---|---|
Terminal Block Adapter | Included |
AC Adapter | Included |
Surge Protection | 6kV surge protection |
Grounding | Protective ground connection provided |
Feature | Description |
|---|---|
1GbE RJ45 Ports | 8 |
1GbE SFP Ports | 2 |
Dedicated Mgmt Interface | Not available |
PoE Type | 802.3bt |
PoE Port Budget | 30W per port |
PoE Switch Budget | 240W total |
Power Input | 50–54VDC, 5.6A |
Power Load (Idle/Max) | 12W / 257W |
Power Consumption | 12W – 257W |
Operating Temperature | Refer to Thermal and PoE specifications section |
Storage Temperature | -40°F to 185°F / -40°C to 85°C |
Humidity | 5% to 95% |
Mounting Options | Desktop, Wall mount, DIN rail |
Switching Capacity | 20 Gbps |
Power Supply | External AC Adapter or DIN rail AC power supply |
Fan Operation | Fanless |
Dimensions (H × W × D) | 1.75 × 6.18 × 6.69 in (4.4 × 15.7 × 17 cm) |
Weight | 2.12 lb (0.96 kg) |
General
- Switching Capacity20 Gbit/s
- No. Of SFP Ports2
- No. Of RJ45 Ports8
- Rack MountingYes
